SDI Video Capture Cards

Video Capture

Displaying of 73 items

View All

SC5A0N1 MC SDI mPCIe HD30 SDI Loop Through Capture Card with Hardware Compression

Yuan

mPCIe HD30 SDI Loop Through Capture Card with Hardware Compression

SC5A0N1 MC SDI

mPCIe HD30 SDI Loop Through Capture Card with Hardware Compression

View SC5A0N1 MC SDI

SC5A0N1 MC SDI

mPCIe HD30 SDI Loop Through Capture Card with Hardware Compression

Host: Mini PCIe
Simultaneous Video Inputs: 1
Video Input: 1x SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Recording Mode: Hardware Compression
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

SC400N1 MC AIO mPCIe 10-Bit Full HD 60FPS HDMI/SDI Capture Card

Yuan

mPCIe 10-Bit Full HD 60FPS HDMI/SDI Capture Card

SC400N1 MC AIO

mPCIe 10-Bit Full HD 60FPS HDMI/SDI Capture Card

View SC400N1 MC AIO

SC400N1 MC AIO

mPCIe 10-Bit Full HD 60FPS HDMI/SDI Capture Card

Host: Mini PCIe
Simultaneous Video Inputs: 1
Video Input: 1x HDMI, 1x SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

SC400N1 MC SDI mPCIe 10-Bit 3G-SDI Frame Grabber with SDI Loop Through

Yuan

mPCIe 10-Bit 3G-SDI Frame Grabber with SDI Loop Through

SC400N1 MC SDI

mPCIe 10-Bit 3G-SDI Frame Grabber with SDI Loop Through

View SC400N1 MC SDI

SC400N1 MC SDI

mPCIe 10-Bit 3G-SDI Frame Grabber with SDI Loop Through

Host: Mini PCIe
Simultaneous Video Inputs: 1
Video Input: 1x 3G-SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

SC700N1 MC SDI mPCIe 10-Bit 3G-SDI Video Capture Card with SDI Loop Through

Yuan

mPCIe 10-Bit 3G-SDI Video Capture Card with SDI Loop Through

SC700N1 MC SDI

mPCIe 10-Bit 3G-SDI Video Capture Card with SDI Loop Through

View SC700N1 MC SDI

SC700N1 MC SDI

mPCIe 10-Bit 3G-SDI Video Capture Card with SDI Loop Through

Host: Mini PCIe
Simultaneous Video Inputs: 1
Video Input: 1x 3G-SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

SC550N1 MC AIO mPCIe 1-Ch HDMI/SDI All-In-One Video Capture Card

Yuan

mPCIe 1-Ch HDMI/SDI All-In-One Video Capture Card

SC550N1 MC AIO

mPCIe 1-Ch HDMI/SDI All-In-One Video Capture Card

View SC550N1 MC AIO

SC550N1 MC AIO

mPCIe 1-Ch HDMI/SDI All-In-One Video Capture Card

Host: Mini PCIe
Simultaneous Video Inputs: 1
Video Input: 1x HDMI, 1x SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

SC550N1 MC SDI mPCIe 3G-SDI Frame Grabber with Loop Through

Yuan

mPCIe 3G-SDI Frame Grabber with Loop Through

SC550N1 MC SDI

mPCIe 3G-SDI Frame Grabber with Loop Through

View SC550N1 MC SDI

SC550N1 MC SDI

mPCIe 3G-SDI Frame Grabber with Loop Through

Host: Mini PCIe
Simultaneous Video Inputs: 1
Video Input: 1x 3G-SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

SC542N1 MC SDI Mini PCIe 3G-SDI Capture Card with Loop Through

Yuan

Mini PCIe 3G-SDI Capture Card with Loop Through

SC542N1 MC SDI

Mini PCIe 3G-SDI Capture Card with Loop Through

View SC542N1 MC SDI

SC542N1 MC SDI

Mini PCIe 3G-SDI Capture Card with Loop Through

Host: Mini PCIe
Simultaneous Video Inputs: 1
Video Input: 1x SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

SC540N1 MC SDI mPCIe HD SDI Capture Card with Loop Through

Yuan

mPCIe HD SDI Capture Card with Loop Through

SC540N1 MC SDI

mPCIe HD SDI Capture Card with Loop Through

View SC540N1 MC SDI

SC540N1 MC SDI

mPCIe HD SDI Capture Card with Loop Through

Host: Mini PCIe
Simultaneous Video Inputs: 1
Video Input: 1x SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

SC550N4 M2 SDI M2 4-ch 3G-SDI Capture Card with 4-ch SDI Audio Input

Yuan

M2 4-ch 3G-SDI Capture Card with 4-ch SDI Audio Input

SC550N4 M2 SDI

M2 4-ch 3G-SDI Capture Card with 4-ch SDI Audio Input

View SC550N4 M2 SDI

SC550N4 M2 SDI

M2 4-ch 3G-SDI Capture Card with 4-ch SDI Audio Input

Host: M.2 [2280, B-Key/M-Key]
Simultaneous Video Inputs: 4
Video Input: 4x 3G-SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

SC550N2 M2 SDI M2 2-ch 3G-SDI Capture Card with 2-ch SDI Audio Input

Yuan

M2 2-ch 3G-SDI Capture Card with 2-ch SDI Audio Input

SC550N2 M2 SDI

M2 2-ch 3G-SDI Capture Card with 2-ch SDI Audio Input

View SC550N2 M2 SDI

SC550N2 M2 SDI

M2 2-ch 3G-SDI Capture Card with 2-ch SDI Audio Input

Host: M.2 [2280, B-Key/M-Key]
Simultaneous Video Inputs: 2
Video Input: 2x 3G-SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

SC550N1 M2 SDI M2 3G-SDI Capture Card with Software Compression

Yuan

M2 3G-SDI Capture Card with Software Compression

SC550N1 M2 SDI

M2 3G-SDI Capture Card with Software Compression

View SC550N1 M2 SDI

SC550N1 M2 SDI

M2 3G-SDI Capture Card with Software Compression

Host: M.2 [2260, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x 3G-SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

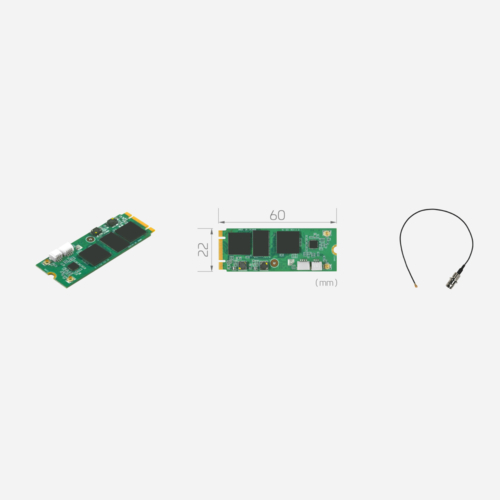

SC540N1 M2 SDI M2 HD SDI Capture Card with Loop Through

Yuan

M2 HD SDI Capture Card with Loop Through

SC540N1 M2 SDI

M2 HD SDI Capture Card with Loop Through

View SC540N1 M2 SDI

SC540N1 M2 SDI

M2 HD SDI Capture Card with Loop Through

Host: M.2 [2260, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Displaying of 73 items
