HDMI Video Capture Cards

Video Capture

Displaying of 71 items
View All
UB570 PRO AIO USB3 1080P60 SDI+AIO Frame Grabber

Yuan

USB3 1080P60 SDI+AIO Frame Grabber

UB570 PRO AIO

USB3 1080P60 SDI+AIO Frame Grabber

UB570 PRO AIO

USB3 1080P60 SDI+AIO Frame Grabber

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x Composite, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Color Formats: YUY2
UB570G PRO HDMI USB3 HDMI Frame Grabber with Loop Through

Yuan

USB3 HDMI Frame Grabber with Loop Through

UB570G PRO HDMI

USB3 HDMI Frame Grabber with Loop Through

UB570G PRO HDMI

USB3 HDMI Frame Grabber with Loop Through

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Video Output: 1x HDMI
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Color Formats: YUY2
UB575 AIO USB3 SDI+AIO 1080P60 Capture Device

Yuan

USB3 SDI+AIO 1080P60 Capture Device

UB575 AIO

USB3 SDI+AIO 1080P60 Capture Device

View UB575 AIO

UB575 AIO

USB3 SDI+AIO 1080P60 Capture Device

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x Composite, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Color Formats: NV12, YUY2
SC720N4 HDMI2.0 PCIe 4-ch 10-Bit 4K60 HDMI2.0 Frame Grabber

Yuan

PCIe 4-ch 10-Bit 4K60 HDMI2.0 Frame Grabber

SC720N4 HDMI2.0

PCIe 4-ch 10-Bit 4K60 HDMI2.0 Frame Grabber

SC720N4 HDMI2.0

PCIe 4-ch 10-Bit 4K60 HDMI2.0 Frame Grabber

  • Host: PCIe [x8, Gen2]
  • Simultaneous Video Inputs: 4
  • Video Input: 4x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
SC710N2-L HDMI2.0 PCIe 2-ch 4K60 10-Bit HDM2.0 Video Capture Card

Yuan

PCIe 2-ch 4K60 10-Bit HDM2.0 Video Capture Card

SC710N2-L HDMI2.0

PCIe 2-ch 4K60 10-Bit HDM2.0 Video Capture Card

SC710N2-L HDMI2.0

PCIe 2-ch 4K60 10-Bit HDM2.0 Video Capture Card

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 2
  • Video Input: 2x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
SC710N1-L 12G-SDI+HDMI2.0 PCIe 10-Bit HDR 4K60 12G-SDI/HDMI2.0 Frame Grabber

Yuan

PCIe 10-Bit HDR 4K60 12G-SDI/HDMI2.0 Frame Grabber

SC710N1-L 12G-SDI+HDMI2.0

PCIe 10-Bit HDR 4K60 12G-SDI/HDMI2.0 Frame Grabber

SC710N1-L 12G-SDI+HDMI2.0

PCIe 10-Bit HDR 4K60 12G-SDI/HDMI2.0 Frame Grabber

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x 12G-SDI, 1x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
SC710N1-L HDMI2.0 PCIe 4:4:4 10-Bit HDR HDMI2.0 4K60 Frame Grabber with Loop Through

Yuan

PCIe 4:4:4 10-Bit HDR HDMI2.0 4K60 Frame Grabber with Loop Through

SC710N1-L HDMI2.0

PCIe 4:4:4 10-Bit HDR HDMI2.0 4K60 Frame Grabber with Loop Through

SC710N1-L HDMI2.0

PCIe 4:4:4 10-Bit HDR HDMI2.0 4K60 Frame Grabber with Loop Through

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Video Output: 1x HDMI2.0
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
SC710N1 HDV PCIe 10-Bit HDR 4K60 HDMI2.0/DVI-DL/DP1.2 Capture Card

Yuan

PCIe 10-Bit HDR 4K60 HDMI2.0/DVI-DL/DP1.2 Capture Card

SC710N1 HDV

PCIe 10-Bit HDR 4K60 HDMI2.0/DVI-DL/DP1.2 Capture Card

View SC710N1 HDV

SC710N1 HDV

PCIe 10-Bit HDR 4K60 HDMI2.0/DVI-DL/DP1.2 Capture Card

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x DP, 1x DVI-D, 1x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
SC410N4 HDMI PCIe 4-ch 10-Bit 4K30 HDMI Frame Grabber

Yuan

PCIe 4-ch 10-Bit 4K30 HDMI Frame Grabber

SC410N4 HDMI

PCIe 4-ch 10-Bit 4K30 HDMI Frame Grabber

View SC410N4 HDMI

SC410N4 HDMI

PCIe 4-ch 10-Bit 4K30 HDMI Frame Grabber

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 4
  • Video Input: 4x HDMI
  • Max Input Resolution: 4K30 [4096x2160p @ 30/25fps]
  • Max Video Capture Resolution: 4K30 [4096x2160p @ 30/25fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
SC5C0N8 HDMI PCIe 8-ch UXGA/1080P60 HDMI Frame Grabber with Hardware Encoder

Yuan

PCIe 8-ch UXGA/1080P60 HDMI Frame Grabber with Hardware Encoder

SC5C0N8 HDMI

PCIe 8-ch UXGA/1080P60 HDMI Frame Grabber with Hardware Encoder

View SC5C0N8 HDMI

SC5C0N8 HDMI

PCIe 8-ch UXGA/1080P60 HDMI Frame Grabber with Hardware Encoder

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 8
  • Video Input: 8x HDMI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
  • Recording Mode: Hardware Compression
  • Color Formats: NV12, RGB24, RGB32, YUY2, YV12
SC5C0N4 HDMI PCIe 4-ch UXGA/1080P60 HDMI Frame Grabber with Hardare Encoder

Yuan

PCIe 4-ch UXGA/1080P60 HDMI Frame Grabber with Hardare Encoder

SC5C0N4 HDMI

PCIe 4-ch UXGA/1080P60 HDMI Frame Grabber with Hardare Encoder

View SC5C0N4 HDMI

SC5C0N4 HDMI

PCIe 4-ch UXGA/1080P60 HDMI Frame Grabber with Hardare Encoder

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 4
  • Video Input: 4x HDMI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
  • Recording Mode: Hardware Compression
  • Color Formats: NV12, RGB24, RGB32, YUY2, YV12

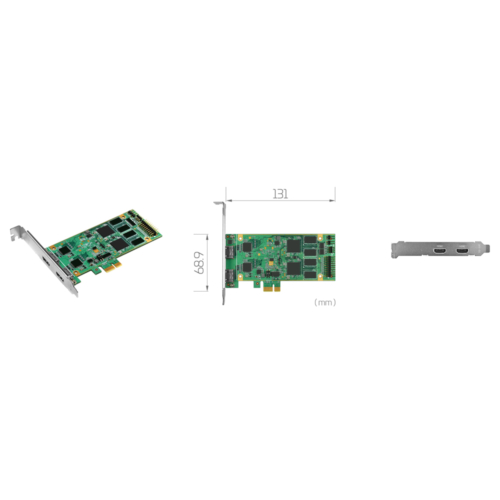

SC5C0N2-L HDMI PCIe 2-ch UXGA/HD60 HDMI Capture Card with Hardware Compression

Yuan

PCIe 2-ch UXGA/HD60 HDMI Capture Card with Hardware Compression

SC5C0N2-L HDMI

PCIe 2-ch UXGA/HD60 HDMI Capture Card with Hardware Compression

SC5C0N2-L HDMI

PCIe 2-ch UXGA/HD60 HDMI Capture Card with Hardware Compression

  • Host: PCIe [x1, Gen2]
  • Simultaneous Video Inputs: 2
  • Video Input: 2x HDMI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
  • Recording Mode: Hardware Compression
  • Color Formats: NV12, RGB24, RGB32, YUY2, YV12
Displaying of 71 items

Need Help Choosing HDMI Video Capture Cards?

Tell us about your application and a member of the team will get right back to you.
