Things Embedded are an official Winmate UK distributor and can supply the R08IB3S-VMU1 fully configured and imaged.
| Overview | |
|---|---|

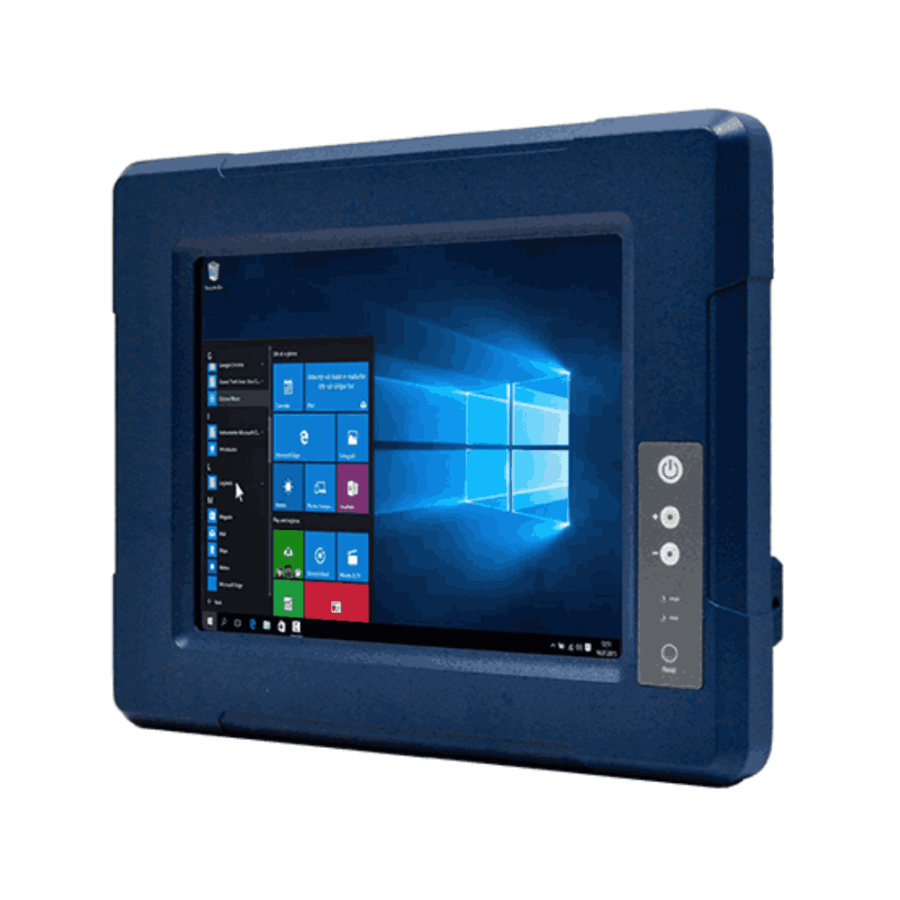

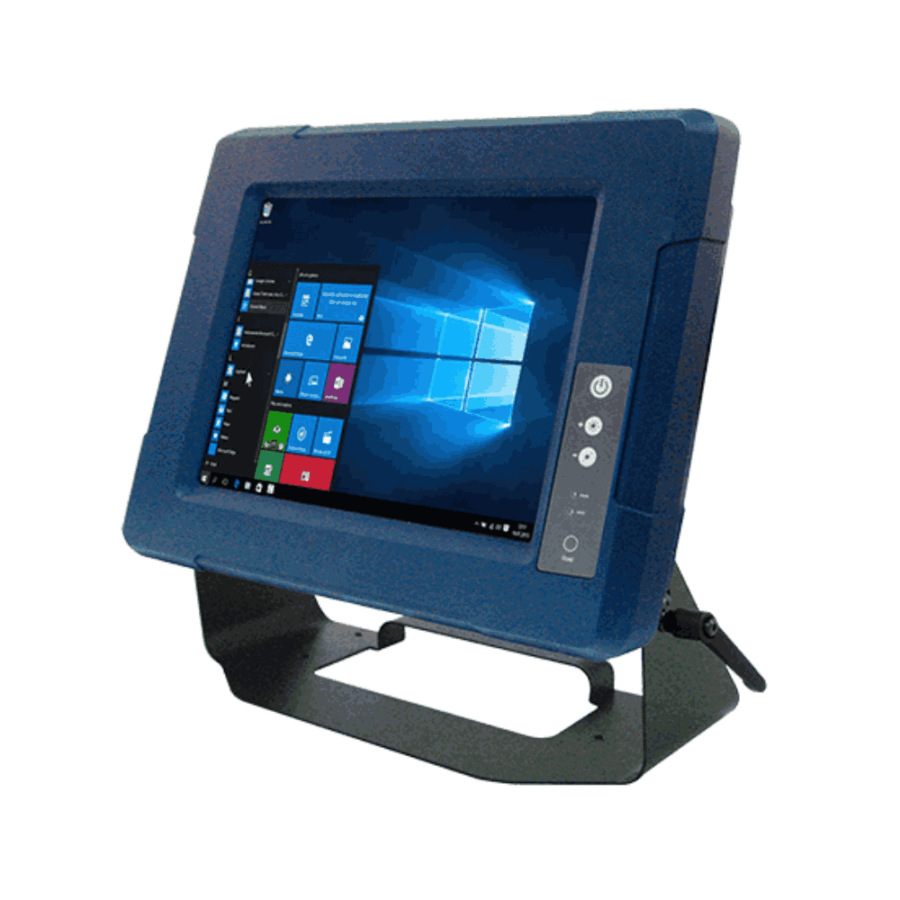

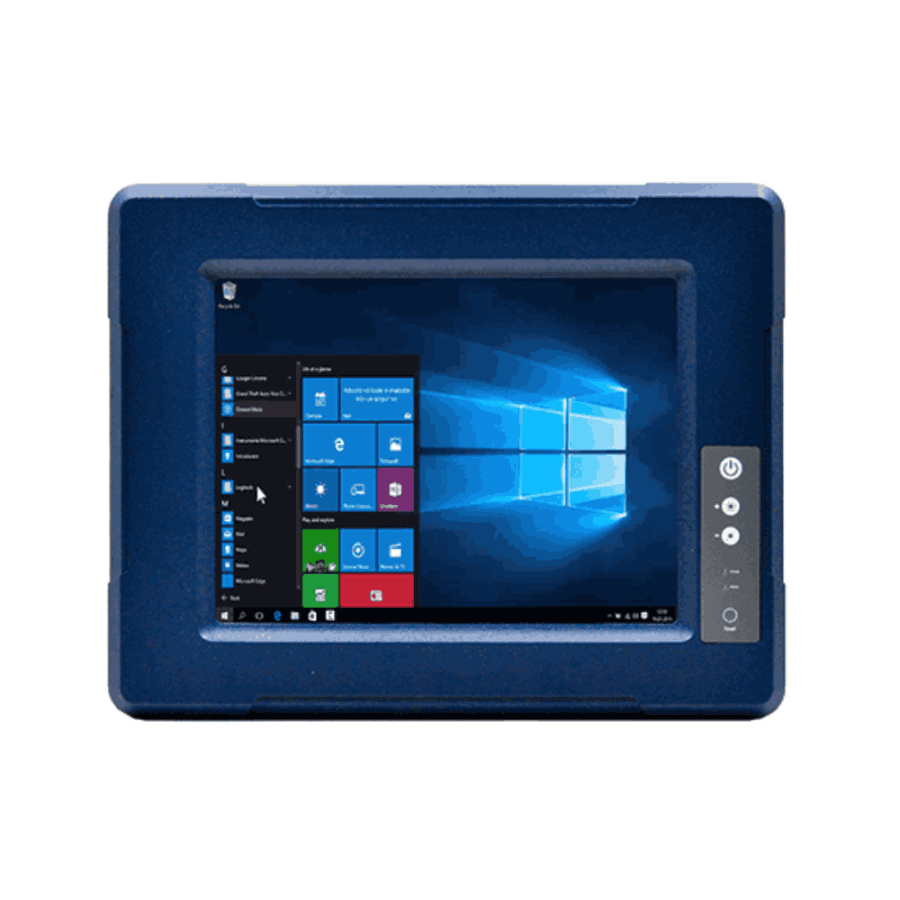

| Brand & Model | Winmate R08IB3S-VMU1 |
| 8.4" Vehicle Mount Rugged Panel PC with Intel Celeron N2930 | |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 8.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass |
| Touch Controller | Optional Resistive Touch |
| Brightness | 600 Nits |
| 150° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 600:1 |
| Performance | |
| Processor Series | Celeron N Series Bay Trail |
| Processor Models | N2930 |
| Memory | 1x DDR3L 1600MHz SO-DIMM Slot, 8GB |
| Operating System | Linux Ubuntu 20.04 Windows 10 |
| Graphics | |
| Display Outputs | 1x Optional HDMI |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| Ethernet Description | 2 x GbE LAN [RJ45] |
| USB | 2x USB Ports |
| 1 x USB 2.0 [Type A] 1 x USB 3.2 Gen 2 [Type A] |
|
| Serial | 2x Serial Ports |
| 1 x RS232 [DB9] 1 x RS232/422/485 [DB9] |
|
| Expansion | |
| mPCIe | 1x mPCIe Slots |
| 1 x mPCIe [SATA] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x mSATA |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Operating Temperature | -10°C to 55°C [14°F to 131°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 277mm x 220mm x 60mm (10.91" x 8.66" x 2.36") |
Tell us about your application and a member of the team will get right back to you.
