DVI Capture Cards

Video Capture

Displaying of 44 items
View All

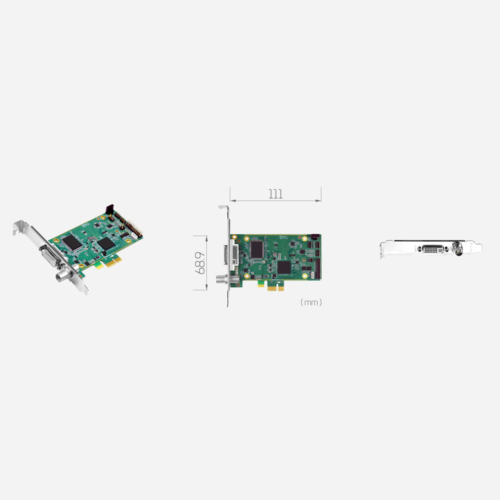

SC400N1-L AIO Low Profile PCIe 10-bit 1080P60 AIO Video Capture Card

Yuan

Low Profile PCIe 10-bit 1080P60 AIO Video Capture Card

SC400N1-L AIO

Low Profile PCIe 10-bit 1080P60 AIO Video Capture Card

Available in 2 variations

SC400N1-L AIO

Available in 2 variations

  • Host: PCIe [x1, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x DVI-I, 1x SDI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
  • Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
SC400N1 AIO PCIe 10-bit High Definition 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Capture

Yuan

PCIe 10-bit High Definition 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Capture

SC400N1 AIO

PCIe 10-bit High Definition 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Capture

View SC400N1 AIO

SC400N1 AIO

PCIe 10-bit High Definition 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Capture

  • Host: PCIe [x1, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x CVBS, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
  • Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
SC700N1 AIO PCIe 10-bit 1080P60 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Frame Grabber

Yuan

PCIe 10-bit 1080P60 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Frame Grabber

SC700N1 AIO

PCIe 10-bit 1080P60 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Frame Grabber

View SC700N1 AIO

SC700N1 AIO

PCIe 10-bit 1080P60 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Frame Grabber

  • Host: PCIe [x1, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x CVBS, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
  • Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
SC700N-L AIO Low Profile PCIe 10-bit 1080P60 AIO Frame Grabber

Yuan

Low Profile PCIe 10-bit 1080P60 AIO Frame Grabber

SC700N-L AIO

Low Profile PCIe 10-bit 1080P60 AIO Frame Grabber

View SC700N-L AIO

SC700N-L AIO

Low Profile PCIe 10-bit 1080P60 AIO Frame Grabber

  • Host: PCIe [x1, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x DVI-I, 1x SDI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
  • Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
SC700N1-L HDV PCIe 10-bit 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Input/Output Card

Yuan

PCIe 10-bit 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Input/Output Card

SC700N1-L HDV

PCIe 10-bit 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Input/Output Card

SC700N1-L HDV

PCIe 10-bit 3G-SDI/HDMI/DVI-I/YPbPr/CVBS/S-Video Input/Output Card

  • Host: PCIe [x1, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x CVBS, 1x DVI-I, 1x HDMI, 1x S-Video, 1x YPbPr
  • Max Input Resolution: HD30 [1920x1080p @ 30/25fps], HD60 [1920x1080p @ 60/50fps]
  • Video Output: 1x CVBS, 1x DVI-I, 1x S-Video, 1x YPbPr
  • Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps], HD60 [1920x1080p @ 60/50fps]
  • Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12

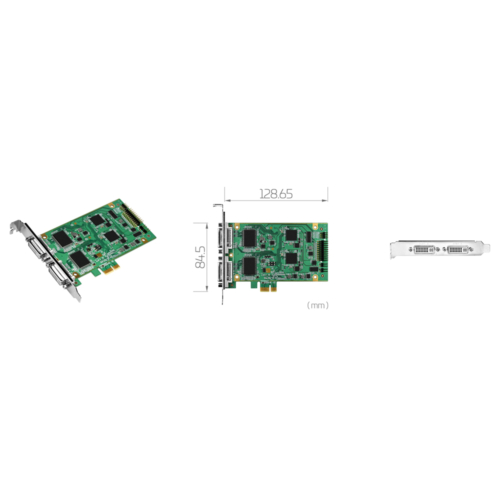

SC550N2 HDV Low Profile PCIe Dual Channel HDV Video Input/Output Card

Yuan

Low Profile PCIe Dual Channel HDV Video Input/Output Card

SC550N2 HDV

Low Profile PCIe Dual Channel HDV Video Input/Output Card

View SC550N2 HDV

SC550N2 HDV

Low Profile PCIe Dual Channel HDV Video Input/Output Card

  • Host: PCIe [x1, Gen2]
  • Simultaneous Video Inputs: 2
  • Video Input: 2x DVI-I
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
  • Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
SC550N1 PCIe HDMI/DVI-I/YPbPr/SDI/CVBS/S-Video UXGA/HD60 Frame Grabber

Yuan

PCIe HDMI/DVI-I/YPbPr/SDI/CVBS/S-Video UXGA/HD60 Frame Grabber

SC550N1

PCIe HDMI/DVI-I/YPbPr/SDI/CVBS/S-Video UXGA/HD60 Frame Grabber

View SC550N1

SC550N1

PCIe HDMI/DVI-I/YPbPr/SDI/CVBS/S-Video UXGA/HD60 Frame Grabber

  • Host: PCIe [x1, Gen1]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x CVBS, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
  • Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

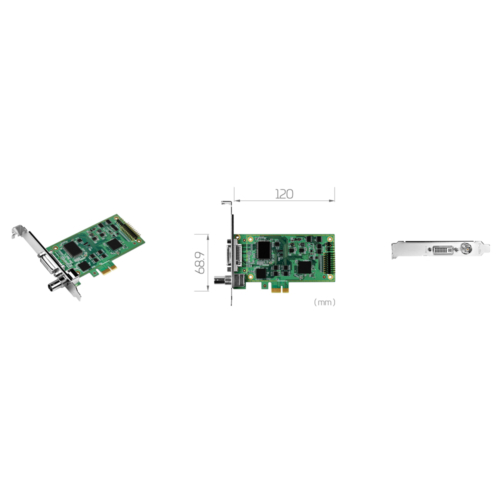

SC550N1-L AIO Low Profile PCIe 1080P60 DVI-I/SDI Video Frame Grabber

Yuan

Low Profile PCIe 1080P60 DVI-I/SDI Video Frame Grabber

SC550N1-L AIO

Low Profile PCIe 1080P60 DVI-I/SDI Video Frame Grabber

SC550N1-L AIO

Low Profile PCIe 1080P60 DVI-I/SDI Video Frame Grabber

  • Host: PCIe [x1, Gen1]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x DVI-I, 1x SDI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
  • Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

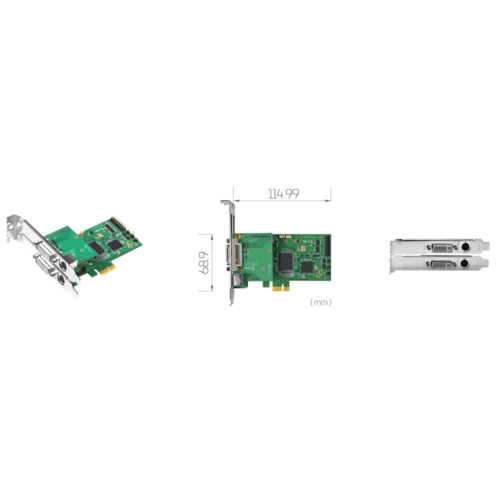

SC550N1-L HDV Low Profile PCIe UXGA/HD60 HDV Capture Card with Loop Video Output

Yuan

Low Profile PCIe UXGA/HD60 HDV Capture Card with Loop Video Output

SC550N1-L HDV

Low Profile PCIe UXGA/HD60 HDV Capture Card with Loop Video Output

SC550N1-L HDV

Low Profile PCIe UXGA/HD60 HDV Capture Card with Loop Video Output

  • Host: PCIe [x1, Gen1]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x CVBS, 1x DVI-I, 1x S-Video, 1x YPbPr
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Video Output: 1x CVBS, 1x DVI-I, 1x S-Video, 1x YPbPr
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
  • Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

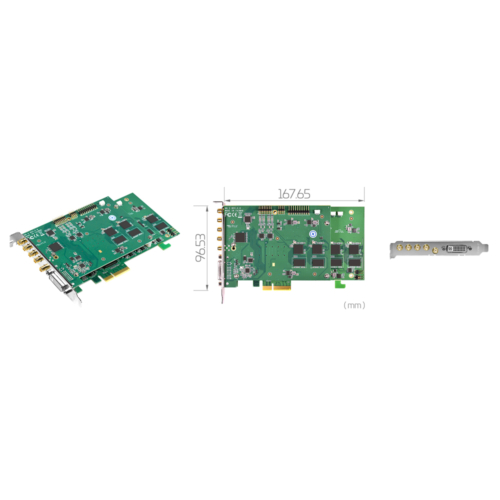

SC542N6 HYBRID PCIe 6-ch 1080P60 SDI/DVI Real Time Video Frame Grabber

Yuan

PCIe 6-ch 1080P60 SDI/DVI Real Time Video Frame Grabber

SC542N6 HYBRID

PCIe 6-ch 1080P60 SDI/DVI Real Time Video Frame Grabber

SC542N6 HYBRID

PCIe 6-ch 1080P60 SDI/DVI Real Time Video Frame Grabber

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 1, 5
  • Video Input: 1x DVI-I, 5x SDI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

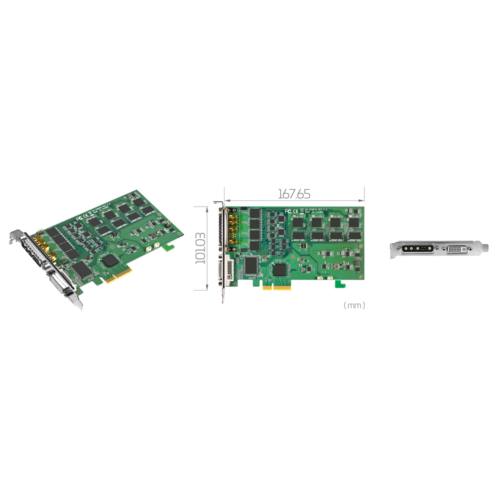

SC542N4 HYBRID PCIe 4-ch SDI/DVI-I UXGA/HD60 Real-Time Video Capture Card

Yuan

PCIe 4-ch SDI/DVI-I UXGA/HD60 Real-Time Video Capture Card

SC542N4 HYBRID

PCIe 4-ch SDI/DVI-I UXGA/HD60 Real-Time Video Capture Card

SC542N4 HYBRID

PCIe 4-ch SDI/DVI-I UXGA/HD60 Real-Time Video Capture Card

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 1, 4
  • Video Input: 1x DVI-I, 4x SDI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

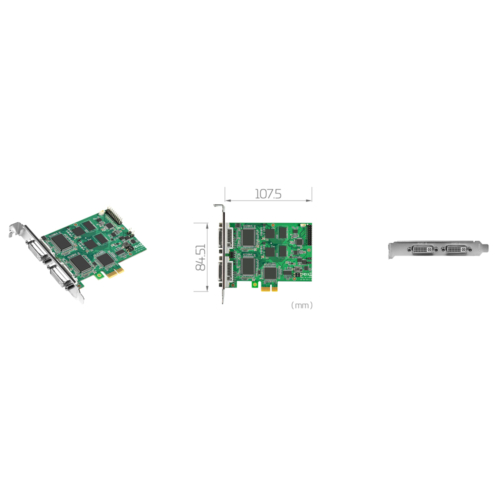

SC542N2 HDV PCIe Dual Channel DVI-I Frame Grabber with Software Compression

Yuan

PCIe Dual Channel DVI-I Frame Grabber with Software Compression

SC542N2 HDV

PCIe Dual Channel DVI-I Frame Grabber with Software Compression

View SC542N2 HDV

SC542N2 HDV

PCIe Dual Channel DVI-I Frame Grabber with Software Compression

  • Host: PCIe [x1, Gen2]
  • Simultaneous Video Inputs: 2
  • Video Input: 2x DVI-I
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
Displaying of 44 items
