X300
Things Embedded are an official Nexcom UK distributor and can supply the X300 fully configured and imaged.
Available in 2 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| Chipset |
| Operating System |
| Graphics |
| Number of GPUs |
| Integrated GPU |
| Graphics Family |
| Display Standards |
| Multi Display Support |
| 4K Support |
| Display Outputs |
| Display Port Type |
| Audio |
| Codec |
| Interface |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| GPIO |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| Power |
| Power Input |
| Power Support Modes |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Humidity |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| Nexcom X-300-H310 |
| 8th Gen Core i3/i5/i7 Intel Embedded Motherboard |
| 32GB |
| 2 |
| DDR4 |
|
Linux Windows |
|
8th Gen Coffee Lake 9th Gen Coffee Lake Intel Core |
|
8th Gen Coffee Lake 9th Gen Coffee Lake |
|
i3-8100 i3-8100T i3-9100TE i5-8500 i5-8500T i5-9500TE i7-8700 i7-8700T i7-9700TE i9-9900T |
| 2x DDR4 2400MHz SO-DIMM Slots, 32GB |
| Intel H310 |
| Linux |
| Single GPU Support |
| Intel UHD Series |
| Intel UHD Graphics |
|
Dual Channel LVDS HDMI 2.0 |
| Triple Display Support |
| 4K Display Support |
|
1x LVDS 2x HDMI |
|
HDMI LVDS |
| Realtek ALC3251, HD Audio |
|
Line-Out Mic-In |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i211AT Intel I219LM |
| 8x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 2.0 [Board] 4 x USB 3.0 [Type A] |
| 2x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
1 x RS232 [Board] 1 x RS232/422/485 [Board] |
| GPIO [4-in, 4-out] |
| 2x M.2 Expansion Slots |
|
1x M.2 E-Key [USB/PCIe] [2230] 1x M.2 M-Key [SATA] [2280] |
|
E-Key M-Key |
|
PCIe SATA USB |
| 2280 |
| Optional WiFi/Bluetooth |
| Wireless |
| 1 |
| M.2 SSD |
| 1x M.2 SSD |
| 12V DC [4-Pin] |
|
AT: PWR on Input ATX: Press Button to Power |
| Optional Heatsink |
| Heatsink |
| 0°C to 60°C [32°F to 147°F] |
| Standard Temperature |
| 0% - 95% (Non-condensing) |
|
CE FCC UKCA |
| 0.3 Kg (0.66 Lbs) |
| 170mm x 170mm x 0mm (6.69" x 6.69" x 0") |

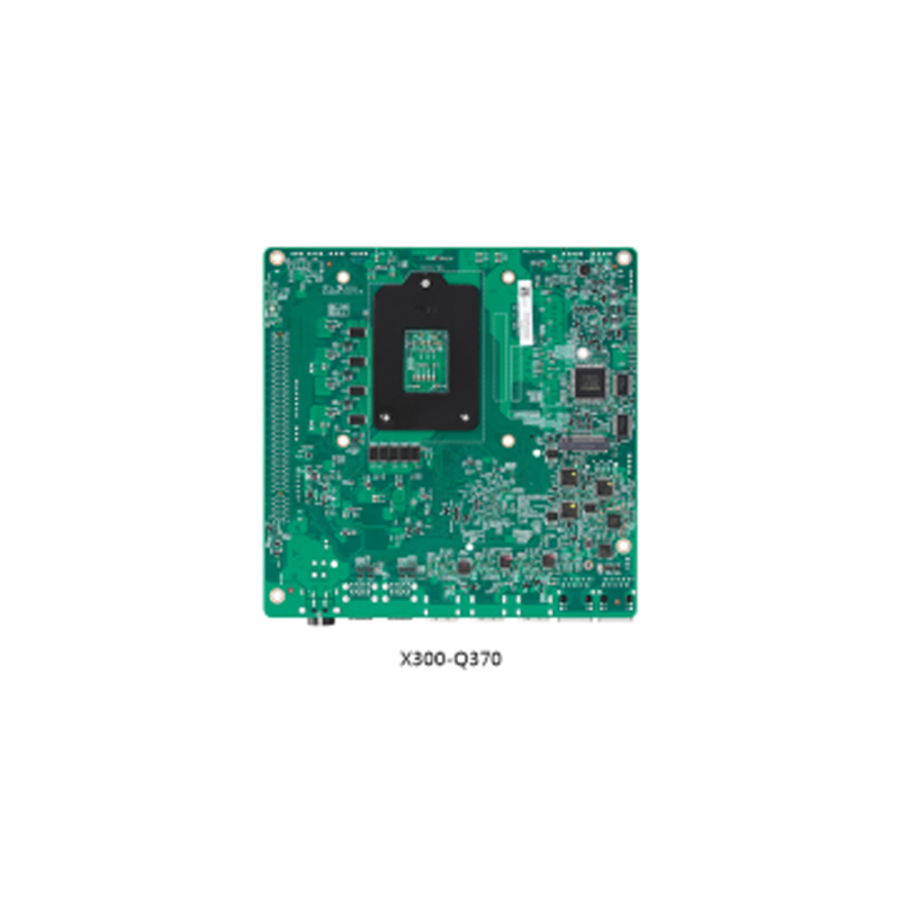

| Nexcom X-300-Q370 |
| i3/i5/i7 Coffee Lake Intel Industrial Motherboard |
| 32GB |
| 2 |
| DDR4 |
|
Linux Windows |
|
8th Gen Coffee Lake 9th Gen Coffee Lake Intel Core |
|
8th Gen Coffee Lake 9th Gen Coffee Lake |
|
i3-8100 i3-8100T i3-9100TE i5-8500 i5-8500T i5-9500TE i7-8700 i7-8700T i7-9700TE i9-9900T |
| 2x DDR4 2400MHz SO-DIMM Slots, 32GB |
| Intel Q370 |
| Linux |
| Single GPU Support |
| Intel UHD Series |
| Intel UHD Graphics |
| HDMI 2.0 |
| Triple Display Support |
| 4K Display Support |
| 3x HDMI |
| HDMI |
| Realtek ALC3251, HD Audio |
|
Line-Out Mic-In |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i211AT Intel I219LM |
| 10x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 3.0 [Type A] 6 x USB 2.0 [Board] |
| 2x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
1 x RS232 [Board] 1 x RS232/422/485 [Board] |
| GPIO [4-in, 4-out] |
| 2x M.2 Expansion Slots |
|
1x M.2 E-Key [USB/PCIe] [2230] 1x M.2 M-Key [PCIe x1/SATA] [2280] |
|
E-Key M-Key |
|
PCIe SATA USB |
| 2280 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
|
M.2 SSD SATA Port |
|
1x M.2 SSD 1x SATA Port |
| 12V DC [4-Pin] |
|
AT: PWR on Input ATX: Press Button to Power |
| Optional Heatsink |
| Heatsink |
| 0°C to 60°C [32°F to 147°F] |
| Standard Temperature |
| 0% - 95% (Non-condensing) |
|
CE FCC UKCA |
| 0.3 Kg (0.66 Lbs) |
| 170mm x 170mm x 0mm (6.69" x 6.69" x 0") |
