Intel Elkhart Lake SBCs

Intel Elkhart Lake Single Board Computers (SBCs) epitomize a new era in embedded computing, boasting powerful features and exceptional performance. These SBCs leverage Intel’s Elkhart Lake processor architecture, delivering remarkable processing capabilities and optimal power efficiency. With a notable 1.7x improvement in single-thread performance and 1.5x improvement in multi-thread performance over previous generations, our Elkhart Lake single board computers built with Atom X6000E, Pentium, and Celeron CPUs, effortlessly handle demanding tasks.

Boasting compact small form factors, low power consumption, and an array of robust features such as high speed connectivity or wide operating temperature components, our Elkhart Lake SBC solutions find their rightful place in a multitude of industrial applications at the edge, including automation, digital signage, and robotics.

Loading...

Performance

Graphics

I/O

Expansion

1
3
Apply Filter

Storage

Environmental Conditions

Displaying of 14 items
View All

NUC-J6412

Elkhart Lake J6412 Celeron NUC Motherboard

  • CPU: Celeron J Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10, Windows 11
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A], 2 x USB 3.2 Gen 2 [Type C]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12-19V DC [Barrel Connector], AC Power Supply Included
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC

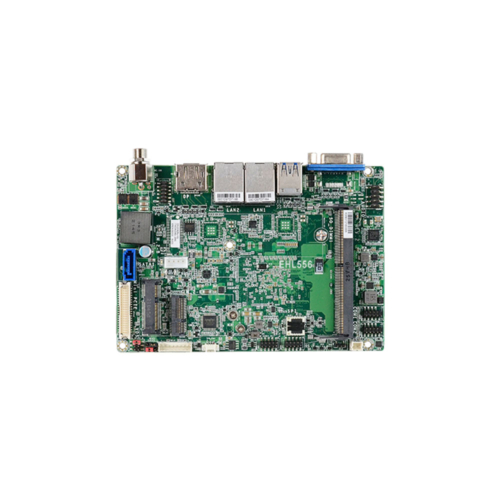

  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.2 Gen 2 [Type A], 4 x USB 2.0 [Board]
  • Serial: 1 x RS232 [Board], 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [SATA] [2280], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 9-36V DC [Barrel Connector]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC
Displaying of 14 items
