Displaying of 77 items
View All
R12IE3S-PMM2 12.1″ XGA Panel Mount Touch Computer with N6210 Elkhart Lake Celeron CPU

Winmate

12.1″ XGA Panel Mount Touch Computer with N6210 Elkhart Lake Celeron CPU

R12IE3S-PMM2

12.1″ XGA Panel Mount Touch Computer with N6210 Elkhart Lake Celeron CPU

R12IE3S-PMM2

12.1" XGA Panel Mount Touch Computer with N6210 Elkhart Lake Celeron CPU

  • Display: 12.1"[4:3, 1024 x 768, XGA]
  • Touch: Optional Resistive Touch
  • Brightness: 500
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Celeron N Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
  • OS: Linux Ubuntu 20.04, Windows 10, Windows 11
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

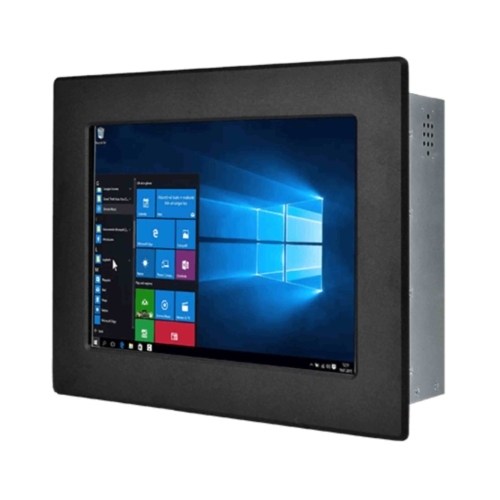

R10IE3S-PMT2 10.4″ XGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

Winmate

10.4″ XGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

R10IE3S-PMT2

10.4″ XGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

R10IE3S-PMT2

10.4" XGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

  • Display: 10.4"[4:3, 1024 x 768, XGA]
  • Touch: Optional Resistive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Celeron N Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
  • OS: Linux Ubuntu 20.04, Windows 10, Windows 11
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

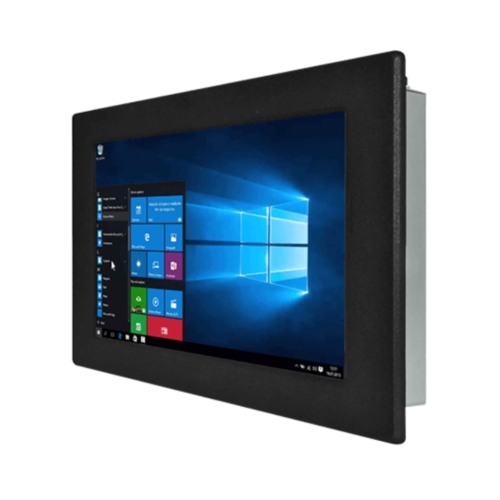

W10IE3S-PMH2 10.1″ WXGA Panel Mount Touch Computer with N6210 Elkhart Lake Celeron CPU

Winmate

10.1″ WXGA Panel Mount Touch Computer with N6210 Elkhart Lake Celeron CPU

W10IE3S-PMH2

10.1″ WXGA Panel Mount Touch Computer with N6210 Elkhart Lake Celeron CPU

W10IE3S-PMH2

10.1" WXGA Panel Mount Touch Computer with N6210 Elkhart Lake Celeron CPU

  • Display: 10.1"[5:3, 1280 x 800, WXGA]
  • Touch: Optional Resistive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: Celeron N Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
  • OS: Linux Ubuntu 20.04, Windows 10, Windows 11
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC
R08IE3S-PMU1 8.4″ SVGA Panel Mount Panel PC with N6210 Elkhart Lake Celeron CPU

Winmate

8.4″ SVGA Panel Mount Panel PC with N6210 Elkhart Lake Celeron CPU

R08IE3S-PMU1

8.4″ SVGA Panel Mount Panel PC with N6210 Elkhart Lake Celeron CPU

R08IE3S-PMU1

8.4" SVGA Panel Mount Panel PC with N6210 Elkhart Lake Celeron CPU

  • Display: 8.4"[4:3, 800 x 600, SVGA]
  • Touch: Optional Resistive Touch
  • Brightness: 600
  • Format: Standard
  • CPU: Celeron N Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
  • OS: Linux Ubuntu 20.04, Windows 10, Windows 11
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

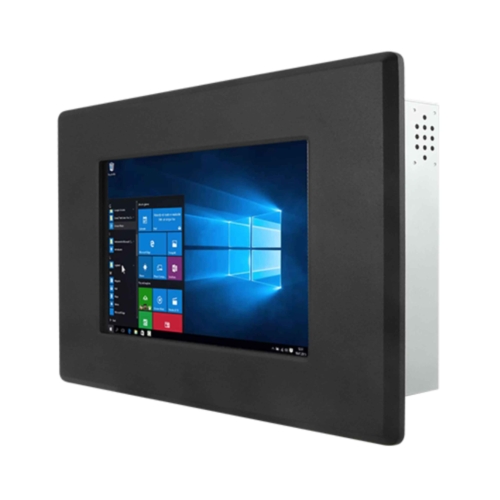

W07IE3S-PMT1 7″ WSVGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

Winmate

7″ WSVGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

W07IE3S-PMT1

7″ WSVGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

W07IE3S-PMT1

7" WSVGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

  • Display: 7"[17:10, 1024 x 600, WSVGA]
  • Touch: Optional Resistive Touch
  • Brightness: 320
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: Celeron N Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
  • OS: Linux Ubuntu 20.04, Windows 10, Windows 11
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

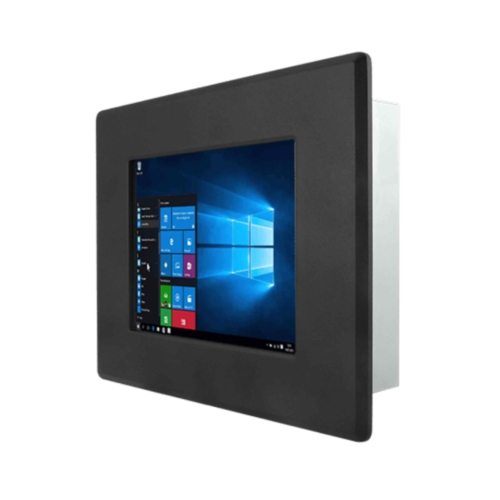

R06IE3S-PMA1 6.5″ VGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

Winmate

6.5″ VGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

R06IE3S-PMA1

6.5″ VGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

R06IE3S-PMA1

6.5" VGA Panel Mount Touch PC with N6210 Elkhart Lake Celeron CPU

  • Display: 6.5"[4:3, 640 x 480, VGA]
  • Touch: Optional Resistive Touch
  • Brightness: 700
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Celeron N Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
  • OS: Linux Ubuntu 20.04, Windows 10, Windows 11
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC
W24ITWS-MHA2-EX 23.8″ Intrinsically Safe C1D2 HD Intel Core Tiger Lake i5 Panel Computer

Winmate

23.8″ Intrinsically Safe C1D2 HD Intel Core Tiger Lake i5 Panel Computer

W24ITWS-MHA2-EX

23.8″ Intrinsically Safe C1D2 HD Intel Core Tiger Lake i5 Panel Computer

W24ITWS-MHA2-EX

23.8" Intrinsically Safe C1D2 HD Intel Core Tiger Lake i5 Panel Computer

  • Display: 23.8"[4:3, 1024 x 768, XGA]
  • Touch: Multi Touch PCAP
  • Brightness: 250
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Windows 10
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • PCIe: 1x PCIe [x16 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 9-29V DC Input
  • Temp: -20°C to 60°C [-4°F to 147°F]
  • IP Rating: Front IP65
  • Certification: UL Class 1, Div. 2
W22ITWS-MHB1-EX 21.5″ Intrinsically Safe C1D2 HD Panel PC with Intel Core Tiger Lake i5 CPU

Winmate

21.5″ Intrinsically Safe C1D2 HD Panel PC with Intel Core Tiger Lake i5 CPU

W22ITWS-MHB1-EX

21.5″ Intrinsically Safe C1D2 HD Panel PC with Intel Core Tiger Lake i5 CPU

W22ITWS-MHB1-EX

21.5" Intrinsically Safe C1D2 HD Panel PC with Intel Core Tiger Lake i5 CPU

  • Display: 21.5"[4:3, 1024 x 768, XGA]
  • Touch: Multi Touch PCAP
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Windows 10
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • PCIe: 1x PCIe [x16 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 9-29V DC Input
  • Temp: -20°C to 60°C [-4°F to 147°F]
  • IP Rating: Front IP65
  • Certification: UL Class 1, Div. 2
R19ITWS-MHA3-EX 19″ Rugged C1D2 HMI Panel PC with Intel Core Tiger Lake i5 CPU

Winmate

19″ Rugged C1D2 HMI Panel PC with Intel Core Tiger Lake i5 CPU

R19ITWS-MHA3-EX

19″ Rugged C1D2 HMI Panel PC with Intel Core Tiger Lake i5 CPU

R19ITWS-MHA3-EX

19" Rugged C1D2 HMI Panel PC with Intel Core Tiger Lake i5 CPU

  • Display: 19"[4:3, 1024 x 768, XGA]
  • Touch: Multi Touch PCAP
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Windows 10
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • PCIe: 1x PCIe [x16 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 9-29V DC Input
  • Temp: -20°C to 60°C [-4°F to 147°F]
  • IP Rating: Front IP65
  • Certification: UL Class 1, Div. 2
R17ITWS-MHA1-EX 17″ Industrial UL C1D2 Panel PC with Intel Core Tiger Lake i5 CPU

Winmate

17″ Industrial UL C1D2 Panel PC with Intel Core Tiger Lake i5 CPU

R17ITWS-MHA1-EX

17″ Industrial UL C1D2 Panel PC with Intel Core Tiger Lake i5 CPU

R17ITWS-MHA1-EX

17" Industrial UL C1D2 Panel PC with Intel Core Tiger Lake i5 CPU

  • Display: 17"[4:3, 1024 x 768, XGA]
  • Touch: Multi Touch PCAP
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Windows 10
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • PCIe: 1x PCIe [x16 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 9-29V DC Input
  • Temp: -20°C to 60°C [-4°F to 147°F]
  • IP Rating: Front IP65
  • Certification: UL Class 1, Div. 2
R15ITWS-MHB1-EX 15″ Intrinsically Safe C1D2 Computer with Intel Core Tiger Lake i5 CPU

Winmate

15″ Intrinsically Safe C1D2 Computer with Intel Core Tiger Lake i5 CPU

R15ITWS-MHB1-EX

15″ Intrinsically Safe C1D2 Computer with Intel Core Tiger Lake i5 CPU

R15ITWS-MHB1-EX

15" Intrinsically Safe C1D2 Computer with Intel Core Tiger Lake i5 CPU

  • Display: 15"[4:3, 1024 x 768, XGA]
  • Touch: Multi Touch PCAP
  • Brightness: 300
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Windows 10
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • PCIe: 1x PCIe [x16 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 9-29V DC Input
  • Temp: -20°C to 60°C [-4°F to 147°F]
  • IP Rating: Front IP65
  • Certification: UL Class 1, Div. 2
R12ITWS-MHM2-EX 12.1″ Intrinsically Safe C1D2 HMI Panel PC with Intel Core Tiger Lake i5 CPU

Winmate

12.1″ Intrinsically Safe C1D2 HMI Panel PC with Intel Core Tiger Lake i5 CPU

R12ITWS-MHM2-EX

12.1″ Intrinsically Safe C1D2 HMI Panel PC with Intel Core Tiger Lake i5 CPU

R12ITWS-MHM2-EX

12.1" Intrinsically Safe C1D2 HMI Panel PC with Intel Core Tiger Lake i5 CPU

  • Display: 12.1"[4:3, 1024 x 768, XGA]
  • Touch: Multi Touch PCAP
  • Brightness: 500
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Windows 10
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • PCIe: 1x PCIe [x16 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 9-29V DC Input
  • Temp: -20°C to 60°C [-4°F to 147°F]
  • IP Rating: Front IP65
  • Certification: UL Class 1, Div. 2
Displaying of 77 items

Need Help Choosing Panel Mount PCs?

Tell us about your application and a member of the team will get right back to you.

T: +44(0)1785 558 300   E: sales@things-embedded.com

This website uses cookies for visitor tracking and to deliver a better experience
See our Privacy Policy for details.
OK
