Displaying of 77 items
View All
XPPC 10-100 10.1” TFT WXGA 16:10 Slim Bezel Multi-Touchscreen Computer

Nexcom

10.1” TFT WXGA 16:10 Slim Bezel Multi-Touchscreen Computer

XPPC 10-100

10.1” TFT WXGA 16:10 Slim Bezel Multi-Touchscreen Computer

XPPC 10-100

10.1” TFT WXGA 16:10 Slim Bezel Multi-Touchscreen Computer

  • Display: 10.1"[5:3, 1280 x 800, WXGA]
  • Touch: Multi Touch PCAP
  • Brightness: 400
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: Celeron J Series Apollo Lake
  • Memory: 1x DDR3L 1866MHz SO-DIMM Slot, 8GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.0 [Type A]
  • Serial: 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [SATA] [2242]
  • mPCIe: 1x mPCIe [PCIe/USB/SIM]
  • Storage: 1x M.2 SSD
  • Power: 19V DC [Barrel Connector], Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
PPC-120T-AL 12.1″ WXGA Front IP65 Flush Mount Quad Core Panel PC

Nexcom

12.1″ WXGA Front IP65 Flush Mount Quad Core Panel PC

PPC-120T-AL

12.1″ WXGA Front IP65 Flush Mount Quad Core Panel PC

PPC-120T-AL

12.1" WXGA Front IP65 Flush Mount Quad Core Panel PC

  • Display: 12.1"[5:3, 1280 x 800, WXGA]
  • Touch: Multi Touch PCAP
  • Brightness: 600
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: Celeron J Series Apollo Lake
  • Memory: 1x DDR3L 1866MHz SO-DIMM Slot, 8GB
  • OS: Windows 10
  • Display Outputs: 1x Display Port, 1x USB Type C
  • Ethernet: 1 x GbE LAN [RJ45] [PoE], 3 x GbE LAN [RJ45]
  • USB: 1 x USB 3.0 [Type C], 2 x USB 3.0 [Type A]
  • Serial: 2x Isolated RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [SATA] [2242]
  • Storage: 1x M.2 SSD
  • Power: 18-32V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 55°C [14°F to 131°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC, IEC 60945
R19IHAT-66EX 19″ ATEX Computer with Intel Core i5 or i7 CPU

Winmate

19″ ATEX Computer with Intel Core i5 or i7 CPU

R19IHAT-66EX

19″ ATEX Computer with Intel Core i5 or i7 CPU

R19IHAT-66EX

19" ATEX Computer with Intel Core i5 or i7 CPU

  • Display: 19"[5:4, 1280 x 1024, SXGA]
  • Touch: Multi Touch PCAP
  • Brightness: 1000, 800
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 4th Gen Haswell
  • Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
  • OS: Linux Ubuntu 20.04, Windows 10, Windows 7
  • Ethernet: 1 x GbE LAN [Terminal Block]
  • USB: 1 x USB 2.0 [Terminal Block]
  • Serial: 1 x RS232/422/485 [Terminal Block]
  • mPCIe: 1 x mPCIe [SATA]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • IP Rating: IP66
  • Certification: ATEX Zone 2, CE, FCC, IECEx, UL Class 1, Div. 2, UL60950-1
R19IHAT-66EX-T 19″ High Bright ATEX Panel PC with Intel Core i5 Tiger Lake CPU

Winmate

19″ High Bright ATEX Panel PC with Intel Core i5 Tiger Lake CPU

R19IHAT-66EX-T

19″ High Bright ATEX Panel PC with Intel Core i5 Tiger Lake CPU

R19IHAT-66EX-T

19" High Bright ATEX Panel PC with Intel Core i5 Tiger Lake CPU

  • Display: 19"[5:4, 1280 x 1024, SXGA]
  • Touch: Multi Touch PCAP
  • Brightness: 800
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Ethernet: 1 x GbE LAN [RJ45], 1 x GbE LAN [Terminal Block]
  • USB: 1 x USB 2.0 [Terminal Block], 1 x USB 3.2 Gen 2 [Type A], 2 x USB 2.0 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [Terminal Block]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • IP Rating: IP66
  • Certification: ATEX Zone 2, CE, FCC, IECEx, UL 62368-1, UL Class 1, Div. 2

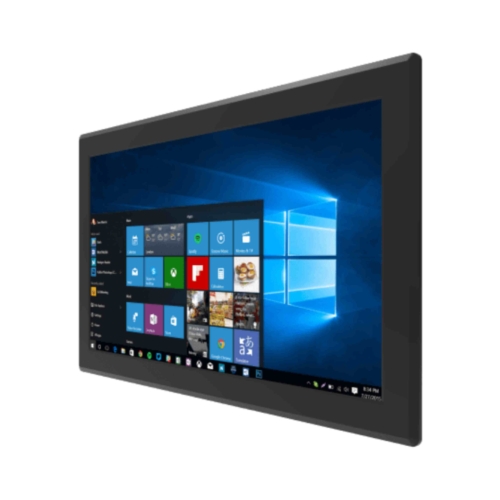

W24IT7T-PMA2 23.8″ FHD Panel Mount Panel PC with Tiger Lake Core i5 CPU

Winmate

23.8″ FHD Panel Mount Panel PC with Tiger Lake Core i5 CPU

W24IT7T-PMA2

23.8″ FHD Panel Mount Panel PC with Tiger Lake Core i5 CPU

W24IT7T-PMA2

23.8" FHD Panel Mount Panel PC with Tiger Lake Core i5 CPU

  • Display: 23.8"[16:9, 1920 x 1080, FHD]
  • Touch: Optional Resistive Touch
  • Brightness: 250
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

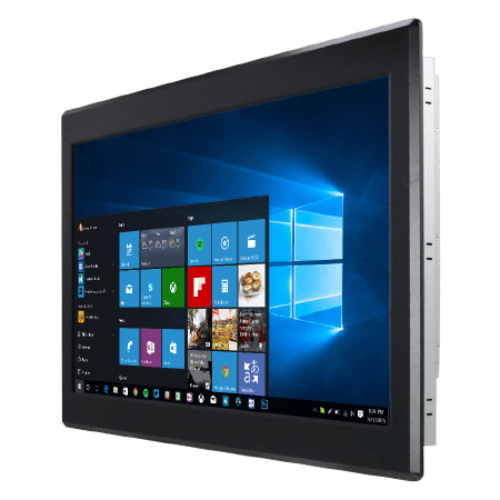

W22IT7T-PMA3 21.5″ FHD Panel Mount Touch PC with Tiger Lake Core i5 CPU

Winmate

21.5″ FHD Panel Mount Touch PC with Tiger Lake Core i5 CPU

W22IT7T-PMA3

21.5″ FHD Panel Mount Touch PC with Tiger Lake Core i5 CPU

View W22IT7T-PMA3

W22IT7T-PMA3

21.5" FHD Panel Mount Touch PC with Tiger Lake Core i5 CPU

  • Display: 21.5"[16:9, 1920 x 1080, FHD]
  • Touch: Optional Resistive Touch
  • Brightness: 250
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

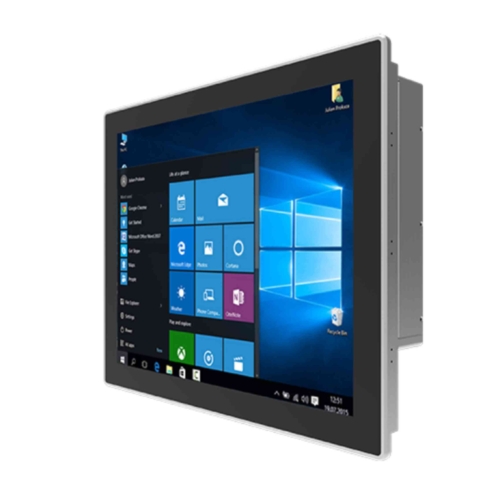

R19IT7T-PMM1 19″ SXGA Panel Mount Touch Computer with Tiger Lake Core i5 CPU

Winmate

19″ SXGA Panel Mount Touch Computer with Tiger Lake Core i5 CPU

R19IT7T-PMM1

19″ SXGA Panel Mount Touch Computer with Tiger Lake Core i5 CPU

R19IT7T-PMM1

19" SXGA Panel Mount Touch Computer with Tiger Lake Core i5 CPU

  • Display: 19"[5:4, 1280 x 1024, SXGA]
  • Touch: Optional Resistive Touch
  • Brightness: 250
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

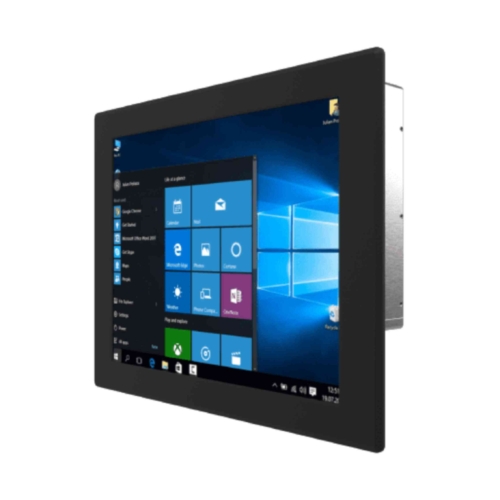

R19IT7T-PMA1 19″ SXGA Panel Mount Touch Computer with Tiger Lake Core i5 CPU

Winmate

19″ SXGA Panel Mount Touch Computer with Tiger Lake Core i5 CPU

R19IT7T-PMA1

19″ SXGA Panel Mount Touch Computer with Tiger Lake Core i5 CPU

R19IT7T-PMA1

19" SXGA Panel Mount Touch Computer with Tiger Lake Core i5 CPU

  • Display: 19"[5:4, 1280 x 1024, SXGA]
  • Touch: Optional Resistive Touch
  • Brightness: 400
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

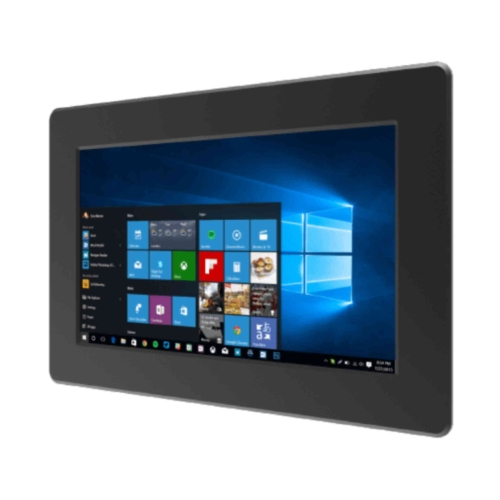

W18IT7T-PMA2 18.5″ WXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

Winmate

18.5″ WXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

W18IT7T-PMA2

18.5″ WXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

W18IT7T-PMA2

18.5" WXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

  • Display: 18.5"[8:5, 1366 x 768, WXGA]
  • Touch: Optional Resistive Touch
  • Brightness: 450
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

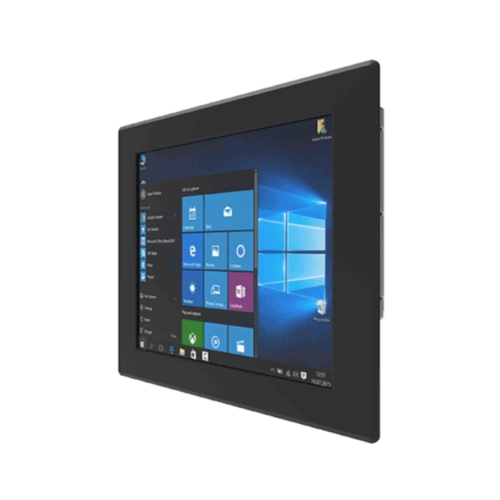

R17IT7T-PMM1 17″ SXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

Winmate

17″ SXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

R17IT7T-PMM1

17″ SXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

View R17IT7T-PMM1

R17IT7T-PMM1

17" SXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

  • Display: 17"[5:4, 1280 x 1024, SXGA]
  • Touch: Optional Resistive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

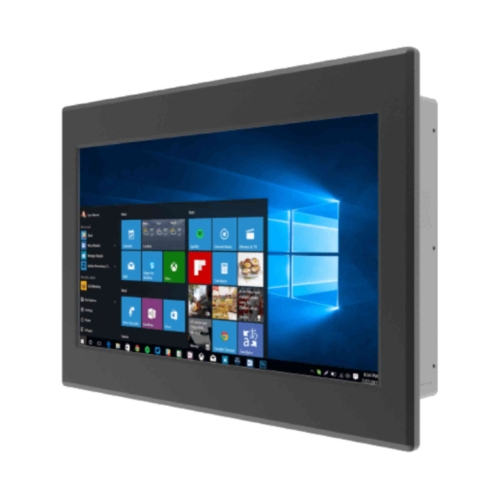

W15IT7T-PMA2 15.6″ WXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

Winmate

15.6″ WXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

W15IT7T-PMA2

15.6″ WXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

W15IT7T-PMA2

15.6" WXGA Panel Mount Touch PC with Tiger Lake Core i5 CPU

  • Display: 15.6"[8:5, 1366 x 768, WXGA]
  • Touch: Optional Resistive Touch
  • Brightness: 400
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC

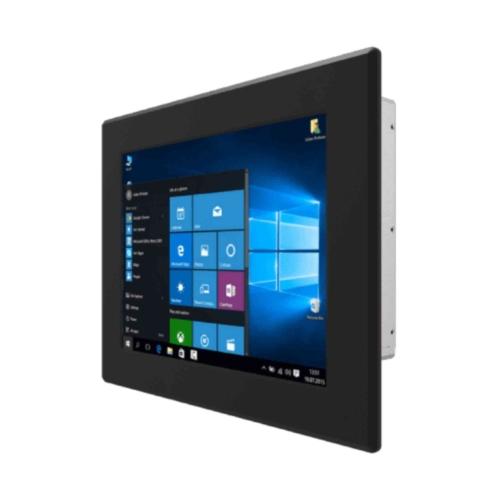

R15IT7T-PMC3 15″ XGA Panel Mount Panel PC with Tiger Lake Core i5 CPU

Winmate

15″ XGA Panel Mount Panel PC with Tiger Lake Core i5 CPU

R15IT7T-PMC3

15″ XGA Panel Mount Panel PC with Tiger Lake Core i5 CPU

R15IT7T-PMC3

15" XGA Panel Mount Panel PC with Tiger Lake Core i5 CPU

  • Display: 15"[4:3, 1024 x 768, XGA]
  • Touch: Optional Resistive Touch
  • Brightness: 300
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: 11th Gen Tiger Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux Ubuntu 22.04, Windows 10, Windows 11
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
  • Power: 12V DC, Optional AC Power Supply
  • Temp: 0°C to 50°C [32°F to 122°F]
  • Certification: CE, FCC
Displaying of 77 items

Need Help Choosing Panel Mount PCs?

Tell us about your application and a member of the team will get right back to you.

T: +44(0)1785 558 300   E: sales@things-embedded.com

This website uses cookies for visitor tracking and to deliver a better experience
See our Privacy Policy for details.
OK
