Displaying of 77 items
View All
VIO-110-PC100-EHL 10″ SVGA Intel Celeron Industrial Touchscreen PC

C&T Solution

10″ SVGA Intel Celeron Industrial Touchscreen PC

VIO-110-PC100-EHL

10″ SVGA Intel Celeron Industrial Touchscreen PC

Available in 4 variations

VIO-110-PC100-EHL

Available in 4 variations

  • Touch: Projective Capacitive Touch
  • Brightness: 400
  • Format: Standard
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
VIO-W224-PC100-EHL 24″ Capacitive Touch Panel PC

C&T Solution

24″ Capacitive Touch Panel PC

VIO-W224-PC100-EHL

24″ Capacitive Touch Panel PC

Available in 4 variations

VIO-W224-PC100-EHL

Available in 4 variations

  • Touch: Projective Capacitive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
VIO-W221-PC100-EHL 22″ Projected Capacitive Touch Panel PC

C&T Solution

22″ Projected Capacitive Touch Panel PC

VIO-W221-PC100-EHL

22″ Projected Capacitive Touch Panel PC

Available in 4 variations

VIO-W221-PC100-EHL

Available in 4 variations

  • Touch: Projective Capacitive Touch
  • Brightness: 300
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
VIO-W215-PC100-EHL 15.6″ FHD Industrial Touch Computer

C&T Solution

15.6″ FHD Industrial Touch Computer

VIO-W215-PC100-EHL

15.6″ FHD Industrial Touch Computer

Available in 4 variations

VIO-W215-PC100-EHL

Available in 4 variations

  • Touch: Resistive Touch
  • Brightness: 400
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
VIO-219-PC100-EHL 19″ Quad Core Industrial Touch Panel Computer

C&T Solution

19″ Quad Core Industrial Touch Panel Computer

VIO-219-PC100-EHL

19″ Quad Core Industrial Touch Panel Computer

Available in 4 variations

VIO-219-PC100-EHL

Available in 4 variations

  • Touch: Projective Capacitive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
VIO-217-PC100-EHL 17″ Quad Core All In One HMI

C&T Solution

17″ Quad Core All In One HMI

VIO-217-PC100-EHL

17″ Quad Core All In One HMI

Available in 4 variations

VIO-217-PC100-EHL

Available in 4 variations

  • Touch: Projective Capacitive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
VIO-215-PC100-EHL 15″ Industrial Panel PC with Windows 10

C&T Solution

15″ Industrial Panel PC with Windows 10

VIO-215-PC100-EHL

15″ Industrial Panel PC with Windows 10

Available in 4 variations

VIO-215-PC100-EHL

Available in 4 variations

  • Touch: Projective Capacitive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
VIO-212-PC100-EHL 12″ All In One PC with Touch Screen

C&T Solution

12″ All In One PC with Touch Screen

VIO-212-PC100-EHL

12″ All In One PC with Touch Screen

Available in 4 variations

VIO-212-PC100-EHL

Available in 4 variations

  • Touch: Projective Capacitive Touch
  • Brightness: 500
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
GOT710-837 10.4″ XGA Sunlight Readable Railway Terminal with Intel Atom E3845 Processor

Axiomtek

10.4″ XGA Sunlight Readable Railway Terminal with Intel Atom E3845 Processor

GOT710-837

10.4″ XGA Sunlight Readable Railway Terminal with Intel Atom E3845 Processor

GOT710-837

10.4" XGA Sunlight Readable Railway Terminal with Intel Atom E3845 Processor

  • Touch: 5-Wire Resistive Touch
  • Brightness: 500
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Atom E Series Bay Trail
  • Memory: 4GB Soldered On-board
  • OS: Windows 10
  • Ethernet: 2 x GbE LAN [M12]
  • USB: 2 x USB 2.0 [M12]
  • Serial: 2x RS232/422/485 [M12]
  • CANbus: 1 x Isolated CANbus, DB9
  • mPCIe: 2 x mPCIe [SATA/USB/PCIe]
  • Storage: 16GB eMMC, 1x mSATA
  • Power: 24V-110V DC [M12]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -30°C to 55°C [-22°F to 131°F]
  • IP Rating: Front IP65
  • Certification: CE, EN50121-3-2, EN50155, FCC

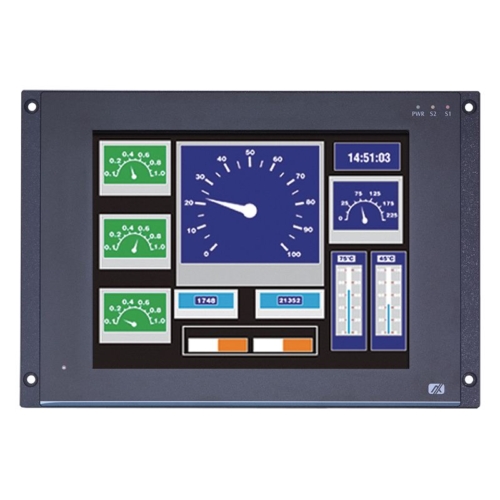

GOT712S 12.1″ XGA EN50155 Fanless Rail Touch PC with S3 20ms Power Interruption Protection

Axiomtek

12.1″ XGA EN50155 Fanless Rail Touch PC with S3 20ms Power Interruption Protection

GOT712S

12.1″ XGA EN50155 Fanless Rail Touch PC with S3 20ms Power Interruption Protection

GOT712S

12.1" XGA EN50155 Fanless Rail Touch PC with S3 20ms Power Interruption Protection

  • Touch: 5-Wire Resistive Touch
  • Brightness: 800
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Atom E Series Bay Trail
  • Memory: 4GB Soldered On-board
  • OS: Windows 10
  • Ethernet: 2 x GbE LAN [M12]
  • USB: 2 x USB 2.0 [M12]
  • Serial: 2x RS232/422/485 [M12]
  • CANbus: 1 x Isolated CANbus, DB9
  • mPCIe: 2 x mPCIe [SATA/USB/PCIe]
  • Storage: 16GB eMMC, 1x mSATA
  • Power: 24V-110V DC [M12]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • IP Rating: Front IP65
  • Certification: CE, EN50121-3-2, EN50155, FCC

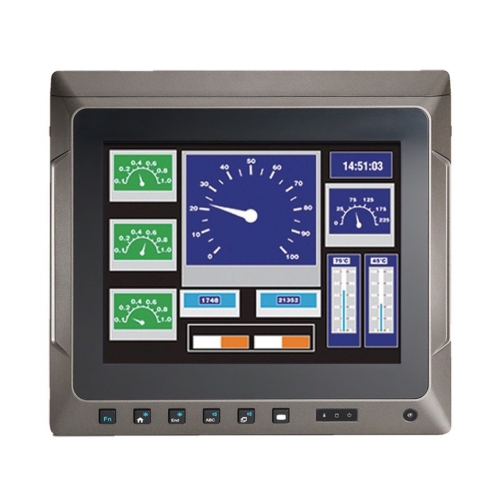

GOT610-837 10.4″ XGA Vehicle Mount Terminal with Intel Atom E3845 Processor

Axiomtek

10.4″ XGA Vehicle Mount Terminal with Intel Atom E3845 Processor

GOT610-837

10.4″ XGA Vehicle Mount Terminal with Intel Atom E3845 Processor

GOT610-837

10.4" XGA Vehicle Mount Terminal with Intel Atom E3845 Processor

  • Touch: 5-Wire Resistive Touch
  • Brightness: 500
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Atom E Series Bay Trail
  • Memory: 4GB Soldered On-board
  • OS: Windows 10
  • Ethernet: 2 x GbE LAN [M12]
  • USB: 2 x USB 2.0 [M12]
  • Serial: 2x RS232/422/485 [M12]
  • CANbus: 1 x Isolated CANbus, DB9
  • mPCIe: 2 x mPCIe [SATA/USB/PCIe]
  • Storage: 16GB eMMC, 1x mSATA
  • Power: 24V-110V DC [M12]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -30°C to 55°C [-22°F to 131°F]
  • IP Rating: Front IP65
  • Certification: CE, EN50121-3-2, EN50155, FCC
GOT712-837 12.1″ XGA EN50155 Fanless Railway Touchscreen Computer with Intel Atom E3845 CPU

Axiomtek

12.1″ XGA EN50155 Fanless Railway Touchscreen Computer with Intel Atom E3845 CPU

GOT712-837

12.1″ XGA EN50155 Fanless Railway Touchscreen Computer with Intel Atom E3845 CPU

GOT712-837

12.1" XGA EN50155 Fanless Railway Touchscreen Computer with Intel Atom E3845 CPU

  • Touch: 5-Wire Resistive Touch
  • Brightness: 800
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • CPU: Atom E Series Bay Trail
  • Memory: 4GB Soldered On-board
  • OS: Windows 10
  • Ethernet: 2 x GbE LAN [M12]
  • USB: 2 x USB 2.0 [M12]
  • Serial: 2x RS232/422/485 [M12]
  • CANbus: 1 x Isolated CANbus, DB9
  • mPCIe: 2 x mPCIe [SATA/USB/PCIe]
  • Storage: 16GB eMMC, 1x mSATA
  • Power: 24V-110V DC [M12]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • IP Rating: Front IP65
  • Certification: CE, EN50121-3-2, EN50155, FCC
Displaying of 77 items

Need Help Choosing Panel Mount PCs?

Tell us about your application and a member of the team will get right back to you.

T: +44(0)1785 558 300   E: sales@things-embedded.com

This website uses cookies for visitor tracking and to deliver a better experience
See our Privacy Policy for details.
OK
