DIN Rail PCs

Space Saving DIN Rail Embedded PCs

Simplify your cabinet installation with an industrial DIN Rail PC. Designed for easy integration into your existing infrastructure, our DIN Rail embedded PCs offer a space saving design with industrial grade performance. These mini DIN Rail mount computers offer advanced EMI/ESD shielding, various connectivity options, and cutting-edge processors, ensuring seamless installation precisely where you require it.
DIN Rail Mount PC

Simplified Cabinet Installations

A DIN Rail industrial PC is designed for durability and continuous operation in demanding settings. Typically mounted in compact areas like factory cabinets, these industrial PCs usually feature fanless, passive cooling and can operate across a broad range of temperatures.
Energy Efficient Performance

Scalable Processing Power

DIN Rail Embedded PCs are available with various CPU choices, ranging from energy-saving models to high-performance ones, catering to different edge computing needs. Additionally, we can incorporate AI accelerators or GPUs onboard to boost their processing power further.
Connected WiFi LTE Cellular

Wi-Fi or Cellular Network Capabilities

Our DIN Rail Computers are adaptable, offering expandable I/O and onboard storage, allowing us to tailor them to your specific needs with substantial capabilities. We can also set up a network-prepared DIN Rail Gateway, equipped with wireless technologies like Wi-Fi, Cat M1, 4G, or 5G, complete with onboard SIMs and certified modems, ready for edge-to-cloud deployment.

Browse Our Range Of DIN Rail Computers

Industrial IoT

Performance

Graphics

I/O

Expansion

1
5
Apply Filter

Storage

Power

Environmental Conditions

Mechanical Properties

Displaying of 66 items
View All
SPC-7100 11th Gen Core i5 DIN Rail Mounted PC

Vecow

11th Gen Core i5 DIN Rail Mounted PC

SPC-7100

11th Gen Core i5 DIN Rail Mounted PC

Available in 2 variations

SPC-7100

Available in 2 variations

  • Mounting Options: DIN Mount
  • CPU: 11th Gen Tiger Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 2x Display Port
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
  • Serial: 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB] [2260/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 9-55V DC Input [Terminal Block]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -40°C to 75°C [-40°F to 167°F]
  • Certification: CE, EN50121-3-2, EN50155, FCC
  • Mounting Options: Desktop, Wall Mount

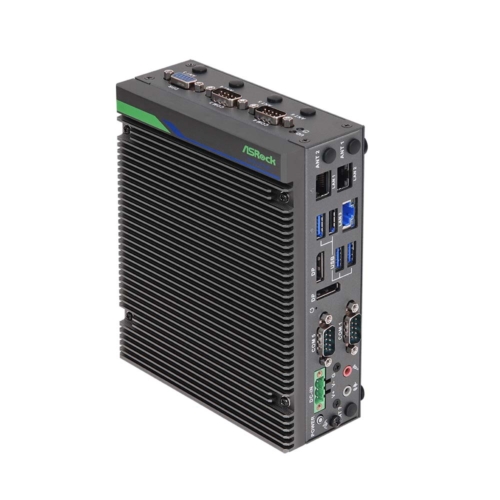

iEP-7020E High Performance 13th Gen Industrial DIN Rail Computer

ASRock Industrial

High Performance 13th Gen Industrial DIN Rail Computer

iEP-7020E

High Performance 13th Gen Industrial DIN Rail Computer

Available in 3 variations

iEP-7020E

Available in 3 variations

  • Mounting Options: DIN Mount
  • CPU: 13th Gen Raptor Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux, Windows 10
  • Display Outputs: 2x Display Port
  • Ethernet: 2 x GbE LAN [RJ45], 3 x GbE LAN [RJ45]
  • USB: 1 x USB 2.0 [Type A], 3 x USB 3.2 Gen 2 [Type A]
  • Serial: 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
  • Storage: 1x M.2 SSD, 1x Micro SD
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • Certification: CE, FCC
  • Mounting Options: Wall Mount
JETBOX FLOYD-SC Industrial DIN Rail PC with NVIDIA Jetson Xavier NX

Diamond Systems

Industrial DIN Rail PC with NVIDIA Jetson Xavier NX

JETBOX FLOYD-SC

Industrial DIN Rail PC with NVIDIA Jetson Xavier NX

Available in 5 variations

JETBOX FLOYD-SC

Available in 5 variations

  • Mounting Options: DIN Mount
  • SOM: Xavier NX
  • OS: Linux
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 1 x USB 3.0 [Type A], 2 x USB 2.0 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/485 [DB9]
  • CANbus: 1 x CANbus [Board]
  • M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
  • Storage: 16GB eMMC, 1x M.2 SSD
  • Power: 7-24V DC [Barrel Connector]
  • Temp: -25°C to 80°C [-13°F to 176°F]
  • Certification: CE, FCC

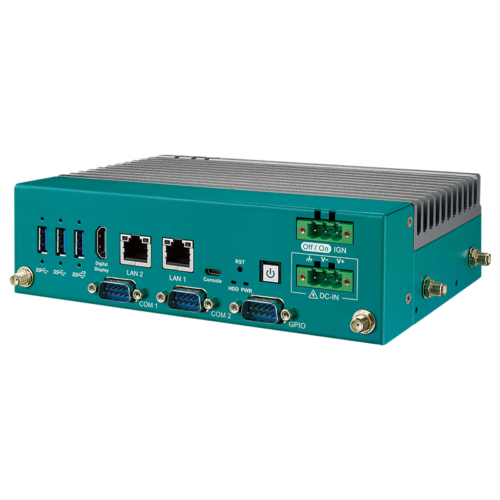

EAC-6000 DIN Mount Industrial NVIDIA Orin NX Vision Computer

Vecow

DIN Mount Industrial NVIDIA Orin NX Vision Computer

EAC-6000

DIN Mount Industrial NVIDIA Orin NX Vision Computer

Available in 2 variations

EAC-6000

Available in 2 variations

  • Mounting Options: DIN Mount
  • SOM: Orin NX
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 3 x USB 3.1 [Type A]
  • Serial: 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 2x M.2 B-Key [USB] [3042/3052]
  • Storage: 1x M.2 SSD, 1x Micro SD
  • Power: 9-50V DC Input [Terminal Block]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -20°C to 70°C [-4°F to 158°F]
  • Certification: CE, EN50155, FCC
  • Mounting Options: Wall Mount
ECX-3000 AI Rugged PC with Hailo 8 AI Accelerator

Vecow

Rugged PC with Hailo 8 AI Accelerator

ECX-3000 AI

Rugged PC with Hailo 8 AI Accelerator

Available in 7 variations

ECX-3000 AI

Available in 7 variations

  • Mounting Options: DIN Mount
  • CPU: 12th Gen Alder Lake, 13th Gen Raptor Lake
  • Memory: 2x DDR4 2400MHz SO-DIMM Slots, 64GB
  • OS: Linux
  • AI Accelerator: Hailo-8 AI Accelerator
  • Display Outputs: 1x DVI, 1x HDMI, 2x Display Port
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 6 x USB 3.2 Gen 2 [Type A]
  • Serial: 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [USB 3.2/USB/SATA] [3042/3050], 1x M.2 E-Key [PCIe x2/USB] [2230]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • Storage: 1x mSATA, 2x 2.5" HDD/SSD, 2x SATA Ports, 4x M.2 SSD
  • RAID: RAID 0, RAID 1
  • Power: 9-50V DC Input [Terminal Block]
  • Temp: -40°C to 45°C [-40°F to 113°F], -40°C to 65°C [-40°F to 149°F]
  • Certification: CE, EN50155, FCC
  • Mounting Options: Wall Mount
VCM-1000 13th Gen Industrial PC with 8 USB3

Vecow

13th Gen Industrial PC with 8 USB3

VCM-1000

13th Gen Industrial PC with 8 USB3

Available in 3 variations

VCM-1000

Available in 3 variations

  • Mounting Options: DIN Mount
  • CPU: 12th Gen Alder Lake, 13th Gen Raptor Lake
  • Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
  • OS: Linux
  • Display Outputs: 1x DVI, 1x VGA
  • Ethernet: 6 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 4 x USB 2.0 [Type A], 8x USB 3.2 Gen 1 [Type A]
  • Serial: 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x2/SATA] [2280/22100]
  • Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD, 2x SATA Ports
  • Power: 24V DC [Terminal Block]
  • Temp: -25°C to 60°C [-13°F to 147°F], -25°C to 75°C [-25°F to 167°F]
  • Certification: CE, FCC, UKCA
  • Mounting Options: VESA Mount, Wall Mount
AIE510-ONX Industrial Jetson Orin NX Box PC with PoE

Axiomtek

Industrial Jetson Orin NX Box PC with PoE

AIE510-ONX

Industrial Jetson Orin NX Box PC with PoE

AIE510-ONX

Industrial Jetson Orin NX Box PC with PoE

  • Mounting Options: DIN Mount
  • SOM: Orin NX
  • OS: Linux
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45] [PoE], 1 x GbE LAN [RJ45] [PoE]
  • USB: 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD
  • Power: 24V DC
  • Temp: -25°C to 60°C [-13°F to 147°F]
  • Certification: CE, FCC
  • Mounting Options: VESA Mount, Wall Mount
BEDROCK V3000 BASIC Ryzen Embedded V3000 IIoT Edge Gateway

SolidRun

Ryzen Embedded V3000 IIoT Edge Gateway

BEDROCK V3000 BASIC

Ryzen Embedded V3000 IIoT Edge Gateway

Available in 3 variations

BEDROCK V3000 BASIC

Available in 3 variations

  • Mounting Options: DIN Mount
  • CPU: V-Series
  • Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
  • OS: Linux, Windows 10, Windows 11
  • Ethernet: 2 x 10 GbE LAN [SFP+], 4 x 2.5 GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 A/E-Key [SATA] [2230], 1x M.2 B-Key [USB] [3042/3052], 3x M.2 M-Key [PCIe x4] [2280]
  • Storage: 3x M.2 SSD
  • Power: 12-60V DC Input [Terminal Block]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC, RoHS
  • Mounting Options: Desktop, Wall Mount
BEDROCK R7000 EDGE AI AMD 7840U Ryzen Industrial Hailo-8 PC

SolidRun

AMD 7840U Ryzen Industrial Hailo-8 PC

BEDROCK R7000 EDGE AI

AMD 7840U Ryzen Industrial Hailo-8 PC

Available in 3 variations

BEDROCK R7000 EDGE AI

Available in 3 variations

  • Mounting Options: DIN Mount
  • CPU: Ryzen 7
  • Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
  • OS: Linux, Windows 10, Windows 11
  • AI Accelerator: Hailo-8 AI Accelerator
  • Display Outputs: 1x Display Port, 1x HDMI, 2x Mini Display Port
  • Ethernet: 2 x 2.5 GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 A/E-Key [SATA] [2230], 1x M.2 B-Key [USB] [3042/3052], 3x M.2 M-Key [PCIe x4] [2280]
  • Storage: 3x M.2 SSD
  • Power: 12-60V DC Input [Terminal Block]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC, RoHS
  • Mounting Options: Desktop, Wall Mount
BEDROCK R7000 BASIC AMD 7840U Ryzen Low Profile Embedded PC

SolidRun

AMD 7840U Ryzen Low Profile Embedded PC

BEDROCK R7000 BASIC

AMD 7840U Ryzen Low Profile Embedded PC

Available in 3 variations

BEDROCK R7000 BASIC

Available in 3 variations

  • Mounting Options: DIN Mount
  • CPU: Ryzen 7
  • Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
  • OS: Linux, Windows 10, Windows 11
  • Display Outputs: 1x Display Port, 1x HDMI, 2x Mini Display Port
  • Ethernet: 2 x 2.5 GbE LAN [RJ45]
  • USB: 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 A/E-Key [SATA] [2230], 1x M.2 B-Key [USB] [3042/3052], 3x M.2 M-Key [PCIe x4] [2280]
  • Storage: 3x M.2 SSD
  • Power: 12-60V DC Input [Terminal Block]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC, RoHS
  • Mounting Options: Desktop, Wall Mount

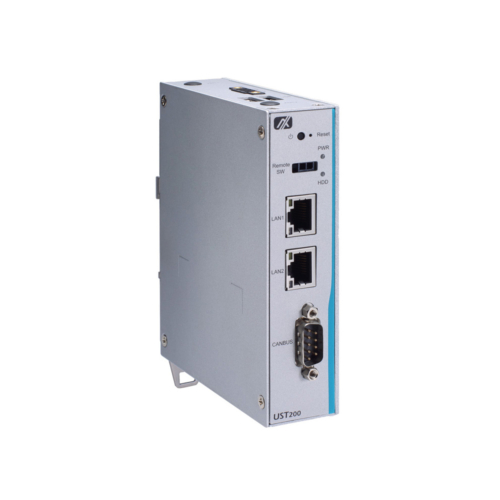

UST200-83H-FL Quad Core Atom x5-E3940 Industrial Vehicle PC

Axiomtek

Quad Core Atom x5-E3940 Industrial Vehicle PC

UST200-83H-FL

Quad Core Atom x5-E3940 Industrial Vehicle PC

Available in 2 variations

UST200-83H-FL

Available in 2 variations

  • Mounting Options: DIN Mount
  • CPU: Atom X Series Apollo Lake
  • Memory: 1x DDR3L 1866MHz SO-DIMM Slot, 8GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.0 [Type A]
  • Serial: 1 x RS232/422/485 [DB9]
  • mPCIe: 1 x Half-Size mPCIe [PCIe, USB], 1 x mPCIe [USB/SIM]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA
  • Power: 9-36V DC Input [Terminal Block]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • Certification: CE, E-Mark, ECE-R10, EN55024, EN55032, FCC
  • Mounting Options: Wall Mount

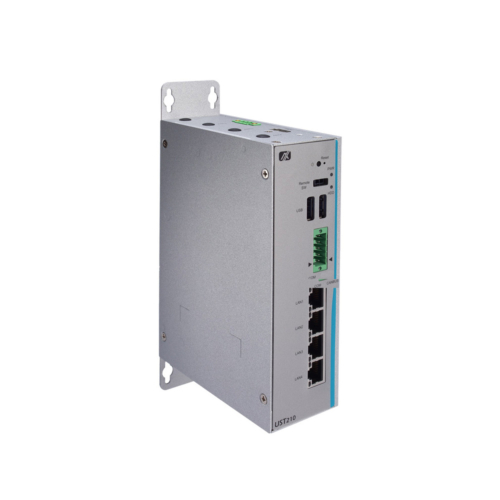

UST210-83K-FL Intel Atom x5-E3940 4G In Vehicle NVR

Axiomtek

Intel Atom x5-E3940 4G In Vehicle NVR

UST210-83K-FL

Intel Atom x5-E3940 4G In Vehicle NVR

Available in 4 variations

UST210-83K-FL

Available in 4 variations

  • Mounting Options: DIN Mount
  • CPU: Atom X Series Apollo Lake
  • Memory: 1x DDR3L 1866MHz SO-DIMM Slot, 8GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x HDMI
  • Ethernet: 4 x GbE LAN [RJ45]
  • USB: 2 x USB 3.0 [Type A]
  • Serial: 2 x RS232/422/485 [Terminal Block]
  • mPCIe: 1 x Half-Size mPCIe [PCIe, USB], 1 x mPCIe [USB/SIM]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA
  • Power: 9-36V DC Input [Terminal Block]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • Certification: CE, E-Mark, ECE-R10, EN55024, EN55032, FCC
  • Mounting Options: Wall Mount
Displaying of 66 items

Need Help Choosing a DIN Rail Computer?

Tell us about your application and a member of the team will get right back to you.
