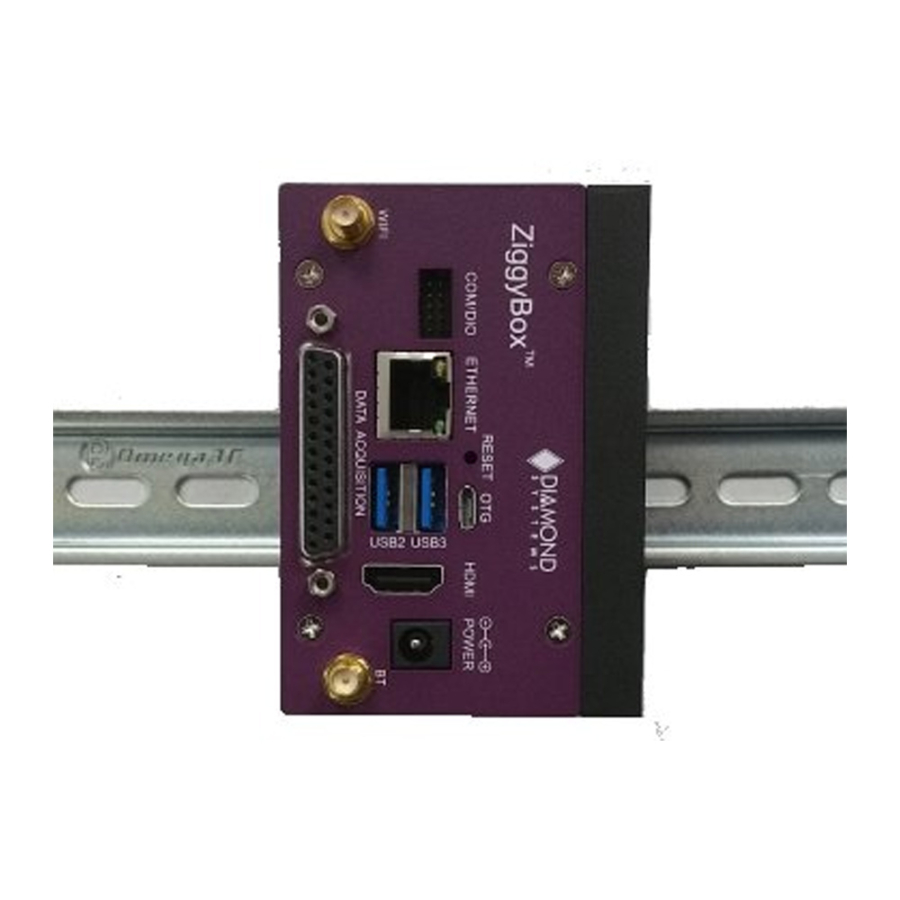

Diamond Systems ZIGGYBOX
Things Embedded are an official Diamond Systems UK distributor and can supply the ZIGGYBOX fully configured and imaged.
Available in 2 Variants
| Overview |
|---|
| Brand & Model |
| Sub Categories |
| Performance |
| Operating Software |
| System-on-Module |
| NVIDIA Jetson SOM |
| Operating System |
| Graphics |
| AI Accelerator |
| Number of GPUs |
| GPU Architecture |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| Digital I/O |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| Power |
| Power Input |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Certification |
| Mechanical Properties |
| Dimensions |
| Mounting Options |
| Diamond Systems ZIGGYBOX : ZIGBOX-21-HD |
| Compact Industrial TX2i Computer |
| Diamond Systems Ziggy |
| Linux |
| TX2i |
| TX2 |
| Linux |
| NVIDIA Jetson SOM |
| Single GPU Support |
| NVIDIA Pascal |
| 1x HDMI |
| HDMI |
| 1x Ethernet Ports |
| RJ45 |
| 1 x GbE LAN [RJ45] |
| GbE |
| 2x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 1 x USB 3.0 [Type A] |
| 2x Serial Ports |
| Board Connectors |
| RS-232 |
| 2 x RS232 [Board] |
|
Analog I/O [6-in, 2-out] DIO [12-lines] |
| 1 |
| eMMC |
| 32GB eMMC |
|
5.5-18V DC [Barrel Connector] 9-18V DC [Barrel Connector] |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 85°C [-40°F to 185°F] |
| Extended Temperature |
| -40°C to 85°C [-40°F to 185°F] |
|
CE FCC |
| 63mm x 67mm x 96mm (2.48" x 2.64" x 3.78") |
|
Desktop DIN Mount |
| Diamond Systems ZIGGYBOX : ZIGBOX-20-HD |
| Compact Rugged TX2 Computer |
| Diamond Systems Ziggy |
| Linux |
| TX2 |
| TX2 |
| Linux |
| NVIDIA Jetson SOM |
| Single GPU Support |
| NVIDIA Pascal |
| 1x HDMI |
| HDMI |
| 1x Ethernet Ports |
| RJ45 |
| 1 x GbE LAN [RJ45] |
| GbE |
| 2x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 1 x USB 3.0 [Type A] |
| 2x Serial Ports |
| Board Connectors |
| RS-232 |
| 2 x RS232 [Board] |
|
Analog I/O [6-in, 2-out] DIO [12-lines] |
| 1 |
| eMMC |
| 32GB eMMC |
|
5.5-18V DC [Barrel Connector] 9-18V DC [Barrel Connector] |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 85°C [-40°F to 185°F] |
| Extended Temperature |
| -40°C to 85°C [-40°F to 185°F] |
|
CE FCC |
| 63mm x 67mm x 96mm (2.48" x 2.64" x 3.78") |
|
Desktop DIN Mount |
