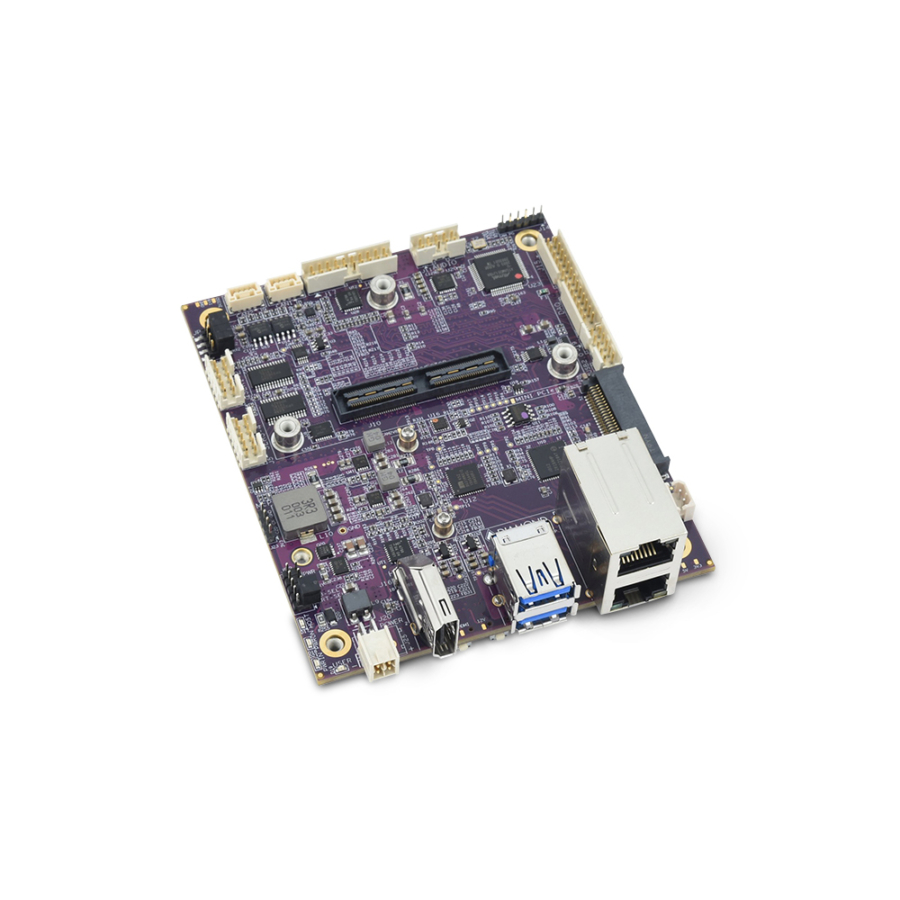

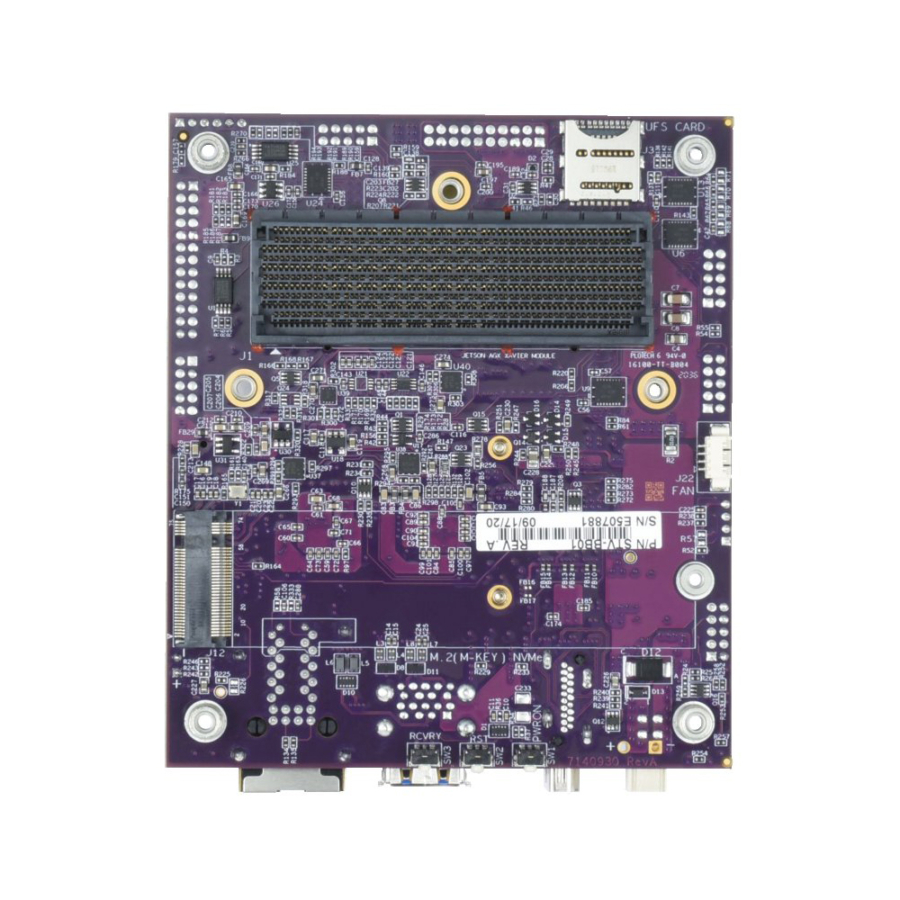

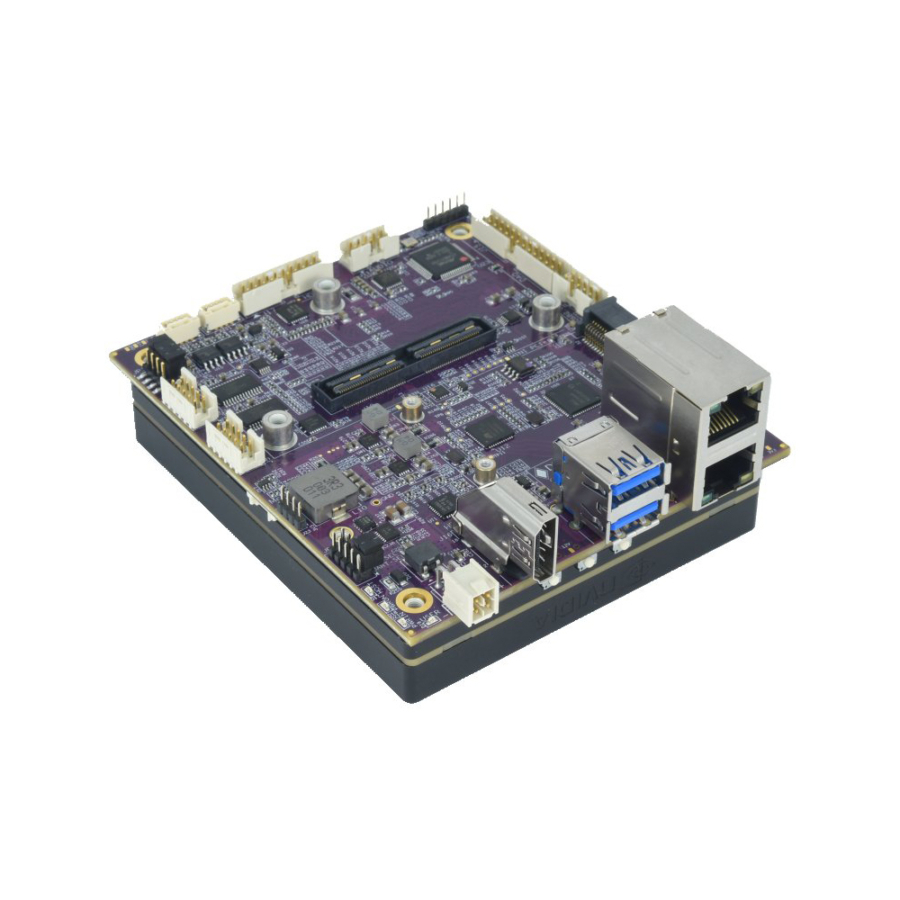

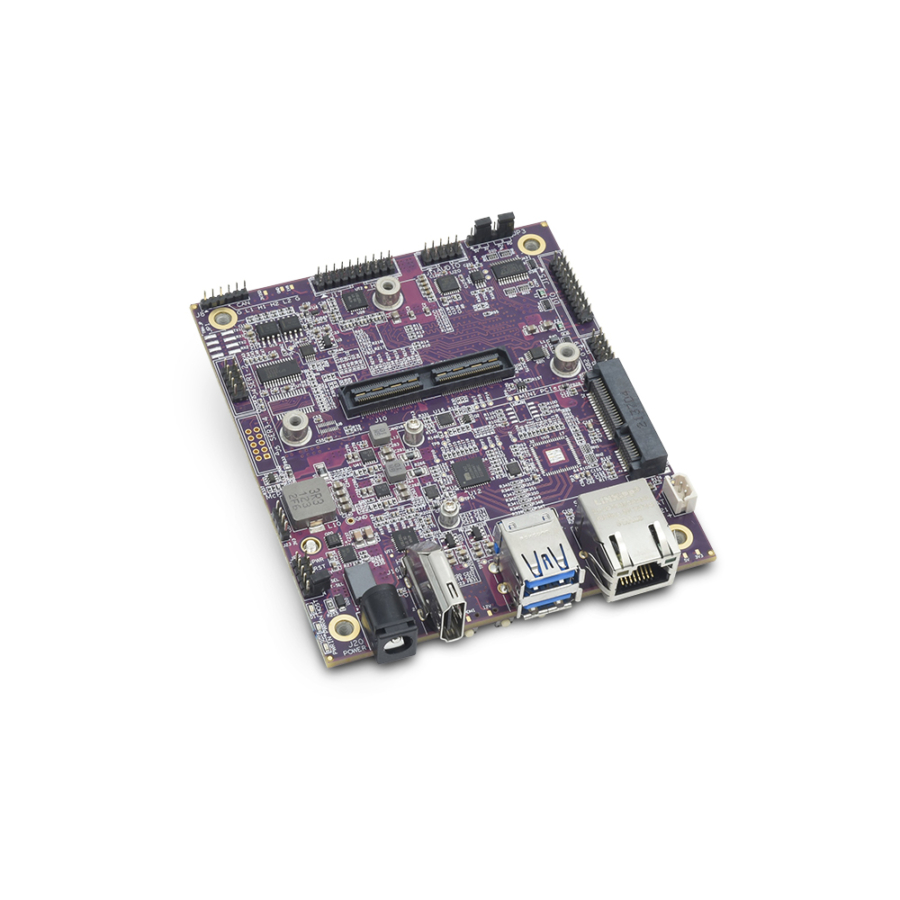

Diamond Systems STEVIE
Things Embedded are an official Diamond Systems UK distributor and can supply the STEVIE fully configured and imaged.
- Select Variant STEVIE
-
STV-BB03
JETBOX-STEVIE with 1x Gigabit Ethernet, 2x RS-232/422/485 -
STV-BB02
JETBOX-STEVIE with 1x Gigabit Ethernet, 4x RS-232/422/485, ADC/DAC -
STV-BB01
JETBOX-STEVIE with 2x Gigabit Ethernet, 4x RS-232/422/485, ADC/DAC -
STV-AGX32-03
JETBOX-STEVIE with SOM, 1x Gigabit Ethernet, 2x RS-232/422/485 -
STV-AGX32-02
JETBOX-STEVIE with SOM, 1x Gigabit Ethernet, 4x RS-232/422/485, ADC/DAC -
STV-AGX32-01
JETBOX-STEVIE with SOM, 2x Gigabit Ethernet, 4x RS-232/422/485, ADC/DAC
Available in 6 Variants
| Overview |
|---|
| Brand & Model |
| Sub Categories |
| Performance |
| Operating Software |
| System-on-Module |
| NVIDIA Jetson SOM |
| Operating System |
| Graphics |
| AI Accelerator |
| Number of GPUs |
| GPU Architecture |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| CANbus |
| CANbus Connector Type |
| CANbus Protocol |
| GPIO |
| MIPI Interface |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| mPCIe |
| mPCIe Support |
| mPCIe Slot Size |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| NVMe |
| Power |
| Power Input |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Certification |
| Mechanical Properties |
| Dimensions |
| Diamond Systems STEVIE : STV-BB03 |
| Compact Jetson AGX Xavier Carrier Board with Dual GbE |
| Diamond Systems Stevie |
| Linux |
|
AGX Xavier (32GB) AGX Xavier (64GB) |
| AGX Xavier |
| Linux Ubuntu 18.04 |
| NVIDIA Jetson SOM |
| Single GPU Support |
| NVIDIA Volta |
| 1x HDMI |
| HDMI |
| 1x Ethernet Ports |
| RJ45 |
| 1 x GbE LAN [RJ45] |
| GbE |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Type A] 2 x USB 3.1 Gen 1 [Type A] |
| 2x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 2 x RS232/422/485 [Board] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
| GPIO [13-lines] |
| 3x 4 Lane MIPI CSI-2 |
| 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4] [2280] |
| M-Key |
| PCIe |
| 2280 |
| 1x mPCIe Slots |
| 1 x mPCIe [PCIe/USB] |
|
PCIe USB |
| Full-Size |
| Optional WiFi/Bluetooth |
| Wireless |
| 3 |
|
eMMC M.2 SSD Micro SD |
|
1x M.2 SSD 1x Micro SD 32GB eMMC |
| NVMe SSD Support |
| 9-20V DC [Barrel Connector] |
| Optional Heatsink |
| Fanless |
| -25°C to 70°C [-13°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
|
CE FCC |
| 92mm x 106mm (3.62" x 4.17") |
| Diamond Systems STEVIE : STV-BB02 |
| Industrial NVIDIA Jetson AGX Xavier Carrier Board with ADC/DAC |
| Diamond Systems Stevie |
| Linux |
|
AGX Xavier (32GB) AGX Xavier (64GB) |
| AGX Xavier |
| Linux Ubuntu 18.04 |
| NVIDIA Jetson SOM |
| Single GPU Support |
| NVIDIA Volta |
| 1x HDMI |
| HDMI |
| 1x Ethernet Ports |
| RJ45 |
| 1 x GbE LAN [RJ45] |
| GbE |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Type A] 2 x USB 3.1 Gen 1 [Type A] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
|
ADC [6-lines] DAC [2-lines] GPIO [13-lines] |
| 3x 4 Lane MIPI CSI-2 |
| 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4] [2280] |
| M-Key |
| PCIe |
| 2280 |
| 1x mPCIe Slots |
| 1 x mPCIe [PCIe/USB] |
|
PCIe USB |
| Full-Size |
| Optional WiFi/Bluetooth |
| Wireless |
| 3 |
|
eMMC M.2 SSD Micro SD |
|
1x M.2 SSD 1x Micro SD 32GB eMMC |
| NVMe SSD Support |
| 9-20V DC [Terminal Block] |
| Optional Heatsink |
| Fanless |
| -25°C to 70°C [-13°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
|
CE FCC |
| 92mm x 106mm (3.62" x 4.17") |
| Diamond Systems STEVIE : STV-BB01 |
| NVIDIA Jetson AGX Xavier Industrial Carrier Board with 4 Serial COM Ports |
| Diamond Systems Stevie |
| Linux |
|
AGX Xavier (32GB) AGX Xavier (64GB) |
| AGX Xavier |
| Linux Ubuntu 18.04 |
| NVIDIA Jetson SOM |
| Single GPU Support |
| NVIDIA Volta |
| 1x HDMI |
| HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Type A] 2 x USB 3.1 Gen 1 [Type A] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
|
ADC [6-lines] DAC [2-lines] GPIO [13-lines] |
| 3x 4 Lane MIPI CSI-2 |
| 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4] [2280] |
| M-Key |
| PCIe |
| 2280 |
| 1x mPCIe Slots |
| 1 x mPCIe [PCIe/USB] |
|
PCIe USB |
| Full-Size |
| Optional WiFi/Bluetooth |
| Wireless |
| 3 |
|
eMMC M.2 SSD Micro SD |
|
1x M.2 SSD 1x Micro SD 32GB eMMC |
| NVMe SSD Support |
| 9-20V DC [Terminal Block] |
| Optional Heatsink |
| Fanless |
| -25°C to 70°C [-13°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
|
CE FCC |
| 92mm x 106mm (3.62" x 4.17") |
| Diamond Systems STEVIE : STV-AGX32-03 |
| Compact Jetson 32GB AGX Xavier Carrier Board with Dual GbE |
| Diamond Systems Stevie |
| Linux |
|
AGX Xavier (32GB) AGX Xavier (64GB) |
| AGX Xavier |
| Linux Ubuntu 18.04 |
| NVIDIA Jetson SOM |
| Single GPU Support |
| NVIDIA Volta |
| 1x HDMI |
| HDMI |
| 1x Ethernet Ports |
| RJ45 |
| 1 x GbE LAN [RJ45] |
| GbE |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Type A] 2 x USB 3.1 Gen 1 [Type A] |
| 2x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 2 x RS232/422/485 [Board] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
| GPIO [13-lines] |
| 3x 4 Lane MIPI CSI-2 |
| 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4] [2280] |
| M-Key |
| PCIe |
| 2280 |
| 1x mPCIe Slots |
| 1 x mPCIe [PCIe/USB] |
|
PCIe USB |
| Full-Size |
| Optional WiFi/Bluetooth |
| Wireless |
| 3 |
|
eMMC M.2 SSD Micro SD |
|
1x M.2 SSD 1x Micro SD 32GB eMMC |
| NVMe SSD Support |
| 9-20V DC [Barrel Connector] |
| Optional Heatsink |
| Fanless |
| -25°C to 70°C [-13°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
|
CE FCC |
| 92mm x 106mm (3.62" x 4.17") |
| Diamond Systems STEVIE : STV-AGX32-02 |
| Industrial NVIDIA Jetson 32GB AGX Xavier Carrier Board with ADC/DAC |
| Diamond Systems Stevie |
| Linux |
|
AGX Xavier (32GB) AGX Xavier (64GB) |
| AGX Xavier |
| Linux Ubuntu 18.04 |
| NVIDIA Jetson SOM |
| Single GPU Support |
| NVIDIA Volta |
| 1x HDMI |
| HDMI |
| 1x Ethernet Ports |
| RJ45 |
| 1 x GbE LAN [RJ45] |
| GbE |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Type A] 2 x USB 3.1 Gen 1 [Type A] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
|
ADC [6-lines] DAC [2-lines] GPIO [13-lines] |
| 3x 4 Lane MIPI CSI-2 |
| 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4] [2280] |
| M-Key |
| PCIe |
| 2280 |
| 1x mPCIe Slots |
| 1 x mPCIe [PCIe/USB] |
|
PCIe USB |
| Full-Size |
| Optional WiFi/Bluetooth |
| Wireless |
| 3 |
|
eMMC M.2 SSD Micro SD |
|
1x M.2 SSD 1x Micro SD 32GB eMMC |
| NVMe SSD Support |
| 9-20V DC [Terminal Block] |
| Optional Heatsink |
| Fanless |
| -25°C to 70°C [-13°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
|
CE FCC |
| 92mm x 106mm (3.62" x 4.17") |
| Diamond Systems STEVIE : STV-AGX32-01 |
| NVIDIA Jetson 32GB AGX Xavier Industrial Carrier Board with 4 Serial COM Ports |
| Diamond Systems Stevie |
| Linux |
|
AGX Xavier (32GB) AGX Xavier (64GB) |
| AGX Xavier |
| Linux Ubuntu 18.04 |
| NVIDIA Jetson SOM |
| Single GPU Support |
| NVIDIA Volta |
| 1x HDMI |
| HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Type A] 2 x USB 3.1 Gen 1 [Type A] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
|
ADC [6-lines] DAC [2-lines] GPIO [13-lines] |
| 3x 4 Lane MIPI CSI-2 |
| 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4] [2280] |
| M-Key |
| PCIe |
| 2280 |
| 1x mPCIe Slots |
| 1 x mPCIe [PCIe/USB] |
|
PCIe USB |
| Full-Size |
| Optional WiFi/Bluetooth |
| Wireless |
| 3 |
|
eMMC M.2 SSD Micro SD |
|
1x M.2 SSD 1x Micro SD 32GB eMMC |
| NVMe SSD Support |
| 9-20V DC [Terminal Block] |
| Optional Heatsink |
| Heatsink |
| -25°C to 70°C [-13°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
|
CE FCC |
| 92mm x 106mm (3.62" x 4.17") |
