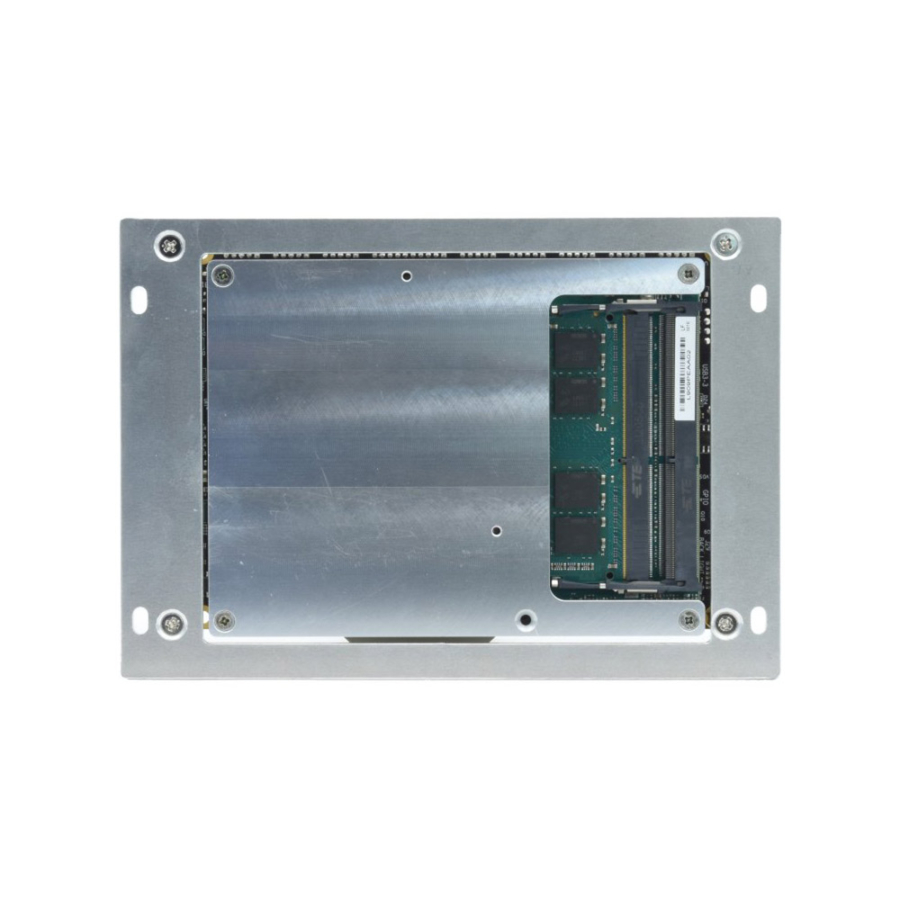

Diamond Systems JASPER
Things Embedded are an official Diamond Systems UK distributor and can supply the JASPER JSP-1185G7E-64G-03A fully configured and imaged.
- Select Variant JASPER
-
JSP-1185G7E-64G-03A
Jasper with Intel 11th Gen Core i7, 64GB RAM, PCIe/104 Expansion, and Full DAQ -
JSP-1185G7E-64G-02D
Jasper with Intel 11th Gen Core i7, 64GB RAM, PCIe/104 Expansion, and Digital I/O -
JSP-BB03A
Jasper COM Carrier Board with PCIe/104 Expansion and Full DAQ -
JSP-BB02D
Jasper COM Carrier Board with PCIe/104 Expansion and Digital I/O -
JSP-BB01D
Jasper COM Carrier Board
Available in 5 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| Operating System |
| Graphics |
| Multi Display Support |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| GPIO |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| mPCIe |
| mPCIe Support |
| mPCIe Slot Size |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| NVMe |
| Power |
| Power Input |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| Diamond Systems JASPER : JSP-1185G7E-64G-03A |
| Ruggedized 3.5" Intel Core i7 Military SBC with Data Acquisition |
| 64GB |
| 2 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
|
i7-1185G7E i7-1185GRE |
| 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
|
Linux Windows 10 |
| Dual Display Support |
|
2x HDMI 2x LVDS |
|
HDMI LVDS |
| 2x Ethernet Ports |
| Board Connectors |
| 2 x GbE LAN [Board] |
| GbE |
| Intel I210 |
| 4x USB Ports |
| Board Connectors |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Board] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| GPIO [4-in, 4-out] |
| 2x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] |
|
E-Key M-Key |
|
PCIe SATA USB |
|
2230 2280 |
| 2x mPCIe Slots |
| 2 x mPCIe [SATA/USB/PCIe] |
|
PCIe SATA USB |
| Full-Size |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 3 |
|
M.2 SSD mSATA SSD |
|
1x M.2 SSD 2x mSATA |
| NVMe SSD Support |
|
12V DC 18-36V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 85°C [-40°F to 185°F] |
| Extended Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
| Diamond Systems JASPER : JSP-1185G7E-64G-02D |
| Rugged 3.5" Military Grade Single Board Computer with Intel Core i7 and DIO |
| 64GB |
| 2 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
|
i7-1185G7E i7-1185GRE |
| 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
|
Linux Windows 10 |
| Dual Display Support |
|
2x HDMI 2x LVDS |
|
HDMI LVDS |
| 2x Ethernet Ports |
| Board Connectors |
| 2 x GbE LAN [Board] |
| GbE |
| Intel I210 |
| 4x USB Ports |
| Board Connectors |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Board] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| GPIO [4-in, 4-out] |
| 2x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] |
|
E-Key M-Key |
|
PCIe SATA USB |
|
2230 2280 |
| 2x mPCIe Slots |
| 2 x mPCIe [SATA/USB/PCIe] |
|
PCIe SATA USB |
| Full-Size |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 3 |
|
M.2 SSD mSATA SSD |
|
1x M.2 SSD 2x mSATA |
| NVMe SSD Support |
|
12V DC 18-36V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 85°C [-40°F to 185°F] |
| Extended Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
| Diamond Systems JASPER : JSP-BB03A |
| Rugged 3.5" COM Express Single Board Computer with ADC and DAC |
| 64GB |
| 2 |
| DDR4 |
|
Linux Windows |
| 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
|
Linux Windows 10 |
| Dual Display Support |
|
2x HDMI 2x LVDS |
|
HDMI LVDS |
| 2x Ethernet Ports |
| Board Connectors |
| 2 x GbE LAN [Board] |
| GbE |
| Intel I210 |
| 4x USB Ports |
| Board Connectors |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Board] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| GPIO [4-in, 4-out] |
| 2x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] |
|
E-Key M-Key |
|
PCIe SATA USB |
|
2230 2280 |
| 2x mPCIe Slots |
| 2 x mPCIe [SATA/USB/PCIe] |
|
PCIe SATA USB |
| Full-Size |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 3 |
|
M.2 SSD mSATA SSD |
|
1x M.2 SSD 2x mSATA |
| NVMe SSD Support |
|
12V DC 18-36V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 85°C [-40°F to 185°F] |
| Extended Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
| Diamond Systems JASPER : JSP-BB02D |
| Rugged Military Grade SBC with PCIe/104 |
| 64GB |
| 2 |
| DDR4 |
|
Linux Windows |
| 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
|
Linux Windows 10 |
| Dual Display Support |
|
2x HDMI 2x LVDS |
|
HDMI LVDS |
| 2x Ethernet Ports |
| Board Connectors |
| 2 x GbE LAN [Board] |
| GbE |
| Intel I210 |
| 4x USB Ports |
| Board Connectors |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Board] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| GPIO [4-in, 4-out] |
| 2x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] |
|
E-Key M-Key |
|
PCIe SATA USB |
|
2230 2280 |
| 2x mPCIe Slots |
| 2 x mPCIe [SATA/USB/PCIe] |
|
PCIe SATA USB |
| Full-Size |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 3 |
|
M.2 SSD mSATA SSD |
|
1x M.2 SSD 2x mSATA |
| NVMe SSD Support |
|
12V DC 18-36V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 85°C [-40°F to 185°F] |
| Extended Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
| Diamond Systems JASPER : JSP-BB01D |
| Rugged 3.5" COM Express SBC with Latching Connectors |
| 64GB |
| 2 |
| DDR4 |
|
Linux Windows |
| 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
|
Linux Windows 10 |
| Dual Display Support |
|
2x HDMI 2x LVDS |
|
HDMI LVDS |
| 2x Ethernet Ports |
| Board Connectors |
| 2 x GbE LAN [Board] |
| GbE |
| Intel I210 |
| 4x USB Ports |
| Board Connectors |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Board] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| GPIO [4-in, 4-out] |
| 2x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] |
|
E-Key M-Key |
|
PCIe SATA USB |
|
2230 2280 |
| 2x mPCIe Slots |
| 2 x mPCIe [SATA/USB/PCIe] |
|
PCIe SATA USB |
| Full-Size |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 3 |
|
M.2 SSD mSATA SSD |
|
1x M.2 SSD 2x mSATA |
| NVMe SSD Support |
|
12V DC 18-36V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 85°C [-40°F to 185°F] |
| Extended Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
