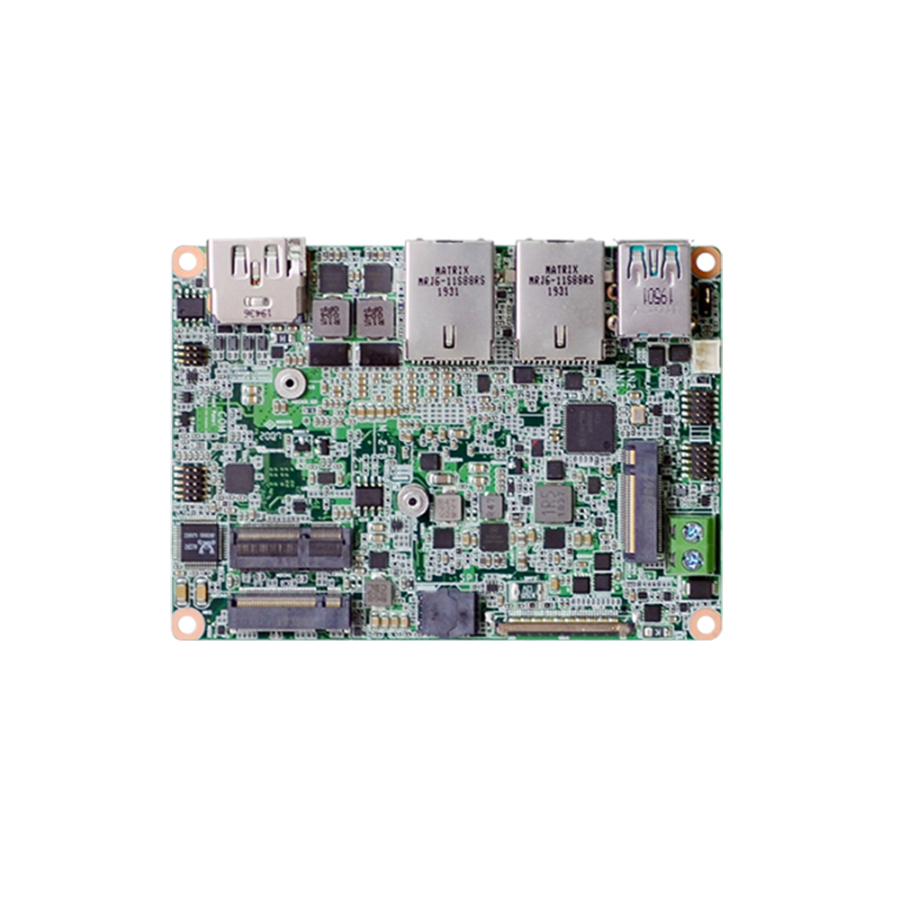

WL051
Things Embedded are an official DFI UK distributor and can supply the WL051 fully configured and imaged.
- Select Variant WL051
-
WL051-ECC-4305UE
WL051 with Wide Temperature and Core 4305UE CPU -
WL051-ECC-8145UE
WL051 with Wide Temperature and Core i3-8145UE CPU -
WL051-ECC-8365UE
WL051 with Wide Temperature, Intel AMT, and Core i5-8365UE CPU -
WL051-ECC-8665UE
WL051 with Wide Temperature, Intel AMT, and Core i7-8665UE CPU -
WL051-BCA-4305UE
WL051 with Standard Temperature and Core 4305UE CPU -
WL051-BCA-8145UE
WL051 with Standard Temperature and Core i3-8145UE CPU -
WL051-BCA-8365UE
WL051 with Standard Temperature, Intel AMT, and Core i5-8365UE CPU -
WL051-BCA-8665UE
WL051 with Standard Temperature, Intel AMT, and Core i7-8665UE CPU
Available in 8 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| BIOS |
| Secure Crypto Processor |
| Operating System |
| Graphics |
| Integrated GPU |
| Graphics Family |
| Display Standards |
| Multi Display Support |
| 4K Support |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| Digital I/O |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| Power |
| Power Input |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Certification |
| Mechanical Properties |
| Dimensions |
| DFI WL051-ECC-4305UE |
| Pico ITX Fanless Motherboard with Celeron 4305UE |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| 4305UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| AMI |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| DP++ |
| Dual Display Support |
| 4K Display Support |
|
1x Display Port / HDMI 1x eDP |
|
Display Port eDP HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I210IT Intel I219LM Intel i219V |
| 4x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Type A] |
| 1x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Board] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
| M.2 SSD |
| 2x M.2 SSD |
| 12V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -30°C to 80°C [-22°F to 176°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 90% (Non-condensing) |
|
CE FCC RoHS UKCA |
| 100mm x 72mm (3.94" x 2.83") |
| DFI WL051-ECC-8145UE |
| Wide Temperature Pico ITX i3-8145UE Industrial SBC |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i3-8145UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| AMI |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| DP++ |
| Dual Display Support |
| 4K Display Support |
|
1x Display Port / HDMI 1x eDP |
|
Display Port eDP HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I210IT Intel I219LM Intel i219V |
| 4x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Type A] |
| 1x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Board] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
| M.2 SSD |
| 2x M.2 SSD |
| 12V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -30°C to 80°C [-22°F to 176°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 90% (Non-condensing) |
|
CE FCC RoHS UKCA |
| 100mm x 72mm (3.94" x 2.83") |
| DFI WL051-ECC-8365UE |
| Intel Core i5-8365UE Industrial 2.5" Dual LAN Pico ITX Fanless Motherboard |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i5-8365UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| AMI |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| DP++ |
| Dual Display Support |
| 4K Display Support |
|
1x Display Port / HDMI 1x eDP |
|
Display Port eDP HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I210IT Intel I219LM Intel i219V |
| 4x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Type A] |
| 1x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Board] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
| M.2 SSD |
| 2x M.2 SSD |
| 12V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -30°C to 80°C [-22°F to 176°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 90% (Non-condensing) |
|
CE FCC RoHS UKCA |
| 100mm x 72mm (3.94" x 2.83") |
| DFI WL051-ECC-8665UE |
| Wide Temperature 8th Gen Pico ITX i7 Motherboard |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i7-8665UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| AMI |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| DP++ |
| Dual Display Support |
| 4K Display Support |
|
1x Display Port / HDMI 1x eDP |
|
Display Port eDP HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I210IT Intel I219LM Intel i219V |
| 4x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Type A] |
| 1x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Board] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
| M.2 SSD |
| 2x M.2 SSD |
| 12V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -30°C to 80°C [-22°F to 176°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 90% (Non-condensing) |
|
CE FCC RoHS UKCA |
| 100mm x 72mm (3.94" x 2.83") |
| DFI WL051-BCA-4305UE |
| Pico ITX x86 Celeron 4305UE Motherboard |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Celeron |
| 8th Gen Whiskey Lake |
| 4305UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| AMI |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| DP++ |
| Dual Display Support |
| 4K Display Support |
|
1x Display Port / HDMI 1x eDP |
|
Display Port eDP HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I210IT Intel I219LM Intel i219V |
| 4x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Type A] |
| 1x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Board] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
| M.2 SSD |
| 2x M.2 SSD |
| 12V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -5°C to 60°C [23°F to 147°F] |
| Standard Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 90% (Non-condensing) |
|
CE FCC RoHS UKCA |
| 100mm x 72mm (3.94" x 2.83") |
| DFI WL051-BCA-8145UE |
| Industrial 2.5" Pico ITX Mobo with Intel Core i3-8145UE and Dual Ethernet |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i3-8145UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| AMI |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| DP++ |
| Dual Display Support |
| 4K Display Support |
|
1x Display Port / HDMI 1x eDP |
|
Display Port eDP HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I210IT Intel I219LM Intel i219V |
| 4x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Type A] |
| 1x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Board] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
| M.2 SSD |
| 2x M.2 SSD |
| 12V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -5°C to 60°C [23°F to 147°F] |
| Standard Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 90% (Non-condensing) |
|
CE FCC RoHS UKCA |
| 100mm x 72mm (3.94" x 2.83") |
| DFI WL051-BCA-8365UE |
| Pico-ITX Intel i5-8365UE Motherboard with 2 GbE |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i5-8365UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| AMI |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| DP++ |
| Dual Display Support |
| 4K Display Support |
|
1x Display Port / HDMI 1x eDP |
|
Display Port eDP HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I210IT Intel I219LM Intel i219V |
| 4x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Type A] |
| 1x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Board] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
| M.2 SSD |
| 2x M.2 SSD |
| 12V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -5°C to 60°C [23°F to 147°F] |
| Standard Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 90% (Non-condensing) |
|
CE FCC RoHS UKCA |
| 100mm x 72mm (3.94" x 2.83") |
| DFI WL051-BCA-8665UE |
| Intel Core i7-8665UE Industrial 2.5" Dual LAN Pico-ITX Motherboard |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i7-8665UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| AMI |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| DP++ |
| Dual Display Support |
| 4K Display Support |
|
1x Display Port / HDMI 1x eDP |
|
Display Port eDP HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I210IT Intel I219LM Intel i219V |
| 4x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 2 x USB 3.1 Gen 1 [Type A] |
| 1x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Board] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 |
| Optional WiFi/Bluetooth |
| Wireless |
| 2 |
| M.2 SSD |
| 2x M.2 SSD |
| 12V DC [Terminal Block] |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -5°C to 60°C [23°F to 147°F] |
| Standard Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 90% (Non-condensing) |
|
CE FCC RoHS UKCA |
| 100mm x 72mm (3.94" x 2.83") |
