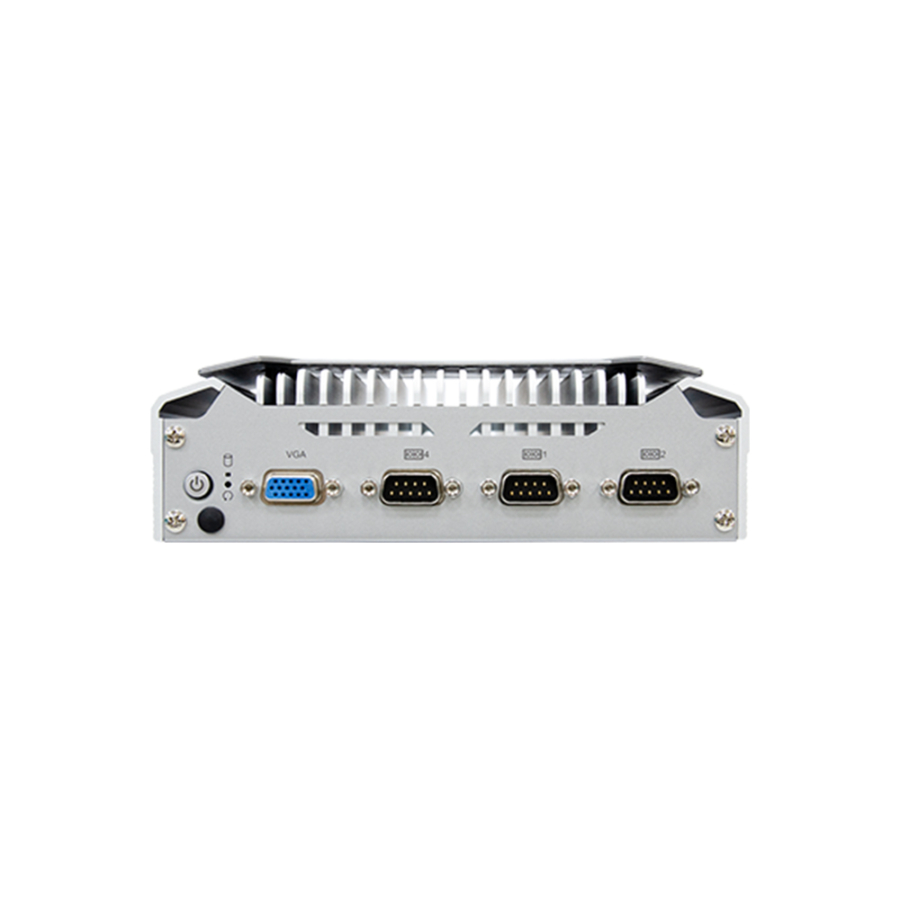

EC70A-TGU
Things Embedded are an official DFI UK distributor and can supply the EC70A-TGU fully configured and imaged.
Available in 3 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| BIOS |
| Operating System |
| Graphics |
| Integrated GPU |
| Graphics Family |
| Multi Display Support |
| 4K Support |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| Digital I/O |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| NVMe |
| Power |
| Power Input |
| Power Support Modes |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Shock |
| Vibration |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| Mounting Options |
| DFI EC70A-TGU (SKU3) |
| Intel Core Tiger Lake Tiny Embedded PC |
| 40GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
|
i3-1115G4E i3-1115GRE i5-1145G7E i5-1145GRE i7-1185G7E i7-1185GRE |
|
1x DDR4 3200MHz SO-DIMM Slot, 32GB 8GB Soldered On-board |
| AMI |
|
Linux Windows 10 |
| Intel UHD Series |
|
Intel Iris Xe Graphics Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
|
1x VGA 2x HDMI |
|
HDMI VGA |
| 4x Ethernet Ports |
| RJ45 |
| 4 x GbE LAN [RJ45] |
| GbE |
|
Intel I210IT Intel I225IT |
| 2x USB Ports |
| Type A |
| USB3 |
| 2 x USB 3.1 Gen 1 [Type A] |
| 4x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
|
2 x RS232 [DB9] 2x RS232/422/485 [DB9] |
| DIO [DB9] |
| 3x M.2 Expansion Slots |
|
1x M.2 B-Key [USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2280] |
|
B-Key E-Key M-Key |
|
PCIe USB |
|
2230 2280 3042 3052 |
| 1 |
| M.2 SSD |
| 1x M.2 SSD |
| NVMe SSD Support |
| 9-36V DC [Barrel Connector] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -20°C to 85°C [-4°F to 185°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC RoHS |
| 1.28 Kg (2.82 Lbs) |
| 182mm x 57mm x 119mm (7.17" x 2.24" x 4.69") |
|
Desktop Wall Mount |
| DFI EC70A-TGU (SKU2) |
| Intel Core Tiger Lake Mini Box PC |
| 40GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
|
i3-1115G4E i3-1115GRE i5-1145G7E i5-1145GRE i7-1185G7E i7-1185GRE |
|
1x DDR4 3200MHz SO-DIMM Slot, 32GB 8GB Soldered On-board |
| AMI |
|
Linux Windows 10 |
| Intel UHD Series |
|
Intel Iris Xe Graphics Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
|
1x VGA 2x HDMI |
|
HDMI VGA |
| 3x Ethernet Ports |
| RJ45 |
| 3 x GbE LAN [RJ45] |
| GbE |
|
Intel I210IT Intel I225IT |
| 4x USB Ports |
| Type A |
| USB3 |
| 4 x USB 3.1 Gen 1 [Type A] |
| 4x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
|
2 x RS232 [DB9] 2x RS232/422/485 [DB9] |
| DIO [DB9] |
| 3x M.2 Expansion Slots |
|
1x M.2 B-Key [USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2280] |
|
B-Key E-Key M-Key |
|
PCIe USB |
|
2230 2280 3042 3052 |
| 1 |
| M.2 SSD |
| 1x M.2 SSD |
| NVMe SSD Support |
| 9-36V DC [Barrel Connector] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -20°C to 85°C [-4°F to 185°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC RoHS |
| 1.28 Kg (2.82 Lbs) |
| 182mm x 57mm x 119mm (7.17" x 2.24" x 4.69") |
|
Desktop Wall Mount |
| DFI EC70A-TGU (SKU1) |
| Ultra Compact Intel Core Tiger Lake Box PC |
| 40GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
|
i3-1115G4E i3-1115GRE i5-1145G7E i5-1145GRE i7-1185G7E i7-1185GRE |
|
1x DDR4 3200MHz SO-DIMM Slot, 32GB 8GB Soldered On-board |
| AMI |
|
Linux Windows 10 |
| Intel UHD Series |
|
Intel Iris Xe Graphics Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
|
1x VGA 2x HDMI |
|
HDMI VGA |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel I210IT Intel I225IT |
| 6x USB Ports |
| Type A |
| USB3 |
| 6 x USB 3.1 Gen 1 [Type A] |
| 4x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
|
2 x RS232 [DB9] 2x RS232/422/485 [DB9] |
| DIO [DB9] |
| 3x M.2 Expansion Slots |
|
1x M.2 B-Key [USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2280] |
|
B-Key E-Key M-Key |
|
PCIe USB |
|
2230 2280 3042 3052 |
| 1 |
| M.2 SSD |
| 1x M.2 SSD |
| NVMe SSD Support |
| 9-36V DC [Barrel Connector] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -20°C to 85°C [-4°F to 185°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC RoHS |
| 1.28 Kg (2.82 Lbs) |
| 182mm x 57mm x 119mm (7.17" x 2.24" x 4.69") |
|
Desktop Wall Mount |
