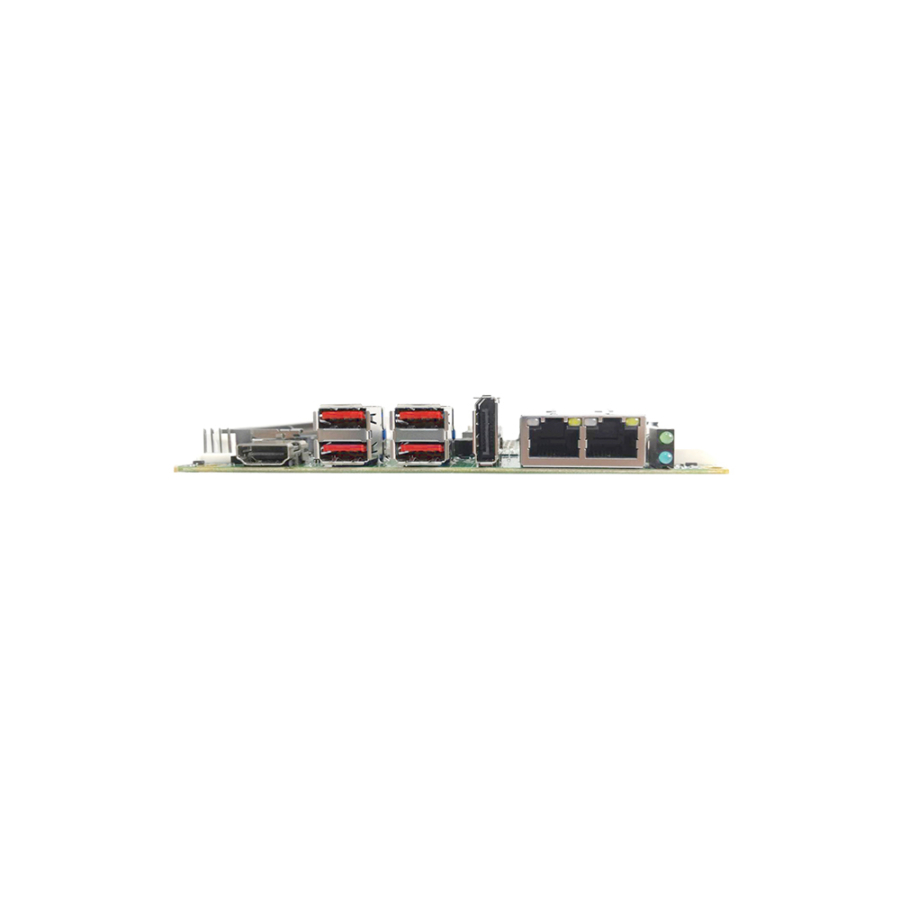

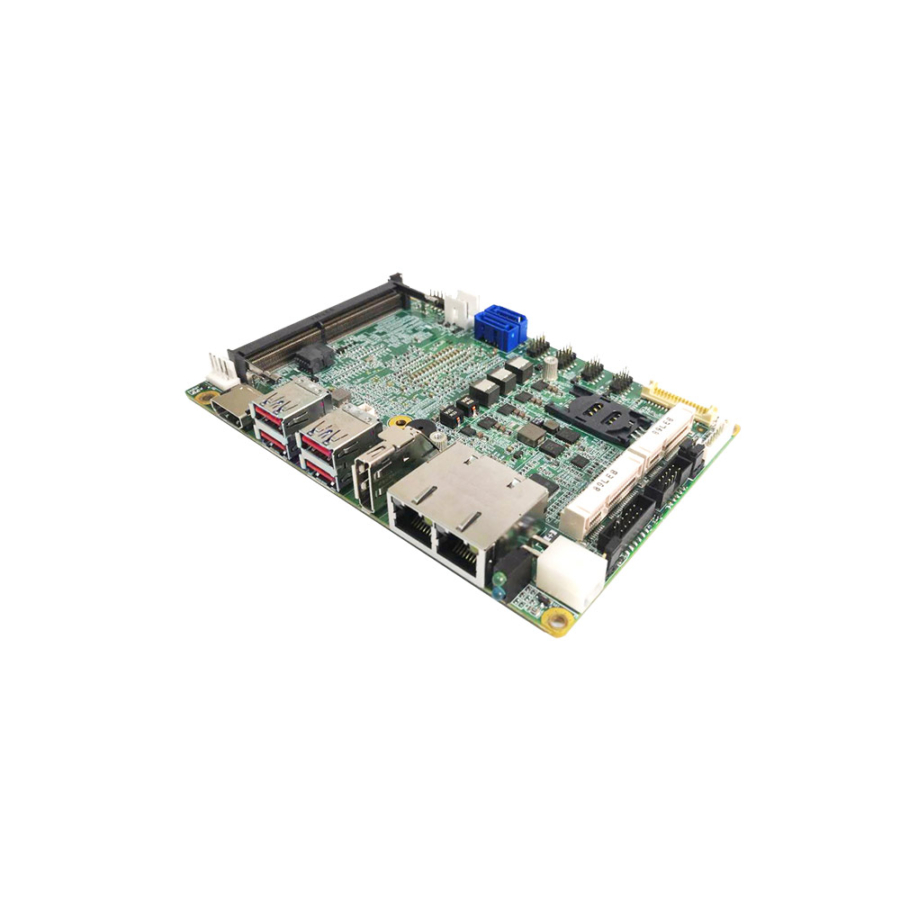

CT-DWL01
Things Embedded are an official C&T Solution UK distributor and can supply the CT-DWL01 fully configured and imaged.
Available in 4 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| Secure Crypto Processor |
| Operating System |
| Graphics |
| Integrated GPU |
| Graphics Family |
| Display Standards |
| Multi Display Support |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| Digital I/O |
| Expansion |
| mPCIe |
| mPCIe Support |
| mPCIe Slot Size |
| SIM Slots |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| Power |
| Power Input |
| Power Support Modes |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| C&T Solution CT-DWL01-4305UE |
| 3.5" Intel 4305UE Whiskey Lake Celeron SBC |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i3-8145UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel HD Series |
| Intel HD Graphics |
|
Dual Channel LVDS eDP 1.3 |
| Dual Display Support |
|
1x Display Port 1x eDP 1x HDMI 1x LVDS |
|
Display Port eDP HDMI LVDS |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel I210IT Intel I219LM |
| 6x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| DIO [4-in, 4-out] |
| 2x mPCIe Slots |
|
1 x mPCIe [PCIe/USB] 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
mSATA SSD SATA Port |
|
1x mSATA 2x SATA Ports |
| 12V DC [4-Pin] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 10-90% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
| C&T Solution CT-DWL01-8145UE |
| 3.5" Intel Core i3 SBC Supporting 8th Gen Whiskey Lake Processors |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i3-8145UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel HD Series |
| Intel HD Graphics |
|
Dual Channel LVDS eDP 1.3 |
| Dual Display Support |
|
1x Display Port 1x eDP 1x HDMI 1x LVDS |
|
Display Port eDP HDMI LVDS |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel I210IT Intel I219LM |
| 6x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| DIO [4-in, 4-out] |
| 2x mPCIe Slots |
|
1 x mPCIe [PCIe/USB] 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
mSATA SSD SATA Port |
|
1x mSATA 2x SATA Ports |
| 12V DC [4-Pin] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 10-90% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
| C&T Solution CT-DWL01-8365UE |
| 3.5" Intel Core i5 SBC Supporting 8th Gen Whiskey Lake Processors |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i3-8145UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel HD Series |
| Intel HD Graphics |
|
Dual Channel LVDS eDP 1.3 |
| Dual Display Support |
|
1x Display Port 1x eDP 1x HDMI 1x LVDS |
|
Display Port eDP HDMI LVDS |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel I210IT Intel I219LM |
| 6x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| DIO [4-in, 4-out] |
| 2x mPCIe Slots |
|
1 x mPCIe [PCIe/USB] 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
mSATA SSD SATA Port |
|
1x mSATA 2x SATA Ports |
| 12V DC [4-Pin] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 10-90% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
| C&T Solution CT-DWL01-8665UE |
| 3.5" Intel Core i7 SBC Supporting 8th Gen Whiskey Lake Processors |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
8th Gen Whiskey Lake Intel Core |
| 8th Gen Whiskey Lake |
| i3-8145UE |
| 1x DDR4 2400MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel HD Series |
| Intel HD Graphics |
|
Dual Channel LVDS eDP 1.3 |
| Dual Display Support |
|
1x Display Port 1x eDP 1x HDMI 1x LVDS |
|
Display Port eDP HDMI LVDS |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
|
Intel I210IT Intel I219LM |
| 6x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
2 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 4x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
| 4 x RS232/422/485 [Board] |
| DIO [4-in, 4-out] |
| 2x mPCIe Slots |
|
1 x mPCIe [PCIe/USB] 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
mSATA SSD SATA Port |
|
1x mSATA 2x SATA Ports |
| 12V DC [4-Pin] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 10-90% (Non-condensing) |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 102mm (5.75" x 4.02") |
