BCO-1000-EHL-10
Things Embedded are an official C&T Solution UK distributor and can supply the BCO-1000-EHL-10 fully configured and imaged.
- Select Variant BCO-1000-EHL-10
-
BCO-1000-EHL-10-G
BCO-1000-EHL-10 with Power Ignition Module -
BCO-1000-EHL-10-H
BCO-1000-EHL-10 with HDMI Module -

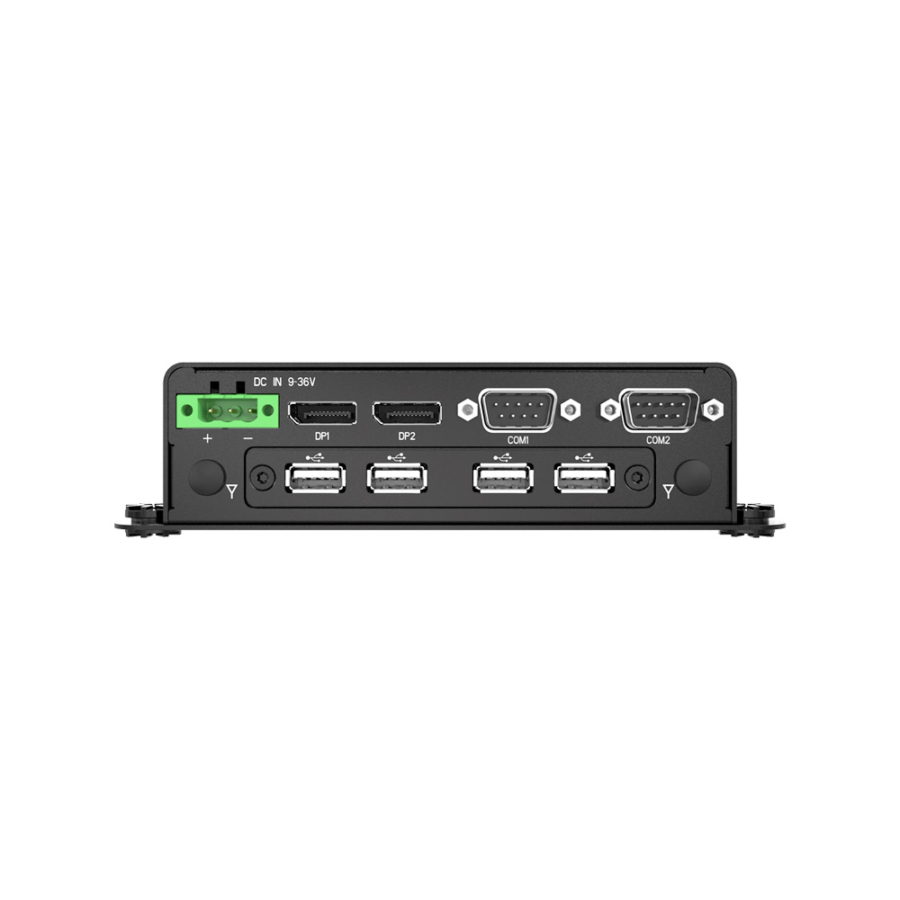

BCO-1000-EHL-10-U
BCO-1000-EHL-10 with 4x USB Module -

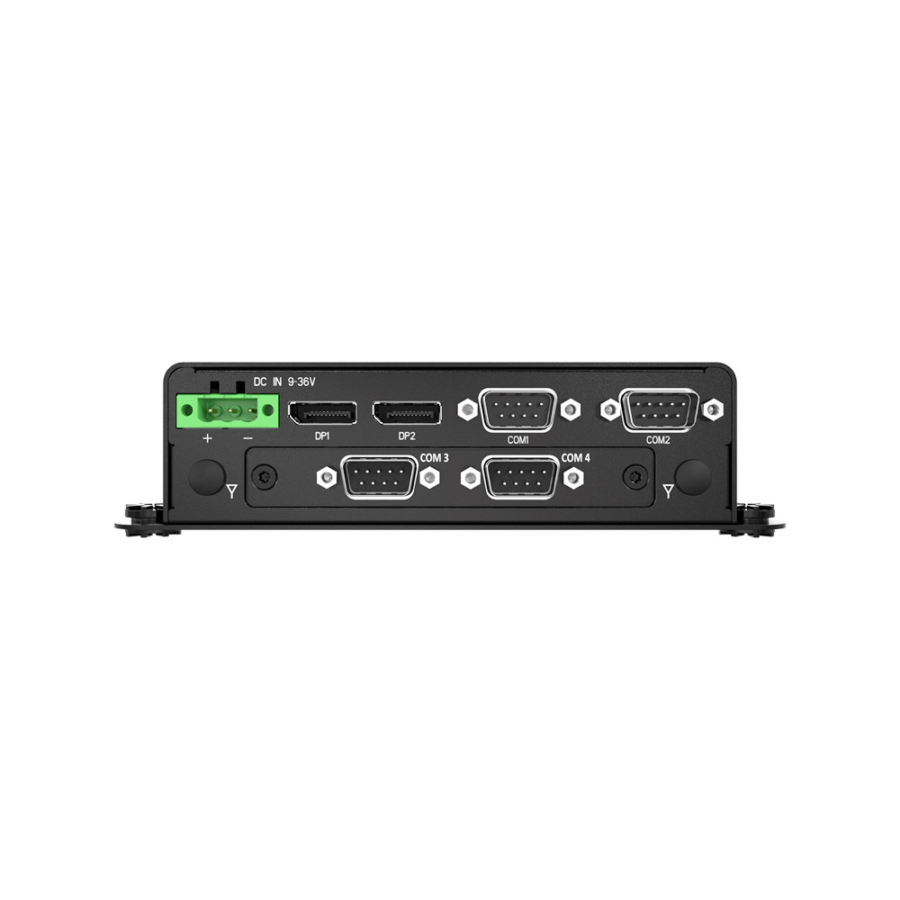

BCO-1000-EHL-10-B
BCO-1000-EHL-10 with 2x COM Module -
BCO-1000-EHL-10-A
BCO-1000-EHL-10 with DP and DIO Module -

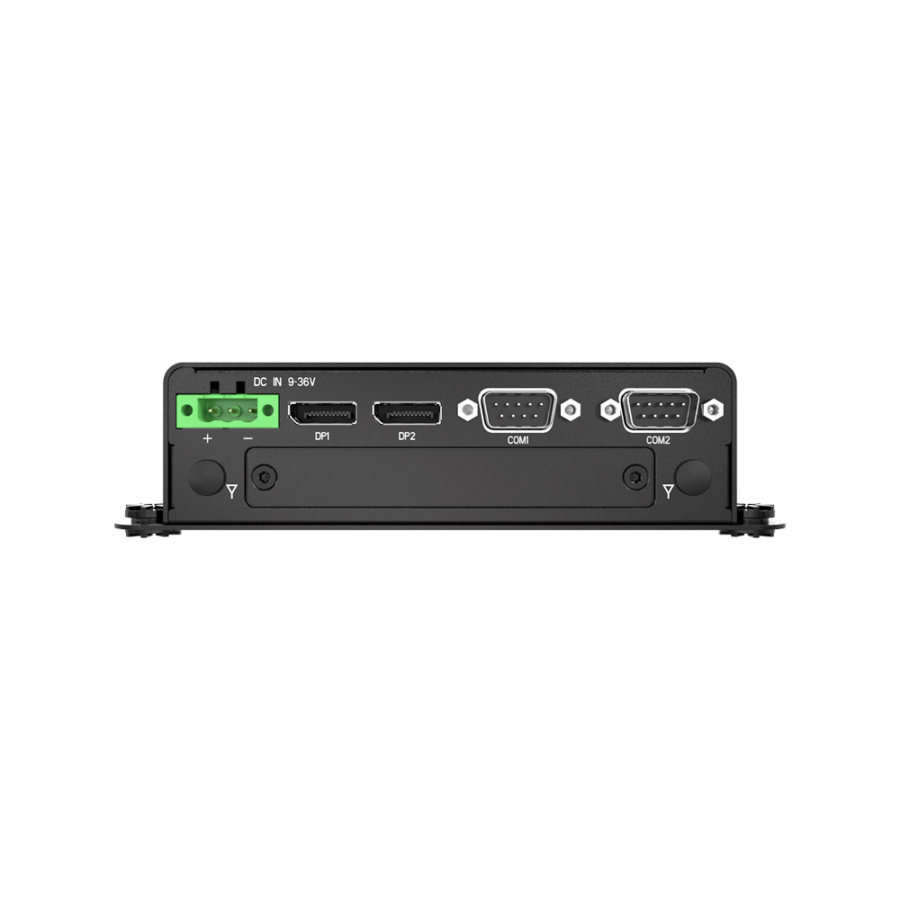

BCO-1000-EHL-10
BCO-1000-EHL-10 with 2x DP, 2x COM, 1x 2.5" SATA HDD Bay
Available in 6 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| Secure Crypto Processor |
| Operating System |
| Graphics |
| Integrated GPU |
| Graphics Family |
| Multi Display Support |
| 4K Support |
| Display Outputs |
| Display Port Type |
| Audio |
| Interface |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| CANbus |
| CANbus Connector Type |
| CANbus Protocol |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| mPCIe |
| mPCIe Support |
| mPCIe Slot Size |
| SIM Slots |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| Power |
| Power Input |
| Power Support Modes |
| Ignition Sensing |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| Mounting Options |
| C&T Solution BCO-1000-EHL-10-G |
| Celeron J6413 Mini Industrial Vehicle Computer |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
Celeron J Series Elkhart Lake Intel Celeron |
| Celeron J Series Elkhart Lake |
| J6413 |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
| 2x Display Port |
| Display Port |
|
Line-Out Mic-In |
| 2x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 1 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel I210 Intel I225 |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 3 x USB 3.2 Gen 2 [Type A] |
| 2x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 2x RS232/422/485 [DB9] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
| 1x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] |
| B-Key |
|
PCIe SIM USB |
|
2242 3042 3052 |
| 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
2.5" HDD/SSD M.2 SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x M.2 SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Supports Ignition Control |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 50°C [-4°F to 122°F] |
| Wide Temperature |
| -30°C to 70°C [-22°F to 158°F] |
| 10% - 95% (Non-condensing) |
|
CE FCC RoHS UL |
| 0.6 Kg (1.32 Lbs) |
| 142mm x 102mm x 42mm (5.59" x 4.02" x 1.65") |
|
DIN Mount Wall Mount |
| C&T Solution BCO-1000-EHL-10-H |
| Intel Celeron J6413 Mini PC with 4G LTE |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
Celeron J Series Elkhart Lake Intel Celeron |
| Celeron J Series Elkhart Lake |
| J6413 |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
|
1x HDMI 2x Display Port |
|
Display Port HDMI |
|
Line-Out Mic-In |
| 2x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 1 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel I210 Intel I225 |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 3 x USB 3.2 Gen 2 [Type A] |
| 2x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 2x RS232/422/485 [DB9] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
| 1x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] |
| B-Key |
|
PCIe SIM USB |
|
2242 3042 3052 |
| 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
2.5" HDD/SSD M.2 SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x M.2 SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 50°C [-4°F to 122°F] |
| Wide Temperature |
| -30°C to 70°C [-22°F to 158°F] |
| 10% - 95% (Non-condensing) |
|
CE FCC RoHS UL |
| 0.6 Kg (1.32 Lbs) |
| 142mm x 102mm x 42mm (5.59" x 4.02" x 1.65") |
|
DIN Mount Wall Mount |
| C&T Solution BCO-1000-EHL-10-U |
| Quad Core Elkhart Lake Industrial Fanless Embedded PC |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
Celeron J Series Elkhart Lake Intel Celeron |
| Celeron J Series Elkhart Lake |
| J6413 |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
| 2x Display Port |
| Display Port |
|
Line-Out Mic-In |
| 2x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 1 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel I210 Intel I225 |
| 8x USB Ports |
| Type A |
|
USB2 USB3 |
|
3 x USB 3.2 Gen 2 [Type A] 5 x USB 2.0 [Type A] |
| 2x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 2x RS232/422/485 [DB9] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
| 1x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] |
| B-Key |
|
PCIe SIM USB |
|
2242 3042 3052 |
| 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
2.5" HDD/SSD M.2 SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x M.2 SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 50°C [-4°F to 122°F] |
| Wide Temperature |
| -30°C to 70°C [-22°F to 158°F] |
| 10% - 95% (Non-condensing) |
|
CE FCC RoHS UL |
| 0.6 Kg (1.32 Lbs) |
| 142mm x 102mm x 42mm (5.59" x 4.02" x 1.65") |
|
DIN Mount Wall Mount |
| C&T Solution BCO-1000-EHL-10-B |
| Quad Core Celeron J6413 Compact DIN Computer |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
Celeron J Series Elkhart Lake Intel Celeron |
| Celeron J Series Elkhart Lake |
| J6413 |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
| 2x Display Port |
| Display Port |
|
Line-Out Mic-In |
| 2x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 1 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel I210 Intel I225 |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 3 x USB 3.2 Gen 2 [Type A] |
| 4x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 4x RS232/422/485 [DB9] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
| 1x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] |
| B-Key |
|
PCIe SIM USB |
|
2242 3042 3052 |
| 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
2.5" HDD/SSD M.2 SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x M.2 SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 50°C [-4°F to 122°F] |
| Wide Temperature |
| -30°C to 70°C [-22°F to 158°F] |
| 10% - 95% (Non-condensing) |
|
CE FCC RoHS UL |
| 0.6 Kg (1.32 Lbs) |
| 142mm x 102mm x 42mm (5.59" x 4.02" x 1.65") |
|
DIN Mount Wall Mount |
| C&T Solution BCO-1000-EHL-10-A |
| Elkhart Lake Quad Core Wide Temperature Industrial PC |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
Celeron J Series Elkhart Lake Intel Celeron |
| Celeron J Series Elkhart Lake |
| J6413 |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
| 3x Display Port |
| Display Port |
|
Line-Out Mic-In |
| 2x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 1 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel I210 Intel I225 |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 3 x USB 3.2 Gen 2 [Type A] |
| 2x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 2x RS232/422/485 [DB9] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
| 1x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] |
| B-Key |
|
PCIe SIM USB |
|
2242 3042 3052 |
| 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
2.5" HDD/SSD M.2 SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x M.2 SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 50°C [-4°F to 122°F] |
| Wide Temperature |
| -30°C to 70°C [-22°F to 158°F] |
| 10% - 95% (Non-condensing) |
|
CE FCC RoHS UL |
| 0.6 Kg (1.32 Lbs) |
| 142mm x 102mm x 42mm (5.59" x 4.02" x 1.65") |
|
DIN Mount Wall Mount |
| C&T Solution BCO-1000-EHL-10 |
| Intel Celeron J6413 Quad Core Industrial Mini PC |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
Celeron J Series Elkhart Lake Intel Celeron |
| Celeron J Series Elkhart Lake |
| J6413 |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
| Triple Display Support |
| 4K Display Support |
| 2x Display Port |
| Display Port |
|
Line-Out Mic-In |
| 2x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 1 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel I210 Intel I225 |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 3 x USB 3.2 Gen 2 [Type A] |
| 2x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 2x RS232/422/485 [DB9] |
| 2 |
| Board Connectors |
| CANbus |
| 2 x CANbus [Board] |
| 1x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] |
| B-Key |
|
PCIe SIM USB |
|
2242 3042 3052 |
| 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] |
|
PCIe SATA USB |
| Full-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 3 |
|
2.5" HDD/SSD M.2 SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x M.2 SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 50°C [-4°F to 122°F] |
| Wide Temperature |
| -30°C to 70°C [-22°F to 158°F] |
| 10% - 95% (Non-condensing) |
|
CE FCC RoHS UL |
| 0.6 Kg (1.32 Lbs) |
| 142mm x 102mm x 42mm (5.59" x 4.02" x 1.65") |
|
DIN Mount Wall Mount |
