UST210-83K-FL
Things Embedded are an official Axiomtek UK distributor and can supply the UST210-83K-FL fully configured and imaged.
- Select Variant UST210-83K-FL
-
UST210-83K-FL-E3940-4POE-2COM-TVDC
UST210-83K-FL with 2x COM, 4x PoE LAN -
UST210-83K-FL-E3940-4POE-CANCOM-TVDC
UST210-83K-FL with 1x CAN, 1x COM, 4x PoE LAN -
UST210-83K-FL-E3940-2COM-TVDC
UST210-83K-FL with 2x COM, 4x LAN -
UST210-83K-FL-E3940-CANCOM-TVDC
UST210-83K-FL with 1x CAN, 1x COM, 4x LAN
Available in 4 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| Secure Crypto Processor |
| Operating System |
| Graphics |
| Integrated GPU |
| Graphics Family |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| Digital I/O |
| Expansion |
| mPCIe |
| mPCIe Support |
| mPCIe Slot Size |
| SIM Slots |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| Power |
| Power Input |
| Ignition Sensing |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Humidity |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| Mounting Options |
| Axiomtek UST210-83K-FL-E3940-4POE-2COM-TVDC |
| Intel Atom x5-E3940 4G In Vehicle NVR |
| 8GB |
| 1 |
| DDR3L |
|
Linux Windows |
|
Atom X Series Apollo Lake Intel Atom |
| Atom X Series Apollo Lake |
| x5-E3940 |
| 1x DDR3L 1866MHz SO-DIMM Slot, 8GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel HD Series |
| Intel HD Graphics |
| 1x HDMI |
| HDMI |
| 4x Ethernet Ports |
| RJ45 |
| 4 x GbE LAN [RJ45] |
| GbE |
| Intel i210AT |
| 2x USB Ports |
| Type A |
| USB3 |
| 2 x USB 3.0 [Type A] |
| 2x Serial Ports |
| Terminal Block |
|
RS-232 RS-422 RS-485 |
| 2 x RS232/422/485 [Terminal Block] |

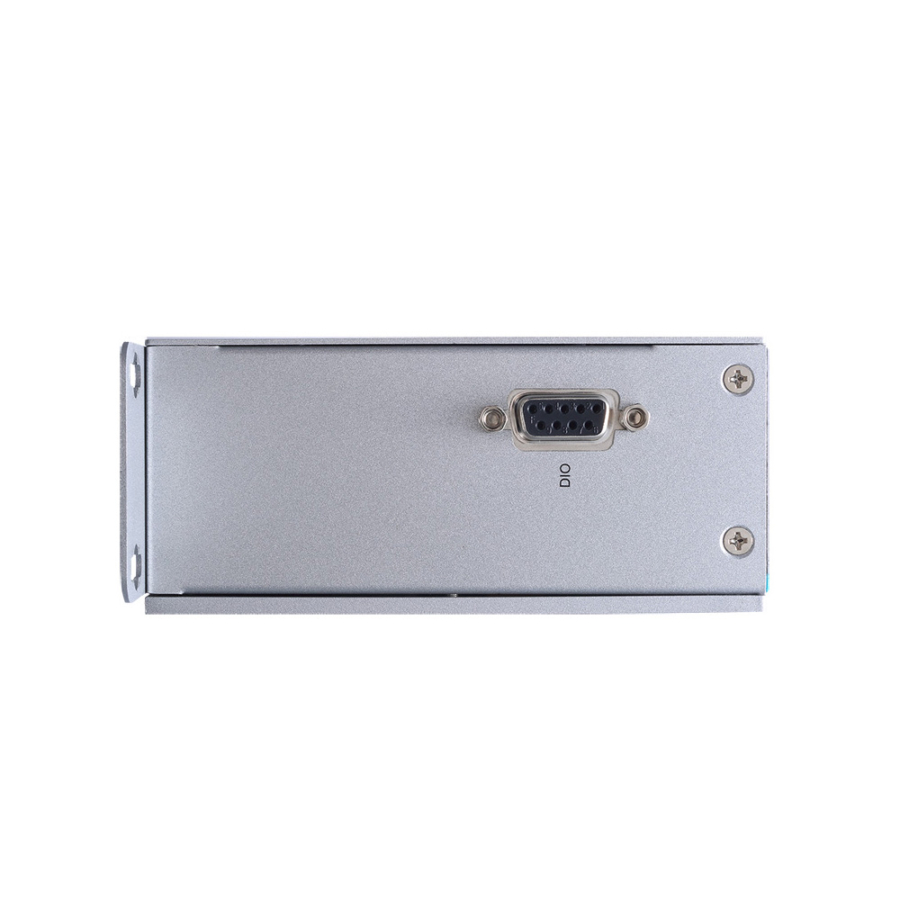

| DIO [8-lines] |
| 2x mPCIe Slots |
|
1 x Half-Size mPCIe [PCIe, USB] 1 x mPCIe [USB/SIM] |
|
PCIe SIM USB |
|
Full-Size Half-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
2.5" HDD/SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
| Supports Ignition Control |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| 0% - 95% (Non-condensing) |
|
CE E-Mark ECE-R10 EN55024 EN55032 FCC |
| 0.9 Kg (1.98 Lbs) |
| 67mm x 155mm x 111mm (2.64" x 6.1" x 4.37") |
|
DIN Mount Wall Mount |
| Axiomtek UST210-83K-FL-E3940-4POE-CANCOM-TVDC |
| Quad Core Atom x5-E3940 Rugged Vehicle PC with PoE |
| 8GB |
| 1 |
| DDR3L |
|
Linux Windows |
|
Atom X Series Apollo Lake Intel Atom |
| Atom X Series Apollo Lake |
| x5-E3940 |
| 1x DDR3L 1866MHz SO-DIMM Slot, 8GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel HD Series |
| Intel HD Graphics |
| 1x HDMI |
| HDMI |
| 4x Ethernet Ports |
| RJ45 |
| 4 x GbE LAN [RJ45] |
| GbE |
| Intel i210AT |
| 2x USB Ports |
| Type A |
| USB3 |
| 2 x USB 3.0 [Type A] |
| 1x Serial Ports |
| Terminal Block |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Terminal Block] |
| DIO [8-lines] |
| 2x mPCIe Slots |
|
1 x Half-Size mPCIe [PCIe, USB] 1 x mPCIe [USB/SIM] |
|
PCIe SIM USB |
|
Full-Size Half-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
2.5" HDD/SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
| Supports Ignition Control |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| 0% - 95% (Non-condensing) |
|
CE E-Mark ECE-R10 EN55024 EN55032 FCC |
| 0.9 Kg (1.98 Lbs) |
| 67mm x 155mm x 111mm (2.64" x 6.1" x 4.37") |
|
DIN Mount Wall Mount |
| Axiomtek UST210-83K-FL-E3940-2COM-TVDC |
| x5-E3940 Quad Core Compact In Vehicle Computer System |
| 8GB |
| 1 |
| DDR3L |
|
Linux Windows |
|
Atom X Series Apollo Lake Intel Atom |
| Atom X Series Apollo Lake |
| x5-E3940 |
| 1x DDR3L 1866MHz SO-DIMM Slot, 8GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel HD Series |
| Intel HD Graphics |
| 1x HDMI |
| HDMI |
| 4x Ethernet Ports |
| RJ45 |
| 4 x GbE LAN [RJ45] |
| GbE |
| Intel i210AT |
| 2x USB Ports |
| Type A |
| USB3 |
| 2 x USB 3.0 [Type A] |
| 2x Serial Ports |
| Terminal Block |
|
RS-232 RS-422 RS-485 |
| 2 x RS232/422/485 [Terminal Block] |
| DIO [8-lines] |
| 2x mPCIe Slots |
|
1 x Half-Size mPCIe [PCIe, USB] 1 x mPCIe [USB/SIM] |
|
PCIe SIM USB |
|
Full-Size Half-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
2.5" HDD/SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
| Supports Ignition Control |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| 0% - 95% (Non-condensing) |
|
CE E-Mark ECE-R10 EN55024 EN55032 FCC |
| 0.5 Kg (1.1 Lbs) |
| 48mm x 155mm x 111mm (1.89" x 6.1" x 4.37") |
|
DIN Mount Wall Mount |
| Axiomtek UST210-83K-FL-E3940-CANCOM-TVDC |
| Intel Atom x5-E3940 Compact LTE Vehicle Gateway |
| 8GB |
| 1 |
| DDR3L |
|
Linux Windows |
|
Atom X Series Apollo Lake Intel Atom |
| Atom X Series Apollo Lake |
| x5-E3940 |
| 1x DDR3L 1866MHz SO-DIMM Slot, 8GB |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel HD Series |
| Intel HD Graphics |
| 1x HDMI |
| HDMI |
| 4x Ethernet Ports |
| RJ45 |
| 4 x GbE LAN [RJ45] |
| GbE |
| Intel i210AT |
| 2x USB Ports |
| Type A |
| USB3 |
| 2 x USB 3.0 [Type A] |
| 1x Serial Ports |
| Terminal Block |
|
RS-232 RS-422 RS-485 |
| 1 x RS232/422/485 [Terminal Block] |
| DIO [8-lines] |
| 2x mPCIe Slots |
|
1 x Half-Size mPCIe [PCIe, USB] 1 x mPCIe [USB/SIM] |
|
PCIe SIM USB |
|
Full-Size Half-Size |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
2.5" HDD/SSD mSATA SSD |
|
1x 2.5" HDD/SSD 1x mSATA |
| 9-36V DC Input [Terminal Block] |
| Supports Ignition Control |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| 0% - 95% (Non-condensing) |
|
CE E-Mark ECE-R10 EN55024 EN55032 FCC |
| 0.5 Kg (1.1 Lbs) |
| 48mm x 155mm x 111mm (1.89" x 6.1" x 4.37") |
|
DIN Mount Wall Mount |
