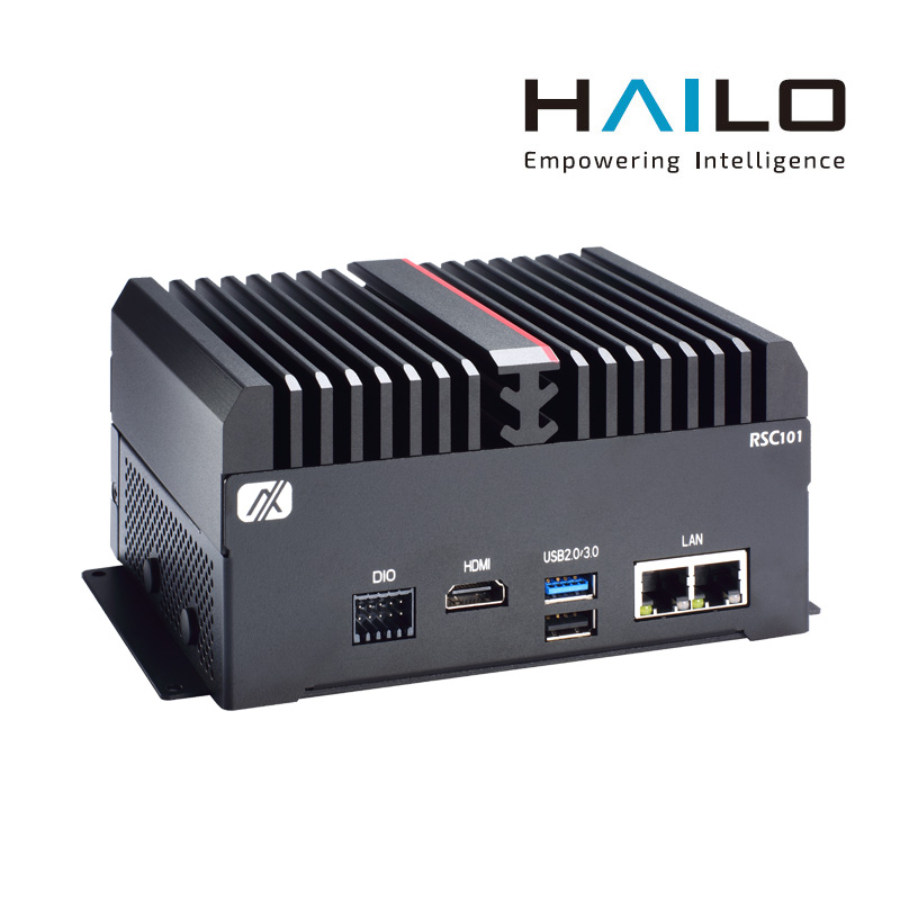

RSC101
Things Embedded are an official Axiomtek UK distributor and can supply the RSC101 fully configured and imaged.
Available in 2 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| Operating System |
| Graphics |
| AI Accelerator |
| Integrated GPU |
| Graphics Family |
| 4K Support |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| USB |
| USB Connector Type |
| USB Generation |
| Digital I/O |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| SIM Slots |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| Power |
| Power Input |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| Mounting Options |
| Axiomtek RSC101-J6413-H |
| Industrial Hailo-8 Edge AI Computer with Quad Core CPU and 5G Connectivity |
| 32GB |
| 1 |
| DDR4 |
| Linux |
|
Celeron J Series Elkhart Lake Intel Celeron |
| Celeron J Series Elkhart Lake |
| J6413 |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| Linux |
| Hailo-8 AI Accelerator |
| Intel UHD Series |
| Intel UHD Graphics |
| 4K Display Support |
| 1x HDMI |
| HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
| 2x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 1 x USB 3.1 Gen 1 [Type A] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB] [3042/3052] 1x M.2 B-Key [USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 3042 3052 |
| 1x SIM Slots |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 1 |
| M.2 SSD |
| 1x M.2 SSD |
| 12-24V DC [Barrel Connector] |
| Fanless Passively Cooled Chassis |
| Fanless |
| -10°C to 70°C [14°F to 158°F] |
| Wide Temperature |
|
CE FCC |
| 1.5 Kg (3.3 Lbs) |
| 150mm x 72mm x 110mm (5.91" x 2.83" x 4.33") |
|
Desktop Wall Mount |
| Axiomtek RSC101-J6413-S |
| Compact Hailo-8 Edge Computer with J6413 Elkhart Lake Quad Core CPU |
| 32GB |
| 1 |
| DDR4 |
| Linux |
|
Celeron J Series Elkhart Lake Intel Celeron |
| Celeron J Series Elkhart Lake |
| J6413 |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| Linux |
| Hailo-8 AI Accelerator |
| Intel UHD Series |
| Intel UHD Graphics |
| 4K Display Support |
| 1x HDMI |
| HDMI |
| 2x Ethernet Ports |
| RJ45 |
| 2 x GbE LAN [RJ45] |
| GbE |
| 2x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 1 x USB 3.1 Gen 1 [Type A] |
| DIO [8-lines] |
| 3x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB] [3042/3052] 1x M.2 B-Key [USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] |
|
B-Key E-Key |
|
PCIe SATA USB |
|
2230 2242 3042 3052 |
| 1x SIM Slots |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 1 |
| M.2 SSD |
| 1x M.2 SSD |
| 12-24V DC [Barrel Connector] |
| Fanless Passively Cooled Chassis |
| Fanless |
| -10°C to 60°C [14°F to 147°F] |
| Wide Temperature |
|
CE FCC |
| 0.9 Kg (1.98 Lbs) |
| 150mm x 50mm x 110mm (5.91" x 1.97" x 4.33") |
|
Desktop Wall Mount |
