ECM-TGU
Things Embedded are an official Avalue UK distributor and can supply the ECM-TGU fully configured and imaged.
- Select Variant ECM-TGU
-
ECM-TGU-15W-A1R
ECM-TGU with Core i3-1115GRE CPU and Wide Temp Components -
ECM-TGU-45W-A1R
ECM-TGU with Core i5-1145GRE CPU and Wide Temp Components -
ECM-TGU-85W-A1R
ECM-TGU with Core i7-1185GRE CPU and Wide Temp Components -
ECM-TGU-15-A1R
ECM-TGU with Core i3-1115G4E CPU -
ECM-TGU-45-A1R
ECM-TGU with Core i5-1145G7E CPU -
ECM-TGU-85-A1R
ECM-TGU with Core i7-1185G7E CPU -
ECM-TGU-6305-A1R
ECM-TGU with Celeron 6305E CPU
Available in 7 Variants
| Overview |
|---|
| Brand & Model |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| BIOS |
| Remote Management |
| Secure Crypto Processor |
| Operating System |
| Graphics |
| Integrated GPU |
| Graphics Family |
| Display Standards |
| Multi Display Support |
| 4K Support |
| Display Outputs |
| Display Port Type |
| Audio |
| Interface |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| GPIO |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| SIM Slots |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| NVMe |
| Power |
| Power Input |
| Power Support Modes |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Shock |
| Vibration |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| Avalue ECM-TGU-15W-A1R |
| 11th Gen Intel Core i3 Wide Temp 3.5 Inch Single Board Computer |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
| i3-1115GRE |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| AMI |
| Intel AMT |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
|
DP++ Dual Channel LVDS eDP 1.4b |
| Quad Display Support |
| 4K Display Support |
|
1x eDP 2x Display Port 2x LVDS |
|
Display Port eDP LVDS |
|
Line-In Line-Out Mic-In |
| 3x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 2 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel i210AT Intel I225LM |
| 8x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 6x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
2 x RS232/422/485 [Board] 4 x RS232 [Board] |
| GPIO [8-lines] |
| 4x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB/SATA] [2242/3042] 1x M.2 B-Key [PCIe/USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2242 |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
M.2 SSD SATA Port |
|
1x M.2 SSD 1x SATA Port |
| NVMe SSD Support |
| 12-24V DC [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -40°C to 75°C [-40°F to 167°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 101mm (5.75" x 3.98") |
| Avalue ECM-TGU-45W-A1R |
| 11th Gen Tiger Lake Core i5 Wide Temperature Biscuit SBC |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
| i5-1145GRE |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| AMI |
| Intel AMT |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
|
DP++ Dual Channel LVDS eDP 1.4b |
| Quad Display Support |
| 4K Display Support |
|
1x eDP 2x Display Port 2x LVDS |
|
Display Port eDP LVDS |
|
Line-In Line-Out Mic-In |
| 3x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 2 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel i210AT Intel I225LM |
| 8x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 6x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
2 x RS232/422/485 [Board] 4 x RS232 [Board] |
| GPIO [8-lines] |
| 4x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB/SATA] [2242/3042] 1x M.2 B-Key [PCIe/USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2242 |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
M.2 SSD SATA Port |
|
1x M.2 SSD 1x SATA Port |
| NVMe SSD Support |
| 12-24V DC [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -40°C to 75°C [-40°F to 167°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 101mm (5.75" x 3.98") |
| Avalue ECM-TGU-85W-A1R |
| 11th Gen Tiger Lake Core i7 Wide Temperature Single Board Computer |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
| i7-1185GRE |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| AMI |
| Intel AMT |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
|
DP++ Dual Channel LVDS eDP 1.4b |
| Quad Display Support |
| 4K Display Support |
|
1x eDP 2x Display Port 2x LVDS |
|
Display Port eDP LVDS |
|
Line-In Line-Out Mic-In |
| 3x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 2 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel i210AT Intel I225LM |
| 8x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 6x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
2 x RS232/422/485 [Board] 4 x RS232 [Board] |
| GPIO [8-lines] |
| 4x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB/SATA] [2242/3042] 1x M.2 B-Key [PCIe/USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2242 |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
M.2 SSD SATA Port |
|
1x M.2 SSD 1x SATA Port |
| NVMe SSD Support |
| 12-24V DC [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -40°C to 75°C [-40°F to 167°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 101mm (5.75" x 3.98") |
| Avalue ECM-TGU-15-A1R |
| 11th Gen Core i3 Industrial 3.5 Inch Single Board Computer |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
| i3-1115G4E |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| AMI |
| Intel AMT |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
|
DP++ Dual Channel LVDS eDP 1.4b |
| Quad Display Support |
| 4K Display Support |
|
1x eDP 2x Display Port 2x LVDS |
|
Display Port eDP LVDS |
|
Line-In Line-Out Mic-In |
| 3x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 2 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel i210AT Intel I225LM |
| 8x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 6x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
2 x RS232/422/485 [Board] 4 x RS232 [Board] |
| GPIO [8-lines] |
| 4x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB/SATA] [2242/3042] 1x M.2 B-Key [PCIe/USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2242 |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
M.2 SSD SATA Port |
|
1x M.2 SSD 1x SATA Port |
| NVMe SSD Support |
| 12-24V DC [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| 0°C to 60°C [32°F to 147°F] |
| Standard Temperature |
| -40°C to 75°C [-40°F to 167°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 101mm (5.75" x 3.98") |
| Avalue ECM-TGU-45-A1R |
| 11th Gen Core i5 Industrial SBC |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
| i5-1145G7E |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| AMI |
| Intel AMT |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
|
DP++ Dual Channel LVDS eDP 1.4b |
| Quad Display Support |
| 4K Display Support |
|
1x eDP 2x Display Port 2x LVDS |
|
Display Port eDP LVDS |
|
Line-In Line-Out Mic-In |
| 3x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 2 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel i210AT Intel I225LM |
| 8x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 6x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
2 x RS232/422/485 [Board] 4 x RS232 [Board] |
| GPIO [8-lines] |
| 4x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB/SATA] [2242/3042] 1x M.2 B-Key [PCIe/USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2242 |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
M.2 SSD SATA Port |
|
1x M.2 SSD 1x SATA Port |
| NVMe SSD Support |
| 12-24V DC [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| 0°C to 60°C [32°F to 147°F] |
| Standard Temperature |
| -40°C to 75°C [-40°F to 167°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 101mm (5.75" x 3.98") |
| Avalue ECM-TGU-85-A1R |
| 11th Gen Core i7 Embedded Single Board Computer |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
11th Gen Tiger Lake Intel Core |
| 11th Gen Tiger Lake |
| i7-1185G7E |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| AMI |
| Intel AMT |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
|
DP++ Dual Channel LVDS eDP 1.4b |
| Quad Display Support |
| 4K Display Support |
|
1x eDP 2x Display Port 2x LVDS |
|
Display Port eDP LVDS |
|
Line-In Line-Out Mic-In |
| 3x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 2 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel i210AT Intel I225LM |
| 8x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 6x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
2 x RS232/422/485 [Board] 4 x RS232 [Board] |
| GPIO [8-lines] |
| 4x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB/SATA] [2242/3042] 1x M.2 B-Key [PCIe/USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2242 |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
M.2 SSD SATA Port |
|
1x M.2 SSD 1x SATA Port |
| NVMe SSD Support |
| 12-24V DC [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| 0°C to 60°C [32°F to 147°F] |
| Standard Temperature |
| -40°C to 75°C [-40°F to 167°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 101mm (5.75" x 3.98") |

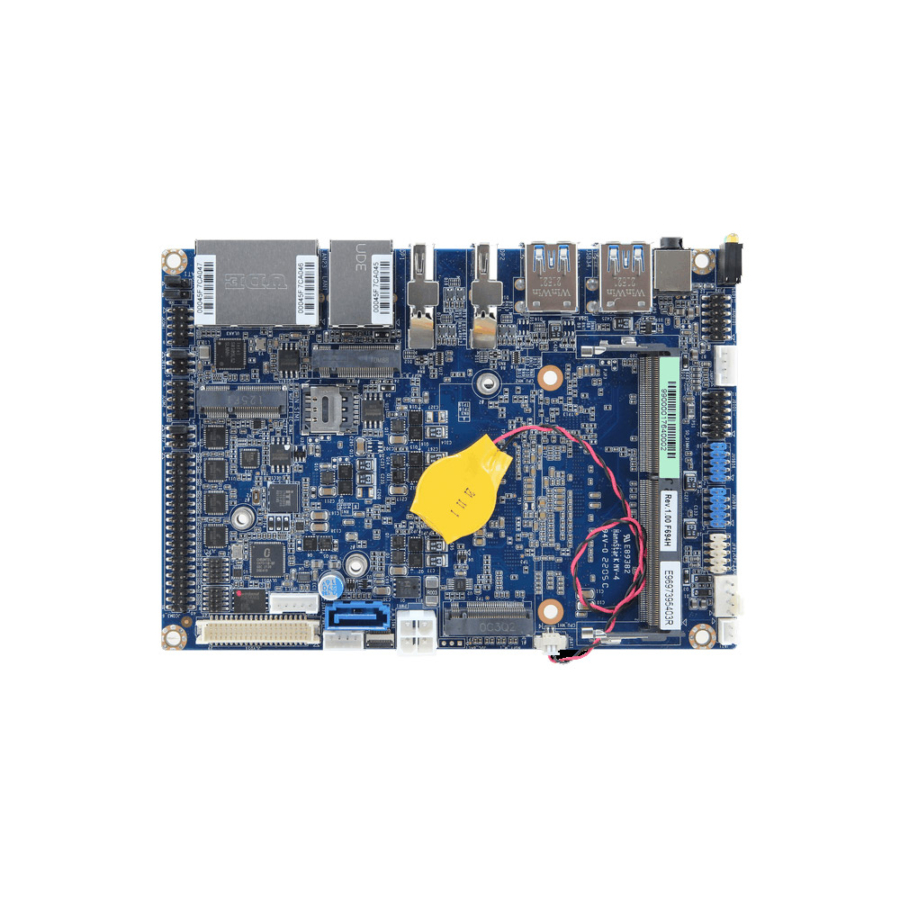

| Avalue ECM-TGU-6305-A1R |
| 11th Gen Celeron 6305E Industrial Single Board Computer |
| 32GB |
| 1 |
| DDR4 |
|
Linux Windows |
|
Celeron 6000 Series Tiger Lake Intel Celeron |
| Celeron 6000 Series Tiger Lake |
| 6305E |
| 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| AMI |
| Intel AMT |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Intel UHD Series |
| Intel UHD Graphics |
|
DP++ Dual Channel LVDS eDP 1.4b |
| Quad Display Support |
| 4K Display Support |
|
1x eDP 2x Display Port 2x LVDS |
|
Display Port eDP LVDS |
|
Line-In Line-Out Mic-In |
| 3x Ethernet Ports |
| RJ45 |
|
1 x 2.5 GbE LAN [RJ45] 2 x GbE LAN [RJ45] |
|
GbE 2.5GbE |
|
Intel i210AT Intel I225LM |
| 8x USB Ports |
|
Board Connectors Type A |
|
USB2 USB3 |
|
4 x USB 2.0 [Board] 4 x USB 3.2 Gen 2 [Type A] |
| 6x Serial Ports |
| Board Connectors |
|
RS-232 RS-422 RS-485 |
|
2 x RS232/422/485 [Board] 4 x RS232 [Board] |
| GPIO [8-lines] |
| 4x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB/SATA] [2242/3042] 1x M.2 B-Key [PCIe/USB/SATA] [2242] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2242 |
| 1x SIM Slots |
|
Optional 4G Modem Optional WiFi/Bluetooth |
|
4G Wireless |
| 2 |
|
M.2 SSD SATA Port |
|
1x M.2 SSD 1x SATA Port |
| NVMe SSD Support |
| 12-24V DC [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
|
Optional Heat Spreader Optional Heatsink |
|
Heat Spreader Heatsink |
| 0°C to 60°C [32°F to 147°F] |
| Standard Temperature |
| -40°C to 75°C [-40°F to 167°F] |
| 10% - 95% (Non-condensing) |
| IEC 60068-2-27 |
| IEC 60068-2-64 |
|
CE FCC |
| 0.2 Kg (0.44 Lbs) |
| 146mm x 101mm (5.75" x 3.98") |
