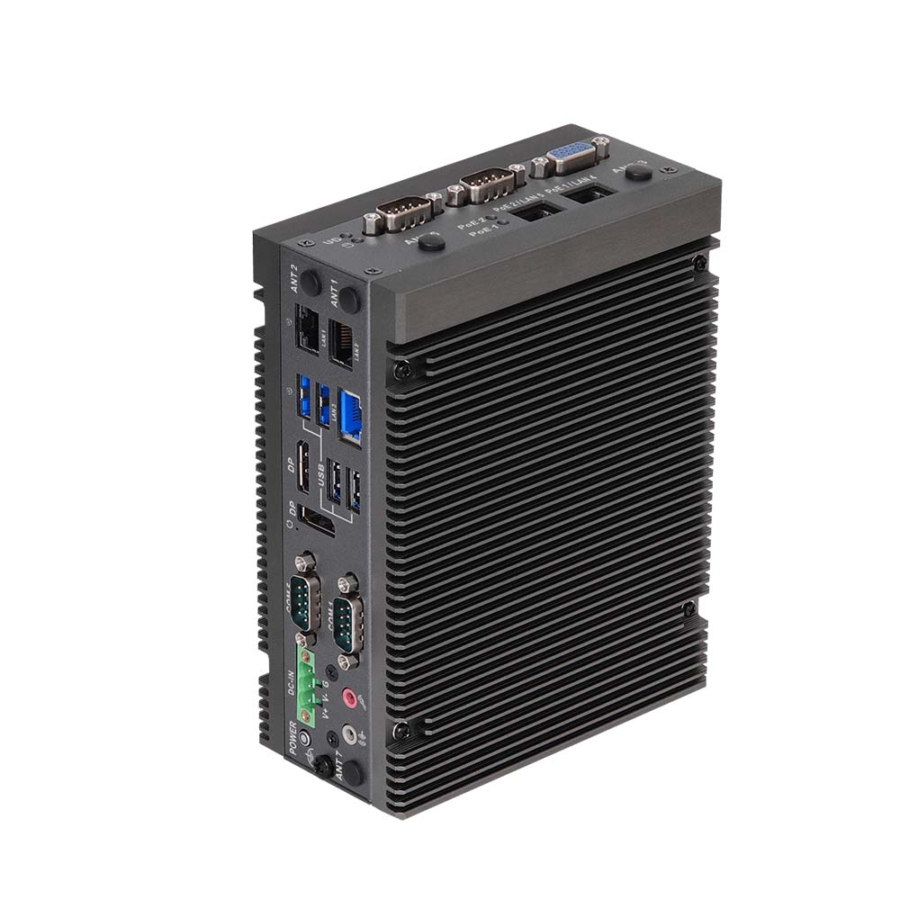

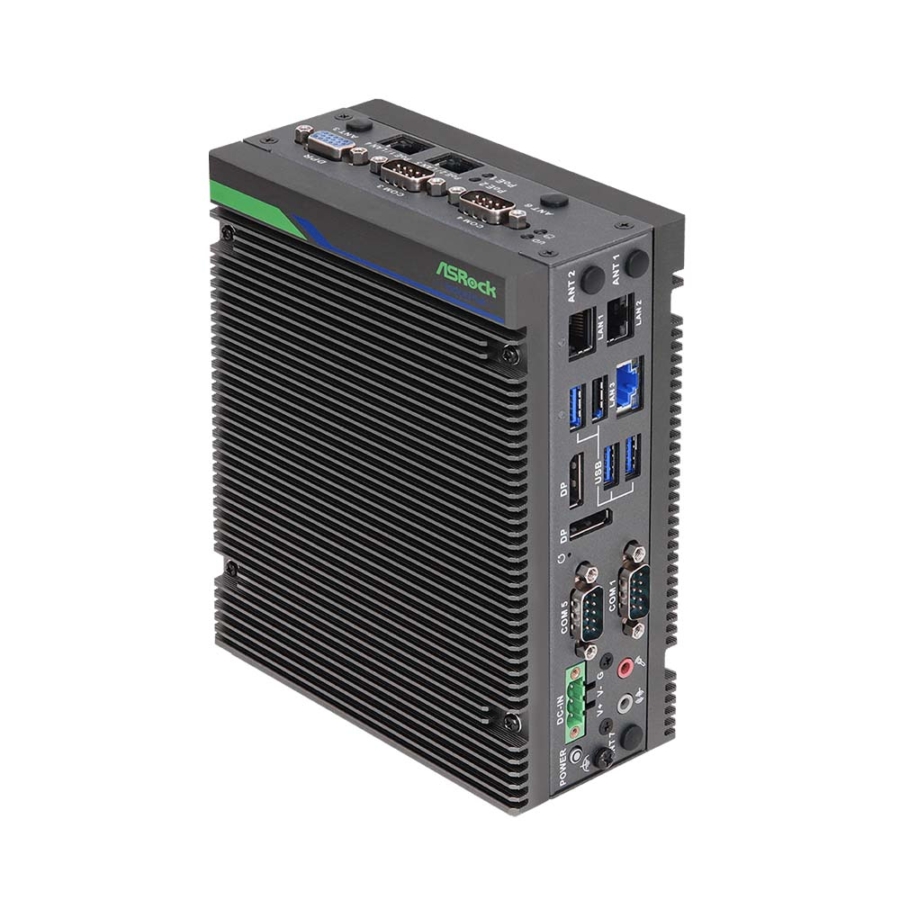

ASRock Industrial iEP-7020E
Things Embedded are an official ASRock Industrial UK distributor and can supply the iEP-7020E fully configured.
Available in 3 Variants
| Overview |
|---|
| Brand & Model |
| Sub Categories |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| ECC Memory Support |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| Remote Management |
| Secure Crypto Processor |
| Operating System |
| Graphics |
| Multi Display Support |
| Display Outputs |
| Display Port Type |
| Audio |
| Codec |
| Interface |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| Digital I/O |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| SIM Slots |
| Wireless Connectivity |
| Connectivity |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| NVMe |
| Power |
| Power Input |
| Power Support Modes |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Certification |
| Mechanical Properties |
| Weight |
| Dimensions |
| Mounting Options |
| ASRock Industrial iEP-7020E-002 |
| High Performance 13th Gen Industrial DIN Rail Computer |
| ASRock Industrial iEP Series |
| 64GB |
| 2 |
| DDR4 |
| Supports ECC Memory |
|
Linux Windows |
|
13th Gen Raptor Lake Intel Core |
| 13th Gen Raptor Lake |
|
i5-1345URE i5-1350PRE i7-1365URE i7-1370PRE |
| 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| Intel In-Band |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Dual Display Support |
| 2x Display Port |
| Display Port |
| Realtek HD Audio |
|
Line-Out Mic-In |
| 5x Ethernet Ports |
| RJ45 |
|
2 x GbE LAN [RJ45] 3 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I226IT |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 3 x USB 3.2 Gen 2 [Type A] |
| 4x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 4x RS232/422/485 [DB9] |
| DIO [4-in, 4-out] |
| 3x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2280 3042 3052 |
| 1x SIM Slots |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 2 |
|
M.2 SSD Micro SD |
|
1x M.2 SSD 1x Micro SD |
| NVMe SSD Support |
| 9-36V DC Input [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
CE FCC |
| 1.3 Kg (2.86 Lbs) |
| 55mm x 170mm x 134mm (2.17" x 6.69" x 5.28") |
|
DIN Mount Wall Mount |
| ASRock Industrial iEP-7020E-001 |
| Raptor Lake Intel Core Rugged IIoT Gateway |
| ASRock Industrial iEP Series |
| 64GB |
| 2 |
| DDR4 |
| Supports ECC Memory |
|
Linux Windows |
|
13th Gen Raptor Lake Intel Core |
| 13th Gen Raptor Lake |
|
i5-1345URE i5-1350PRE i7-1365URE i7-1370PRE |
| 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| Intel In-Band |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Dual Display Support |
| 2x Display Port |
| Display Port |
| Realtek HD Audio |
|
Line-Out Mic-In |
| 5x Ethernet Ports |
| RJ45 |
|

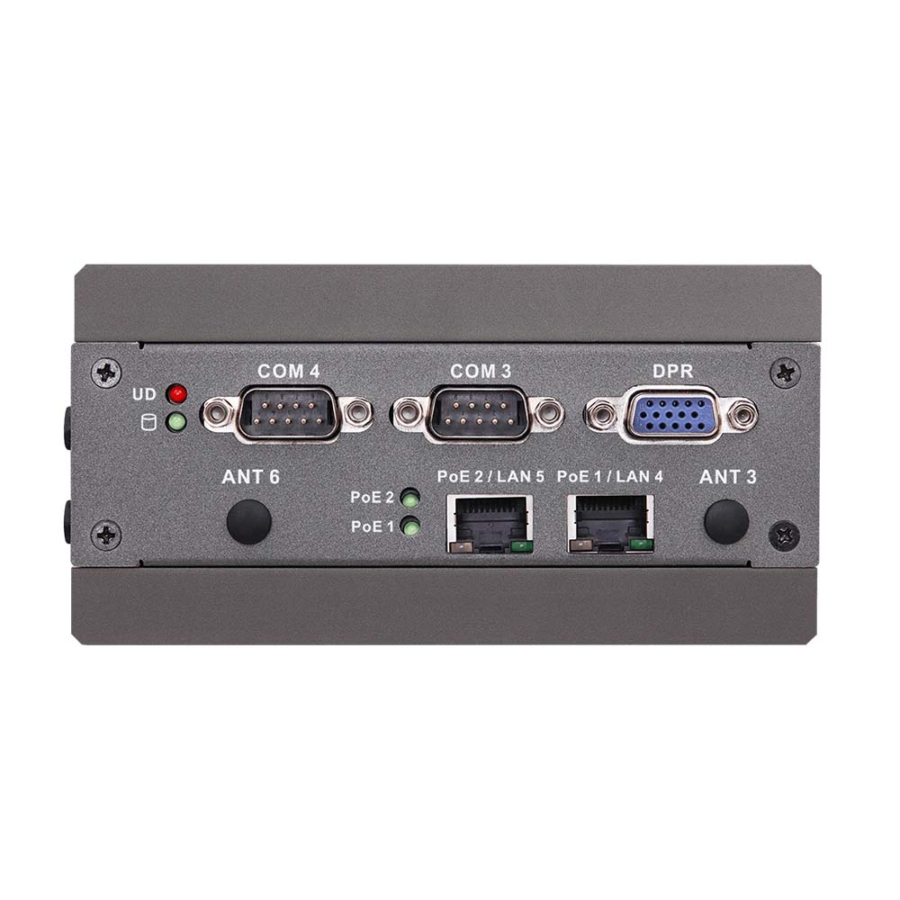

2 x GbE LAN [RJ45] [PoE] 3 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I226IT |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 3 x USB 3.2 Gen 2 [Type A] |
| 4x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 4x RS232/422/485 [DB9] |
| DIO [4-in, 4-out] |
| 3x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2280 3042 3052 |
| 1x SIM Slots |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 2 |
|
M.2 SSD Micro SD |
|
1x M.2 SSD 1x Micro SD |
| NVMe SSD Support |
| 19-36V DC [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
CE FCC |
| 1.3 Kg (2.86 Lbs) |
| 68mm x 170mm x 134mm (2.68" x 6.69" x 5.28") |
|
DIN Mount Wall Mount |
| ASRock Industrial iEP-7020E-000 |
| 13th Gen Raptor Lake Core i5/i7 Rugged LTE Gateway |
| ASRock Industrial iEP Series |
| 64GB |
| 2 |
| DDR4 |
| Supports ECC Memory |
|
Linux Windows |
|
13th Gen Raptor Lake Intel Core |
| 13th Gen Raptor Lake |
|
i5-1345URE i5-1350PRE i7-1365URE i7-1370PRE |
| 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| Intel In-Band |
| TPM 2.0 (Trusted Platform Module) |
|
Linux Windows 10 |
| Dual Display Support |
| 2x Display Port |
| Display Port |
| Realtek HD Audio |
|
Line-Out Mic-In |
| 3x Ethernet Ports |
| RJ45 |
| 3 x GbE LAN [RJ45] |
| GbE |
|
Intel i210AT Intel I226IT |
| 4x USB Ports |
| Type A |
|
USB2 USB3 |
|
1 x USB 2.0 [Type A] 3 x USB 3.2 Gen 2 [Type A] |
| 4x Serial Ports |
| DB9 |
|
RS-232 RS-422 RS-485 |
| 4x RS232/422/485 [DB9] |
| DIO [4-in, 4-out] |
| 3x M.2 Expansion Slots |
|
1x M.2 B-Key [PCIe/USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] |
|
B-Key E-Key M-Key |
|
PCIe SATA USB |
|
2230 2280 3042 3052 |
| 1x SIM Slots |
|
Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
|
4G 5G Wireless |
| 3 |
|
2.5" HDD/SSD M.2 SSD Micro SD |
|
1x 2.5" HDD/SSD 1x M.2 SSD 1x Micro SD |
| NVMe SSD Support |
| 9-36V DC Input [Terminal Block] |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -40°C to 70°C [-40°F to 158°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
CE FCC |
| 1.3 Kg (2.86 Lbs) |
| 55mm x 170mm x 134mm (2.17" x 6.69" x 5.28") |
|
DIN Mount Wall Mount |
