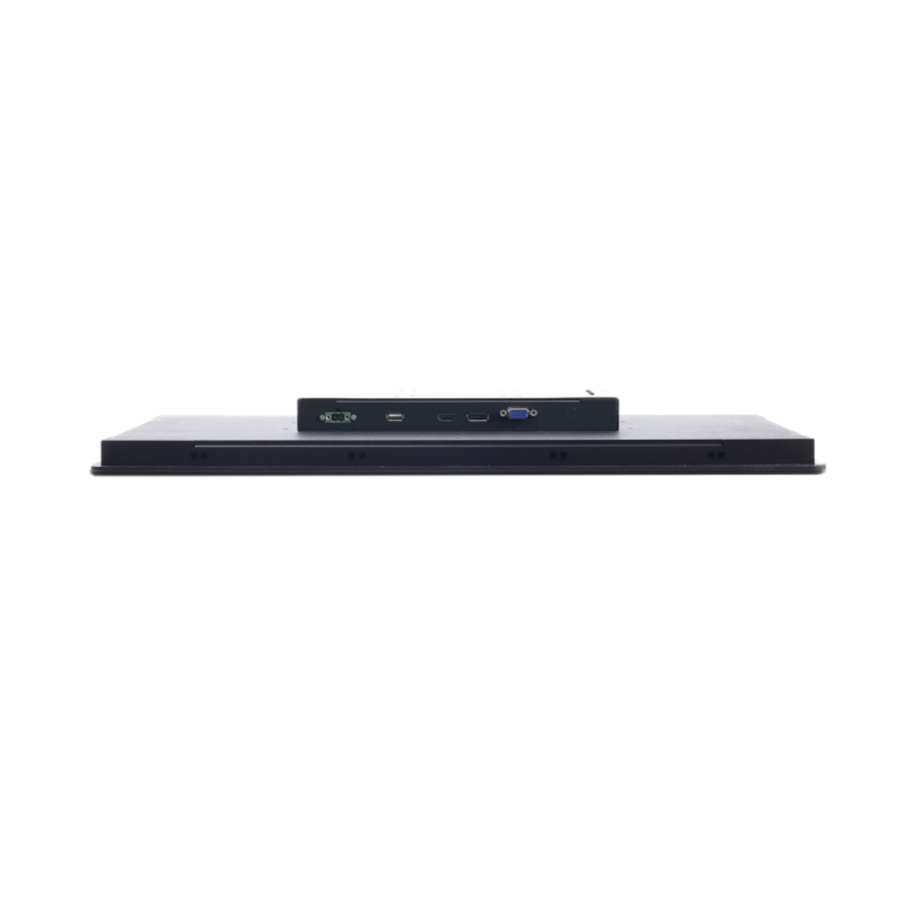

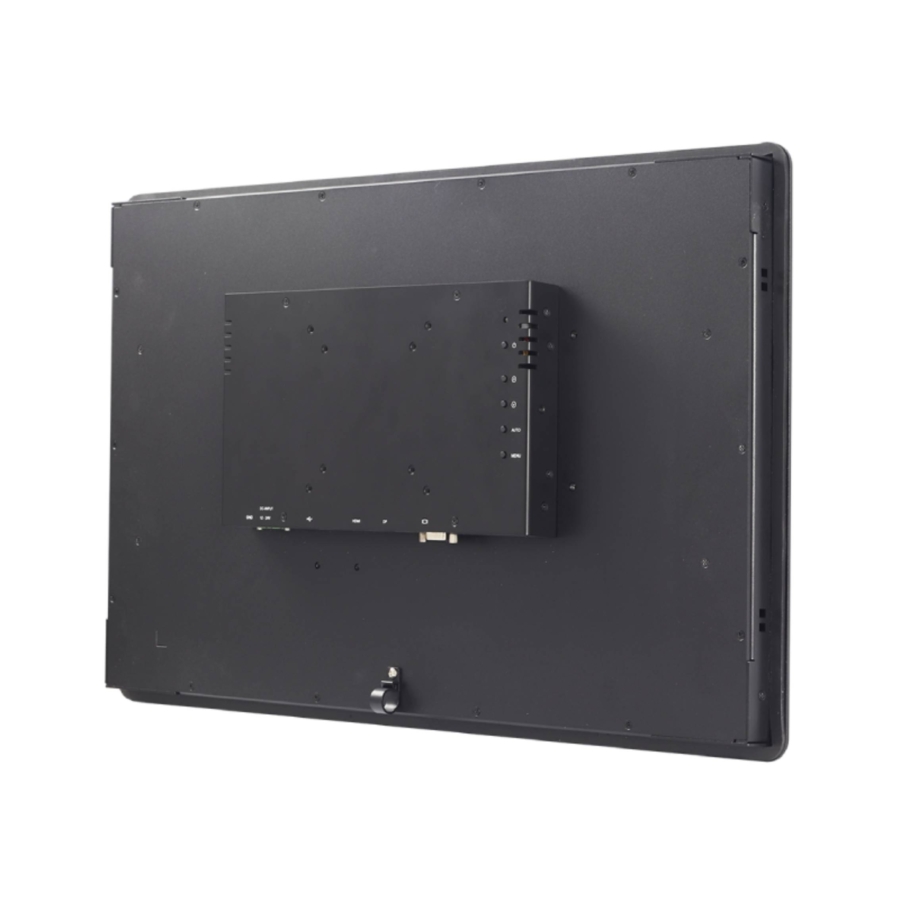

Arestech TPM-3515RW
Things Embedded are an official Arestech UK distributor for supplying the TPM-3515RW-2A2.
Available in 2 Variants
| Overview |
|---|
| Brand & Model |
| Display |
| Display Size |
| Display |
| Display Resolution |
| Touch Technology |
| Touch Controller |
| Brightness |
| Brightness |
| Viewing Angle |
| Aspect Ratio |
| Format |
| Contrast |
| Display Inputs |
| Number of Display Inputs |
| Video Inputs |
| Power |
| Power Input |
| Environmental Conditions |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Ingress Protection |
| Ingress Protection |
| Certification |
| Mechanical Properties |
| Dimensions |
| Arestech TPM-3515RW-2A2 |
| 15.6" IP65 HD Industrial Monitor with Resistive Touchscreen |
| 15.6" |
| 15.6"[16:9, 1920 x 1080, FHD] |
| FHD |
| Resistive |
| 5-Wire Resistive Touch |
| 450 Nits |
| 450 |
| Wide Viewing Angle |
| 170° Horizontal, 170° Vertical |
| 16:9 |
| Widescreen |
| 800:1 |
|
Display Port HDMI VGA |
| 3x Display Ports |
|
1x Display Port Input 1x HDMI Input 1x VGA Input |
| 12-24V DC [Terminal Block] |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
| Front IP65 |
| Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
|
CE FCC |
| 407mm x 262mm x 53mm (16.02" x 10.31" x 2.09") |
| Arestech TPM-3515RW-1A2 |
| 15.6" Full HD IP65 Industrial Monitor with Resistive Touchscreen |
| 15.6" |
| 15.6"[8:5, 1366 x 768, WXGA] |
| WXGA |
| Resistive |
| 5-Wire Resistive Touch |
| 300 Nits |
| 300 |
| Wide Viewing Angle |
| 160° Horizontal, 160° Vertical |
| 8:5 |
| Widescreen |
| 500:1 |
|
Display Port HDMI VGA |
| 3x Display Ports |
|
1x Display Port Input 1x HDMI Input 1x VGA Input |
| 12-24V DC [Terminal Block] |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
| Front IP65 |
| Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
|
CE FCC |
| 407mm x 262mm x 53mm (16.02" x 10.31" x 2.09") |
