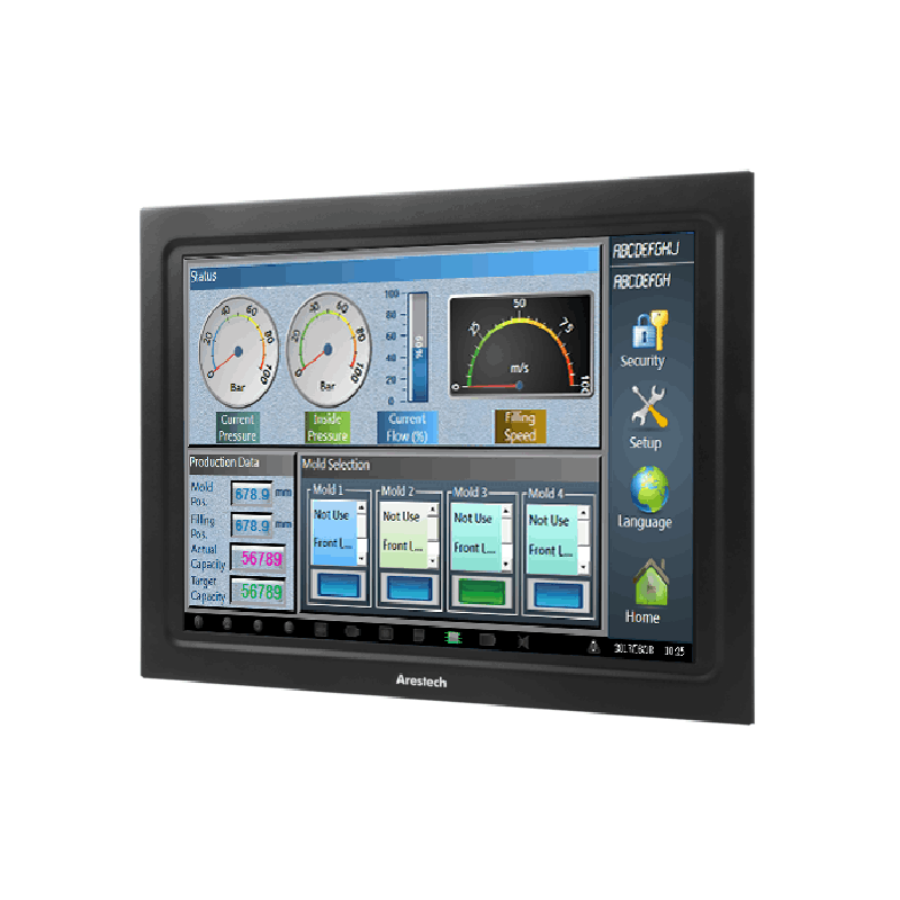

Arestech TPM-3215
Things Embedded are an official Arestech UK distributor for supplying the TPM-3215R.
Available in 2 Variants
| Overview |
|---|
| Brand & Model |
| Display |
| Display Size |
| Display |
| Display Resolution |
| Touch Technology |
| Touch Controller |
| Brightness |
| Brightness |
| Viewing Angle |
| Aspect Ratio |
| Format |
| Contrast |
| Display Inputs |
| Number of Display Inputs |
| Video Inputs |
| Power |
| Power Input |
| Environmental Conditions |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Ingress Protection |
| Ingress Protection |
| Certification |
| Mechanical Properties |
| Dimensions |
| Arestech TPM-3215R |
| Industrial 15" PCAP Multi-Touch Display |
| 15" |
| 15"[4:3, 1024 x 768, XGA] |
| XGA |
| Resistive |
| 5-Wire Resistive Touch |
| 300 Nits |
| 300 |
| Wide Viewing Angle |
| 160° Horizontal, 160° Vertical |
| 4:3 |
| Standard |
| 600:1 |
| VGA |
| 1x Display Ports |
| 1x VGA Input |
| 12-24V DC [Terminal Block] |
| 0°C to 50°C [32°F to 122°F] |
| Standard Temperature |
| -30°C to 70°C [-22°F to 158°F] |
| 5% - 95% (Non-condensing) |
| IP54 |
| IP54 [Limited dust ingress] |
|
CE FCC |
| 365mm x 291mm x 40mm (14.37" x 11.46" x 1.57") |
| Arestech TPM-3215P |
| Industrial 15" Resistive Touch Display |
| 15" |
| 15"[4:3, 1024 x 768, XGA] |
| XGA |
| PCAP |
| Projective Capacitive Touch |
| 300 Nits |
| 300 |
| Wide Viewing Angle |
| 160° Horizontal, 160° Vertical |
| 4:3 |
| Standard |
| 600:1 |
| VGA |
| 1x Display Ports |
| 1x VGA Input |
| 12-24V DC [Terminal Block] |
| 0°C to 50°C [32°F to 122°F] |
| Standard Temperature |
| -30°C to 70°C [-22°F to 158°F] |
| 5% - 95% (Non-condensing) |
| IP54 |
| IP54 [Limited dust ingress] |
|
CE FCC |
| 365mm x 291mm x 40mm (14.37" x 11.46" x 1.57") |
