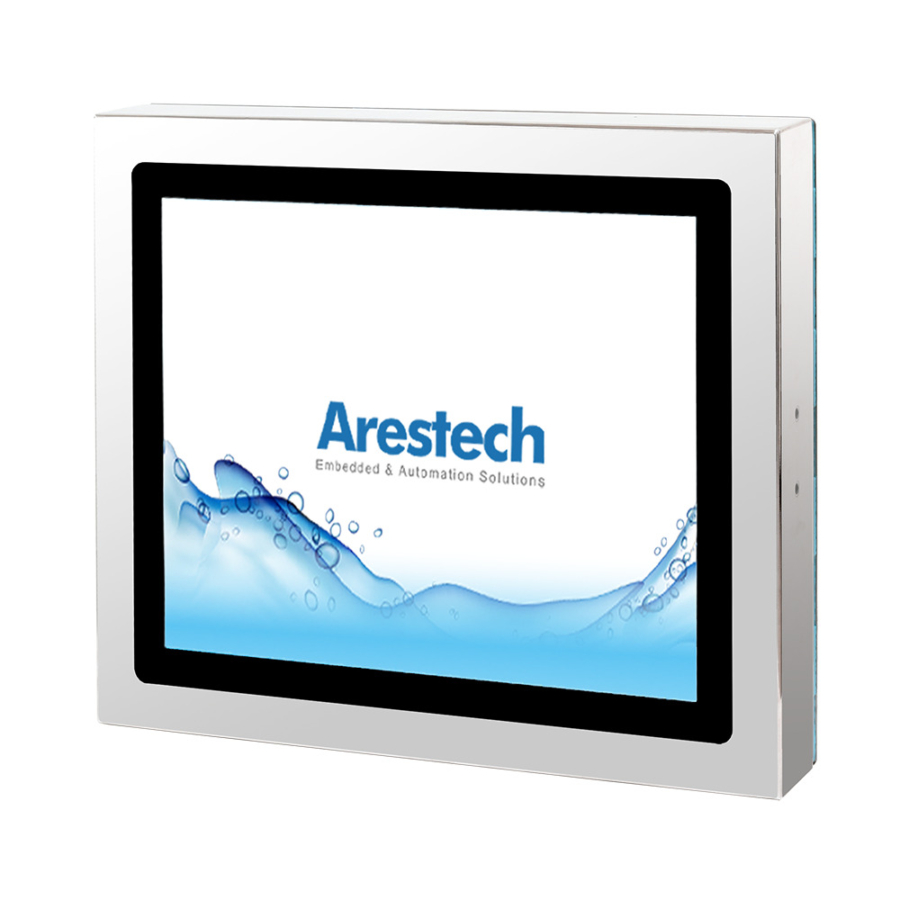

Arestech PPC-Z193
Things Embedded are an official Arestech UK distributor and can supply the PPC-Z193 fully configured and imaged.
Available in 2 Variants
| Overview |
|---|
| Brand & Model |
| Sub Categories |
| Display |
| Display Size |
| Display |
| Display Resolution |
| Touch Technology |
| Touch Controller |
| Brightness |
| Brightness |
| Viewing Angle |
| Aspect Ratio |
| Format |
| Contrast |
| Performance |
| Memory Capacity |
| Memory Slots |
| Memory Type |
| Operating Software |
| Processor |
| Processor Series |
| Processor Models |
| Memory |
| BIOS |
| Operating System |
| Graphics |
| Display Outputs |
| Display Port Type |
| I/O |
| Ethernet |
| Ethernet Connector Type |
| Ethernet Speed |
| LAN Controllers |
| USB |
| USB Connector Type |
| USB Generation |
| Serial |
| Serial Connector Type |
| Serial Protocol |
| Expansion |
| M.2 |
| M.2 Key Support |
| M.2 Signal Support |
| M.2 Slot Size |
| mPCIe |
| mPCIe Support |
| mPCIe Slot Size |
| Storage |
| Number of Storage Bays |
| Storage Interface |
| Storage |
| Power |
| Power Input |
| Power Support Modes |
| Environmental Conditions |
| Thermal Dissipation |
| Thermal Dissipation |
| Operating Temperature |
| Operating Temperature |
| Storage Temperature |
| Humidity |
| Ingress Protection |
| Ingress Protection |
| Certification |
| Mechanical Properties |
| Chassis Material |
| Weight |
| Chassis Material |
| Dimensions |
| Arestech PPC-Z193R-B6A1 |
| 19" Waterproof 316 Grade Stainless Steel Resistive Touch HMI |
| Arestech PPC-Z Series |
| 19" |
| 19"[5:4, 1280 x 1024, SXGA] |
| SXGA |
| Resistive |
| 5-Wire Resistive Touch |
| 350 Nits |
| 350 |
| Wide Viewing Angle |
| 170° Horizontal, 160° Vertical |
| 5:4 |
| Standard |
| 1000:1 |
| 8GB |
| 2 |
| DDR3L |
|
Linux Windows |
|
Intel Pentium Pentium N Series Apollo Lake |
| Pentium N Series Apollo Lake |
| N4200 |
| 2x DDR3L 1866MHz SO-DIMM Slot, 8GB |
| UEFI |
|
Linux Windows 10 |
| 1x VGA |
| VGA |
| 2x Ethernet Ports |
| M12 |
| 2 x GbE LAN [M12] |
| GbE |
|
Intel i211AT Intel i219V |
| 3x USB Ports |
| M12 |
|
USB2 USB3 |
|
1 x USB 2.0 [M12] 2 x USB 3.0 [M12] |
| 2x Serial Ports |
| M12 |
|
RS-232 RS-422 RS-485 |
|
1 x RS232 [M12] 1 x RS232/422/485 [M12] |
| 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4/SATA] [2242] |
| M-Key |
|
PCIe SATA |
| 2242 |
| 1x mPCIe Slots |
| 1 x mPCIe [PCIe/USB] |
|
PCIe USB |
| Full-Size |
| 1 |
| M.2 SSD |
| 1x M.2 SSD |
| 9-36V DC Input, M12 |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
IP66 IP69K |
|
IP66 [Dustproof, Protection against powerful water jets spraying from any direction] IP69K [Dustproof, Protection against close range, high temperature and high pressure water jets] |
|
CE FCC |
| Stainless Steel |
| 10 Kg (22 Lbs) |
| 316 Grade Stainless Steel |
| 499mm x 420mm x 67mm (19.65" x 16.54" x 2.64") |
| Arestech PPC-Z193P-B6A1 |
| 19" Waterproof 316 Grade Stainless Steel PCAP Touch Computer |
| Arestech PPC-Z Series |
| 19" |
| 19"[5:4, 1280 x 1024, SXGA] |
| SXGA |
| PCAP |
| Projective Capacitive Touch |
| 350 Nits |
| 350 |
| Wide Viewing Angle |
| 170° Horizontal, 160° Vertical |
| 5:4 |
| Standard |
| 1000:1 |
| 8GB |
| 2 |
| DDR3L |
|
Linux Windows |
|
Intel Pentium Pentium N Series Apollo Lake |
| Pentium N Series Apollo Lake |
| N4200 |
| 2x DDR3L 1866MHz SO-DIMM Slot, 8GB |
| UEFI |
|
Linux Windows 10 |
| 1x VGA |
| VGA |
| 2x Ethernet Ports |
| M12 |
| 2 x GbE LAN [M12] |
| GbE |
|
Intel i211AT Intel i219V |
| 3x USB Ports |
| M12 |
|
USB2 USB3 |
|
1 x USB 2.0 [M12] 2 x USB 3.0 [M12] |
| 2x Serial Ports |
| M12 |
|
RS-232 RS-422 RS-485 |
|
1 x RS232 [M12] 1 x RS232/422/485 [M12] |
| 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4/SATA] [2242] |
| M-Key |
|
PCIe SATA |
| 2242 |
| 1x mPCIe Slots |
| 1 x mPCIe [PCIe/USB] |
|
PCIe USB |
| Full-Size |
| 1 |
| M.2 SSD |
| 1x M.2 SSD |
| 9-36V DC Input, M12 |
|
AT: PWR on Input ATX: Press Button to Power |
| Fanless Passively Cooled Chassis |
| Fanless |
| -20°C to 60°C [-4°F to 147°F] |
| Wide Temperature |
| -40°C to 85°C [-40°F to 185°F] |
| 5% - 95% (Non-condensing) |
|
IP66 IP69K |
|
IP66 [Dustproof, Protection against powerful water jets spraying from any direction] IP69K [Dustproof, Protection against close range, high temperature and high pressure water jets] |
|
CE FCC |
| Stainless Steel |
| 10 Kg (22 Lbs) |
| 316 Grade Stainless Steel |
| 499mm x 420mm x 67mm (19.65" x 16.54" x 2.64") |
