Things Embedded are an official Arestech UK distributor for supplying the TPM-3619PH.
| Overview | |
|---|---|
| Brand & Model | Arestech TPM-3619PH-B6A1 |

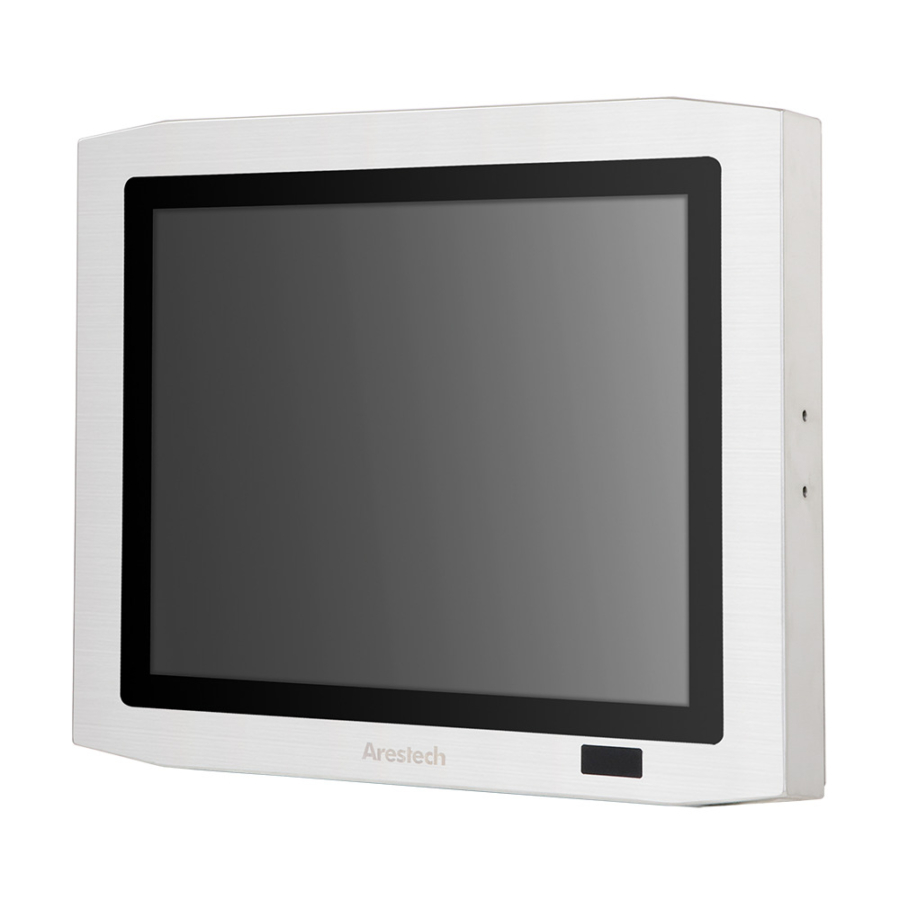

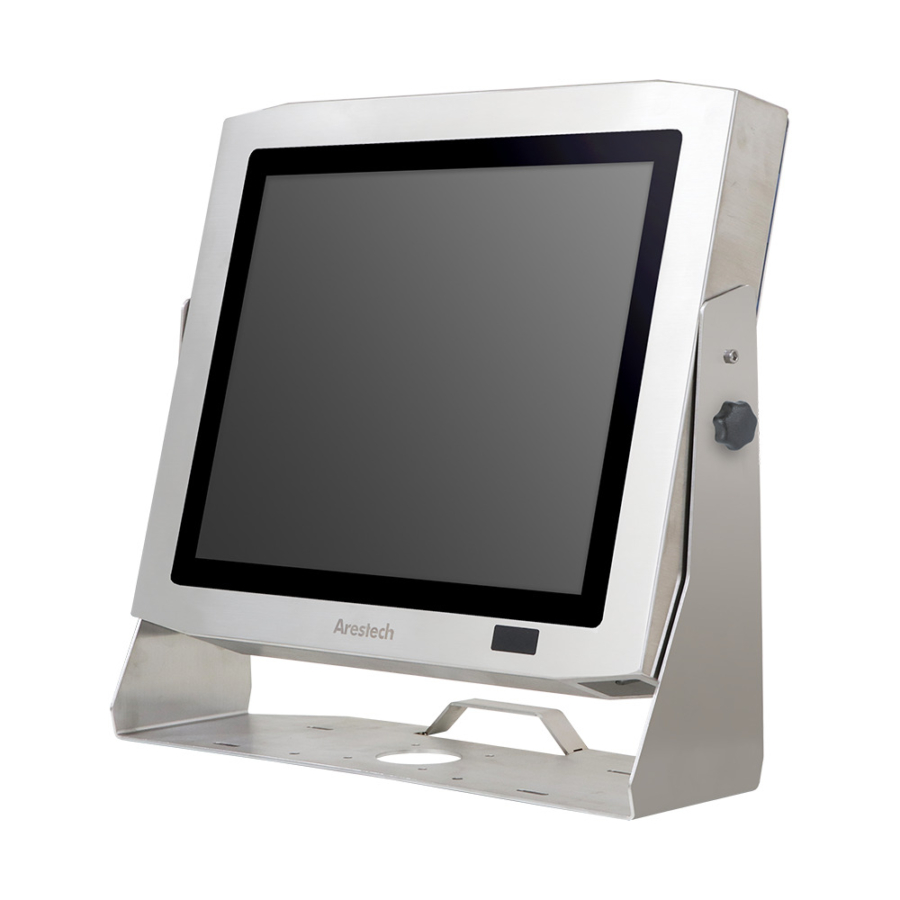

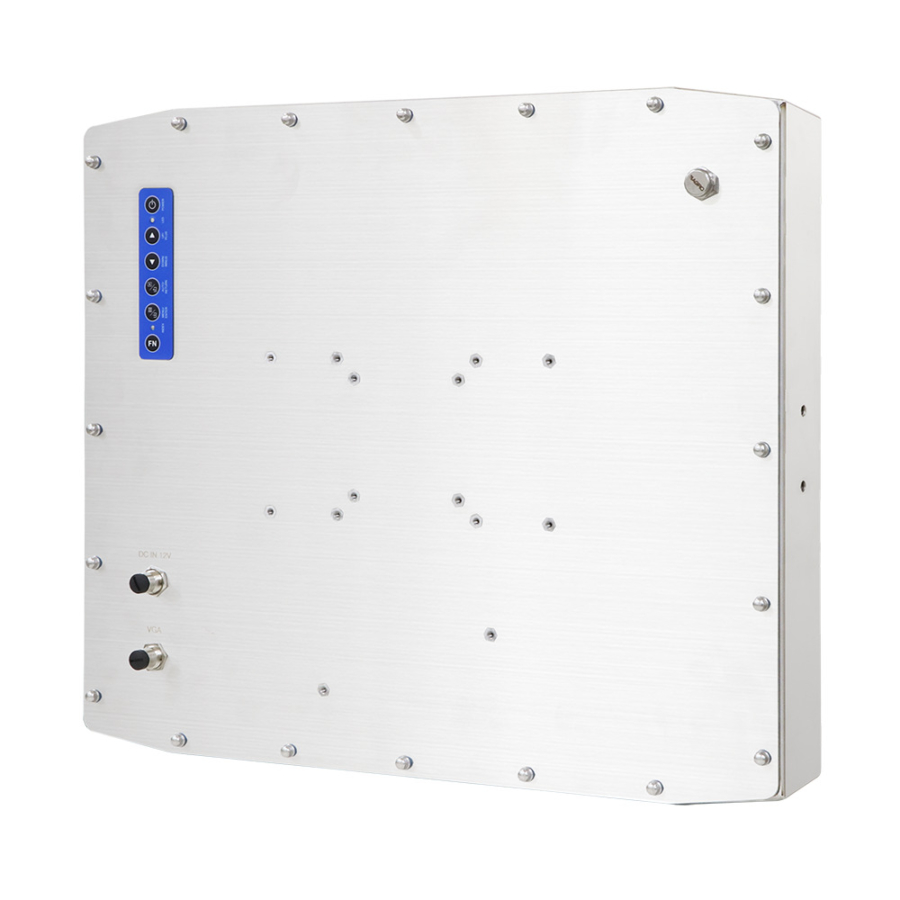

| 19" Full IP66 Stainless Steel Industrial Wireless Display | |
| Features | Fanless Industrial Rugged Waterproof |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Touch Controller | Projective Capacitive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 1x VGA Input 1x Wireless |
| Power | |
| Power Input | 12V DC [M12] |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Operating Temperature | -10°C to 50°C [14°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 147°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | IP66 [Dustproof, Protection against powerful water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 9.81 Kg (21.58 Lbs) |
| Chassis Material | 316 Grade Stainless Steel |
| Dimensions | 499mm x 431mm x 67mm (19.65" x 16.97" x 2.64") |
